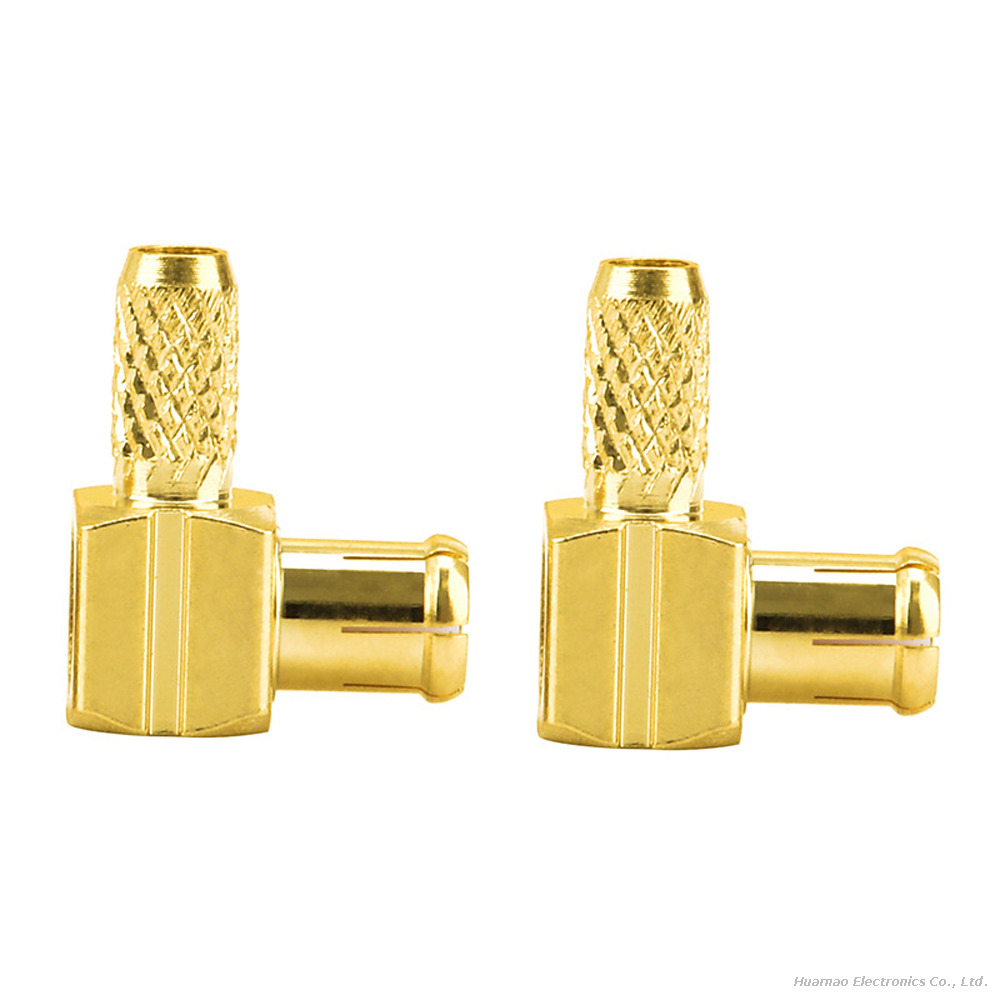

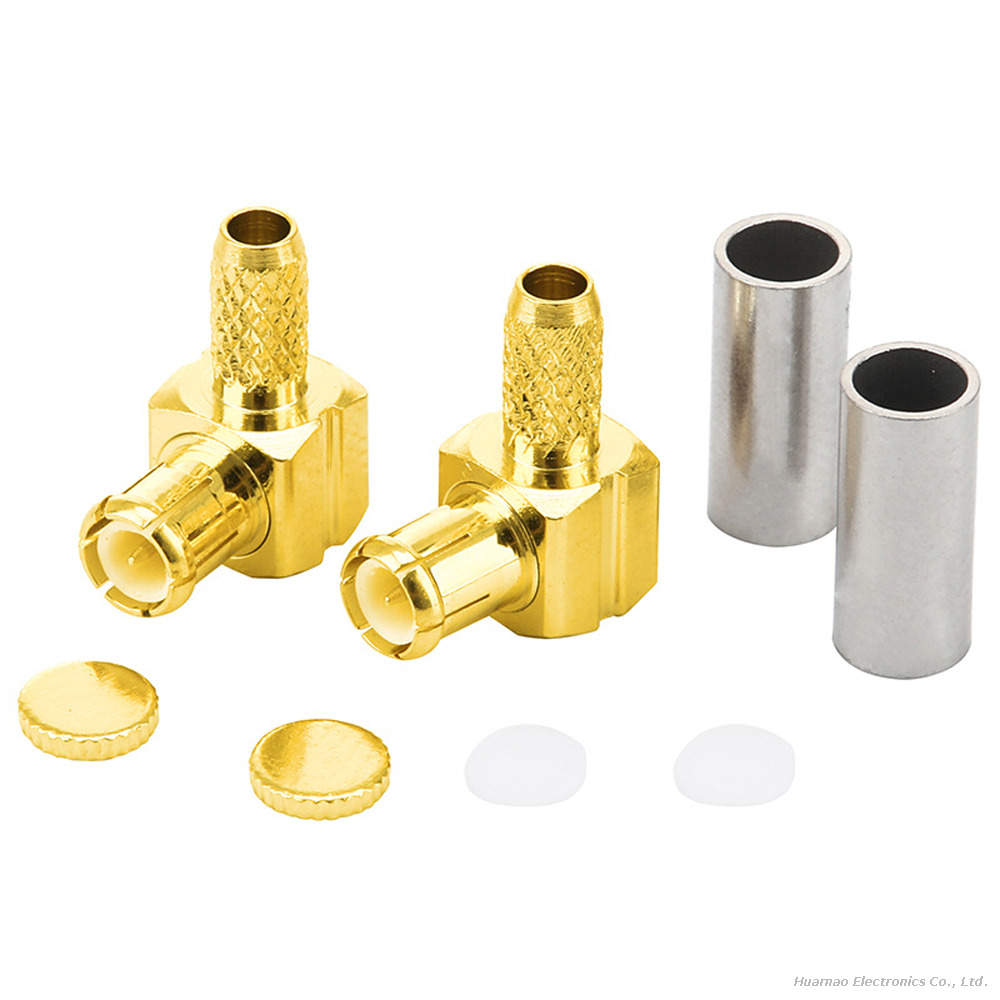

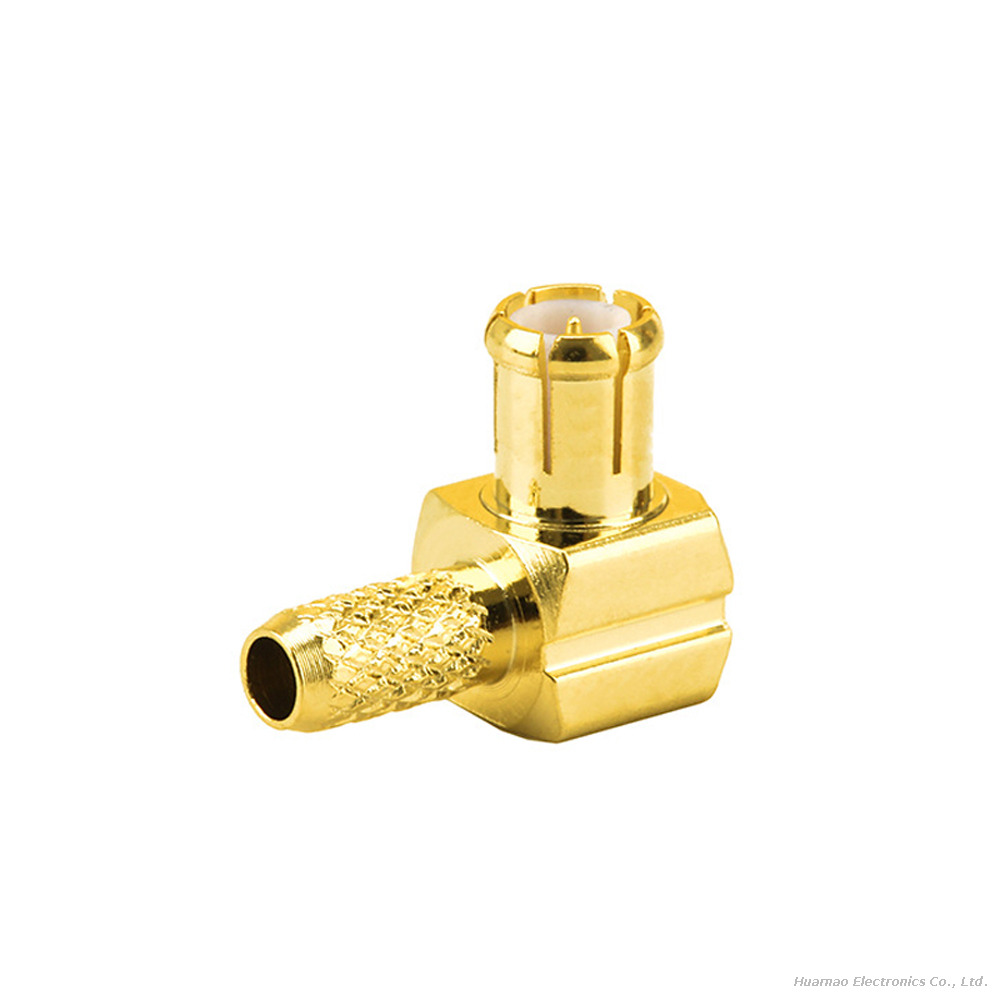

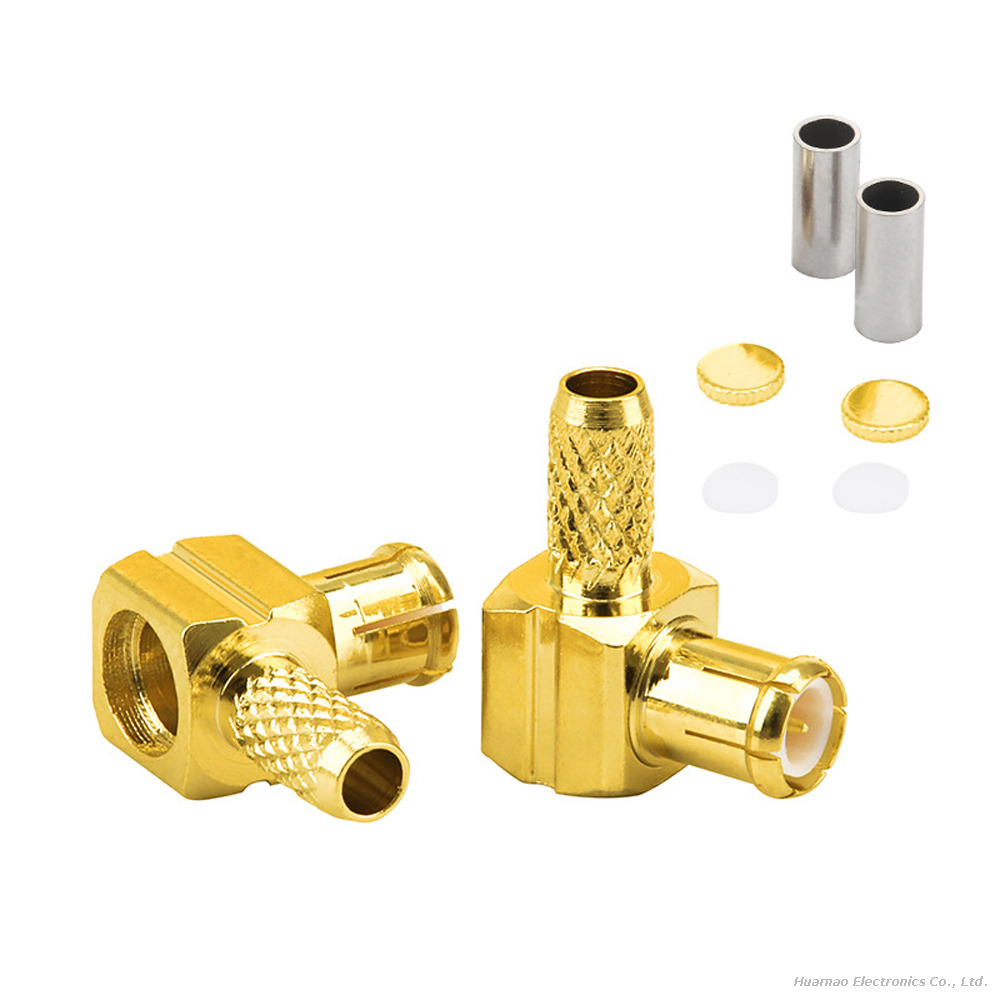

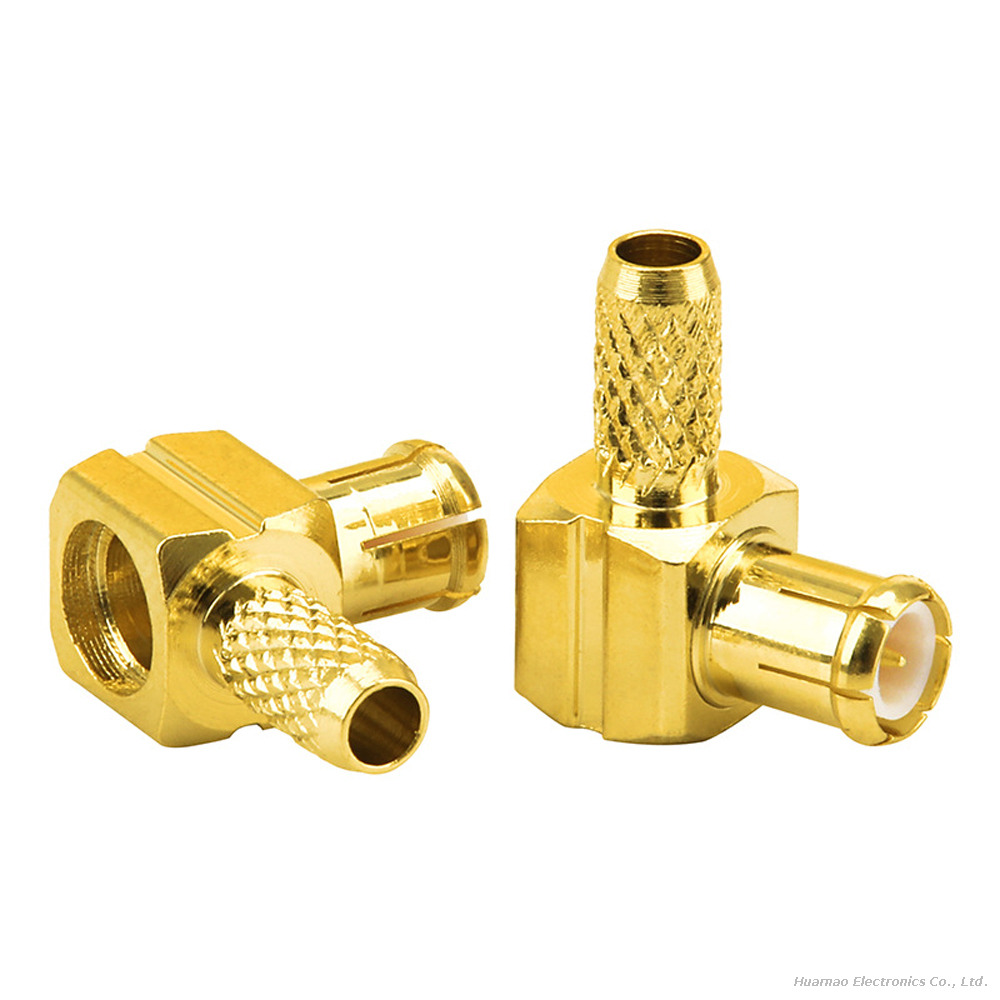

This MCX-JW-1.5 radio frequency coaxial connector is a 90-degree right angle elbow male connector with inner pin design. It adopts crimp connection method and is specially designed for soldering and crimping with RG316 coaxial cable. It provides reliable high-frequency signal connection for wireless antenna and RF electronic equipment.
Product Features
Made of high-quality copper alloy with precision electroplating treatment, the connector features oxidation resistance, corrosion resistance and excellent conductivity. The 90° bent structure perfectly adapts to narrow installation space and corner wiring requirements.
Crimp-type installation ensures firm connection, effective anti-loosening and anti-vibration, avoiding poor contact and signal interruption. With superior shielding performance and low signal attenuation, it can stably transmit high-frequency signals and resist external electromagnetic interference.
Small and lightweight design, easy to install and assemble, suitable for mass production and daily maintenance replacement.
Application Scope
Widely used in wireless communication modules, GPS positioning equipment, Bluetooth devices, wireless routers, walkie-talkies, testing instruments, automotive electronics, intelligent terminal equipment and mini wireless products.
It is the ideal matching connector for RG316 antenna lines, RF circuit connection, equipment modification and wire harness customization
