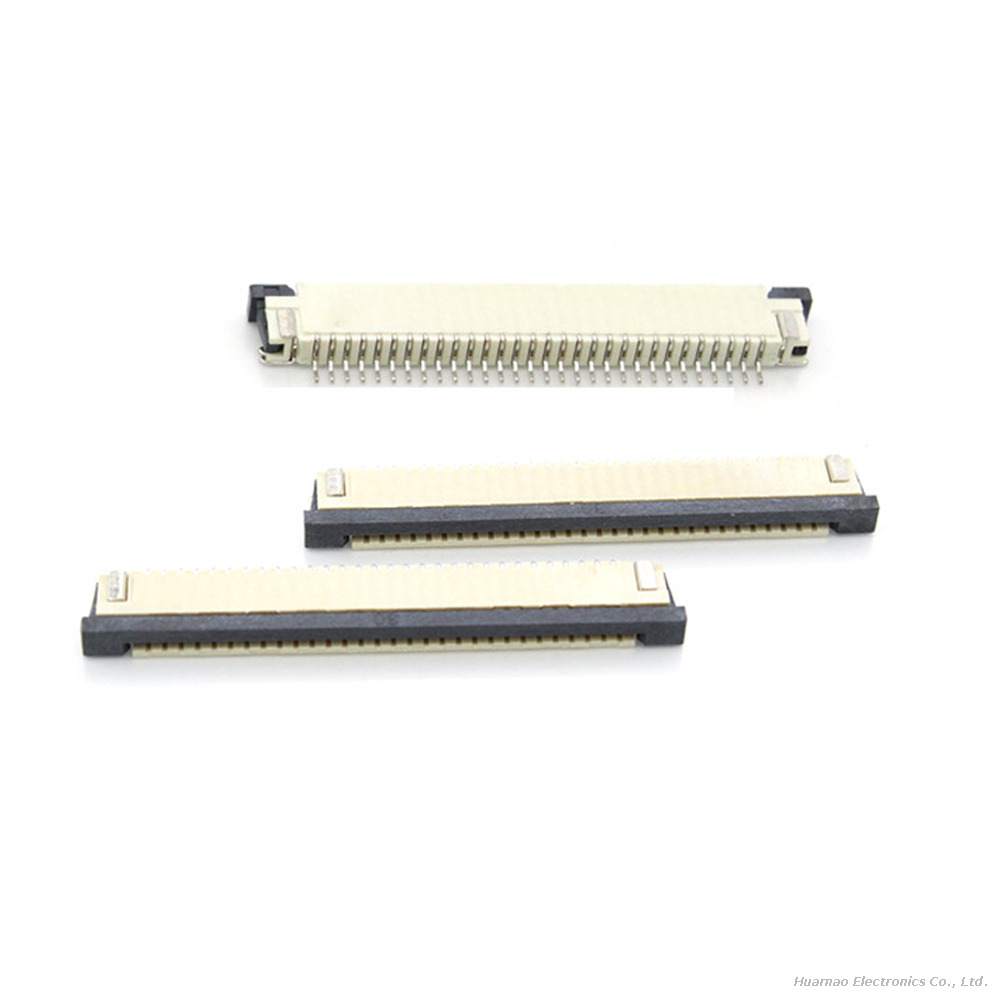

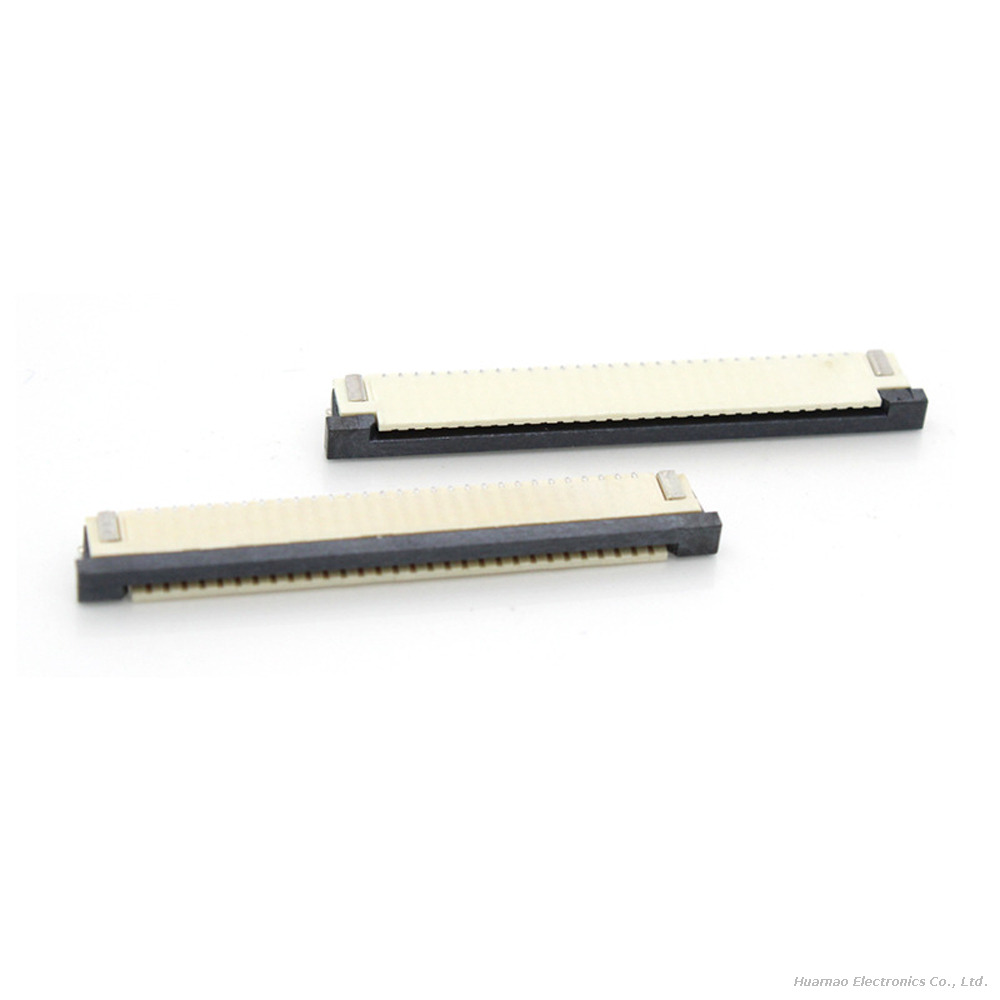

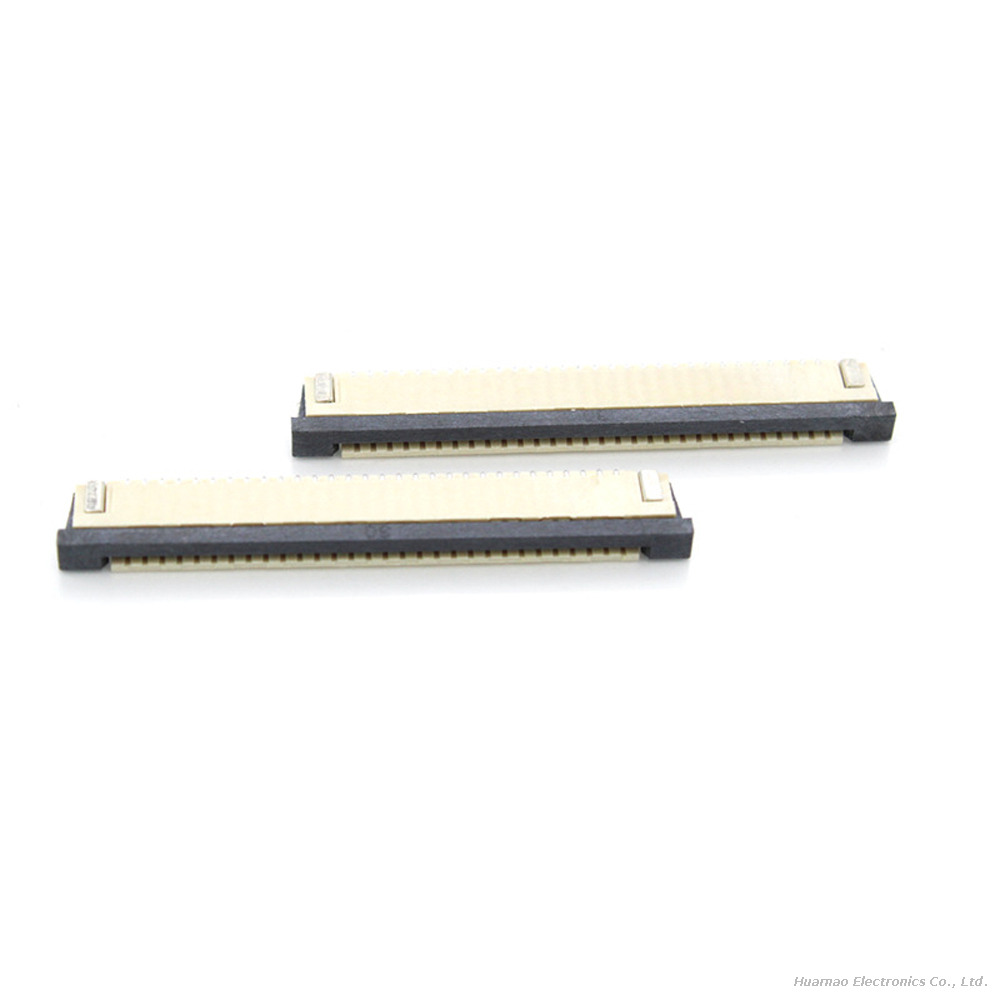

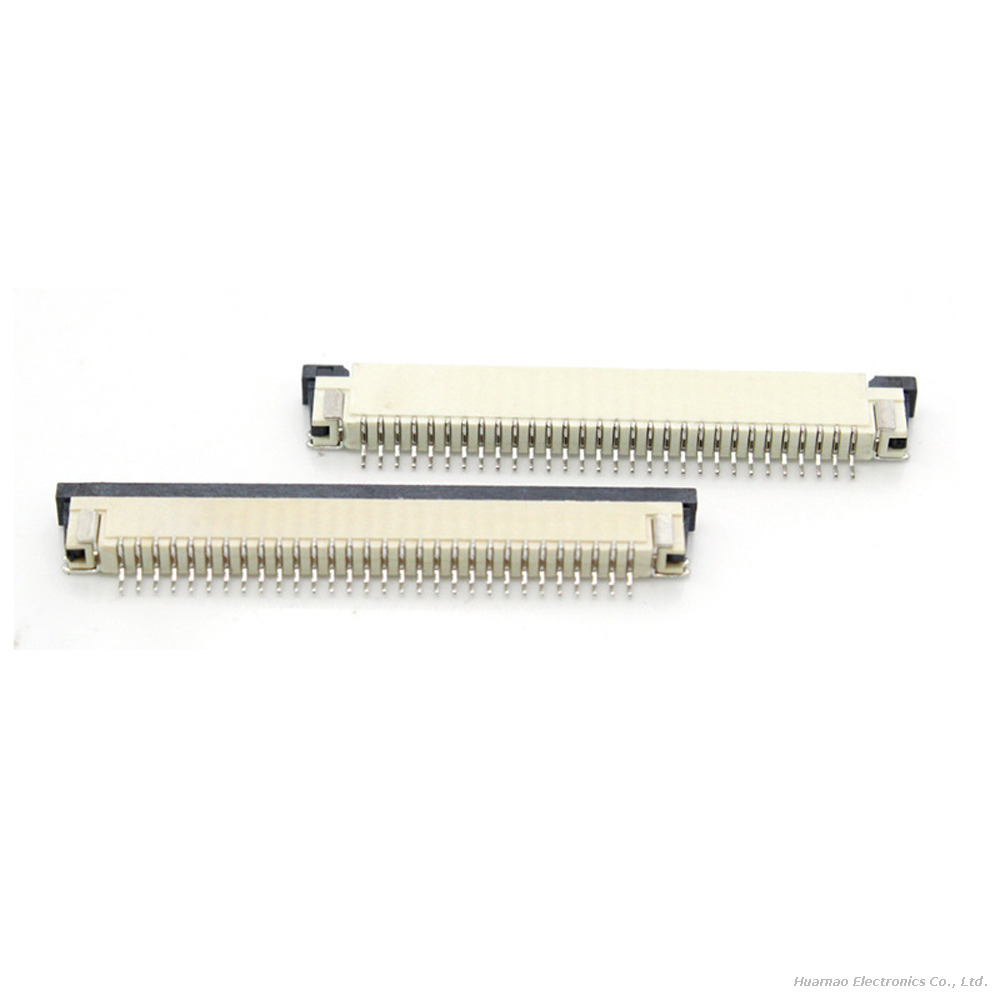

FPC FFC 1.0mm Pitch Connector of 4-50Pin Vertical Header

Technical Specifications:

    •    Frequency: High frequency, suitable for demanding electronic applications.

    •    Supported Cards: Dual-in-one configuration.

    •    Interface Type: ZIF (Zero Insertion Force), ensures easy installation and removal with minimal force.

    •    Pitch: 0.5mm, offering a compact and efficient connection.

    •    Certifications: CE, ISO 9001, and RoHS certified.

    •    Applications: Suitable for FPC, audio, and video equipment.

    •    Gender: Female.

    •    Contact Height: Customizable to meet specific application needs.

    •    Impedance: Customizable to ensure optimal signal transmission.

    •    Voltage: Rated voltage of 50V AC/DC.

    •    Housing: Made of UL 94V-0 LCP plastic for excellent insulation and durability.

    •    Terminal Structure: Molded terminal design.

    •    Terminal Material: Copper alloy for superior conductivity and corrosion resistance.

    •    Packaging: Available in cartons or tube/tape & reel packaging.

    •    Dimensions: Refer to the product specification diagram for precise fitting.

    •    Color: Available in white.

    •    Origin: China.

    •    Circuits: Supports 4-60 circuits.

    •    Plating: Terminals available with all matte tin or gold flashing overall.

    •    Temperature Range: -25°C to 85°C.

    •    Contact Resistance: ≤ 0.03Ω.

    •    Insulation Resistance: ≥ 500MΩ.

    •    Current Rating: 0.5A.

    •    Withstand Voltage: 500VAC (rms).

    •    Lock-Housing: Available with or without logo.

Custom Attributes:

    1.    Connector Type: FPC type.

    2.    Mounting Type: Surface mount.

    3.    Contact Material: Gold-plated contacts for enhanced conductivity and corrosion resistance.

    4.    Operating Temperature Range: -25°C to 85°C.

    5.    Insulation Resistance: Ensures reliable electrical insulation.

Additional Features:

    •    Durability: Designed to withstand frequent use and harsh conditions.

    •    Versatility: Suitable for consumer electronics, industrial equipment, and automotive systems.

    •    Ease of Use: Simplifies installation and maintenance.

    •    High Performance: Reliable performance in high-speed and high-density applications.

This FPC Connector offers high-quality, reliable connectivity solutions for electronic devices, ensuring optimal performance and durability in a compact design.
