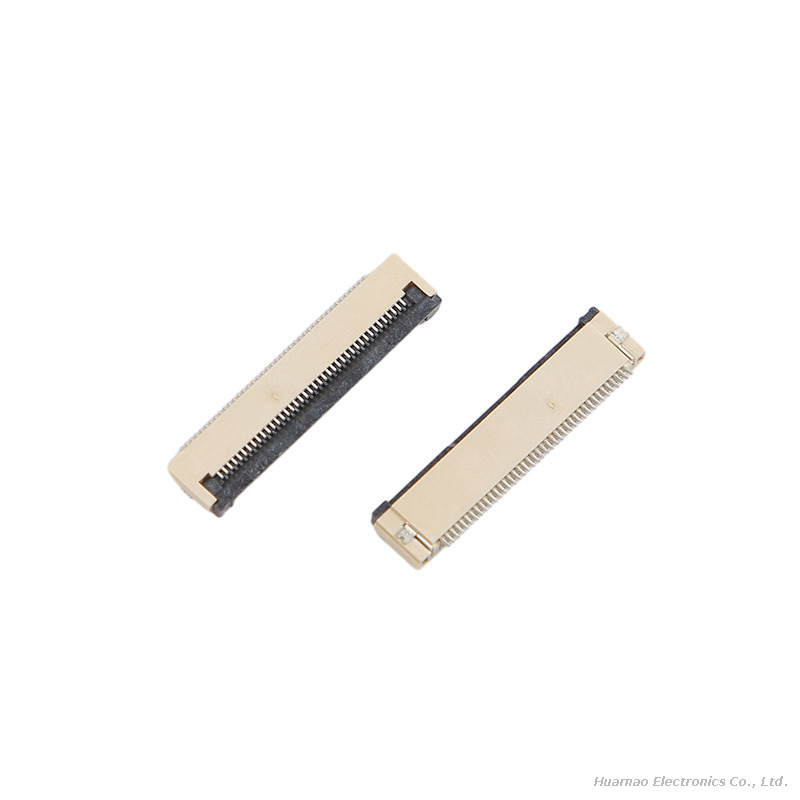

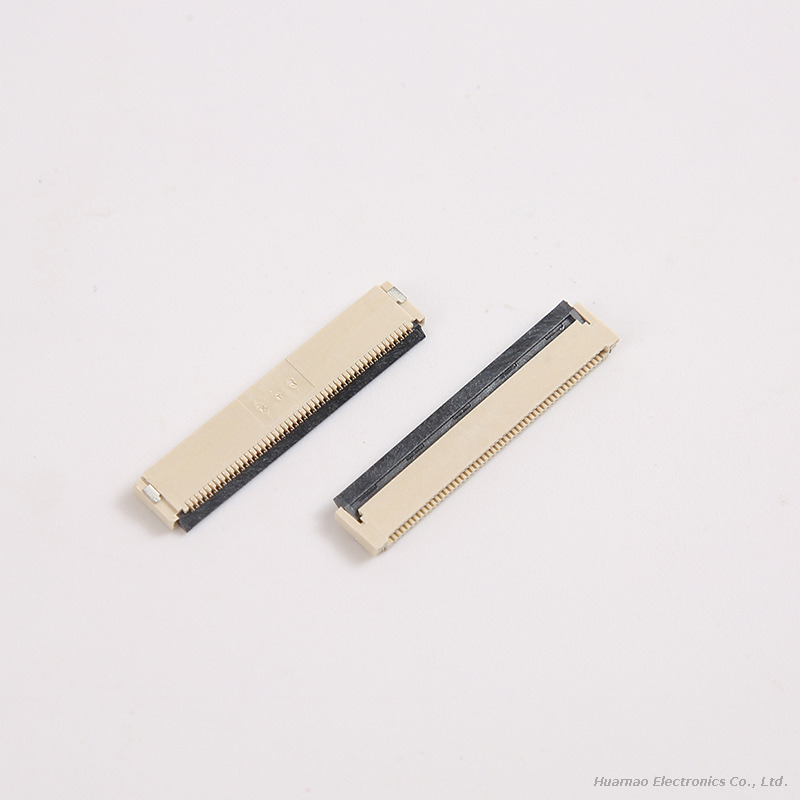

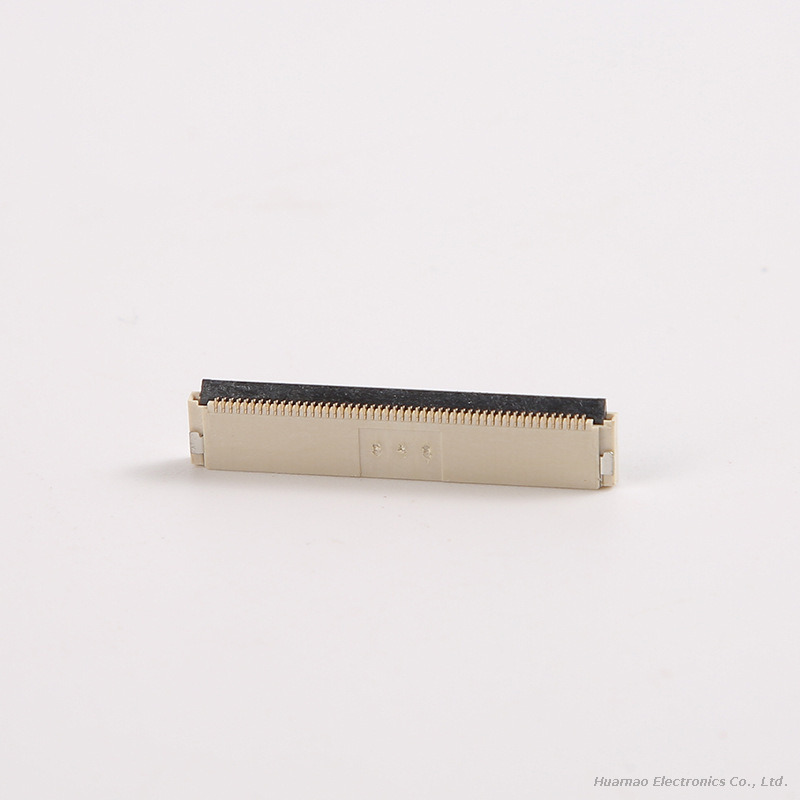

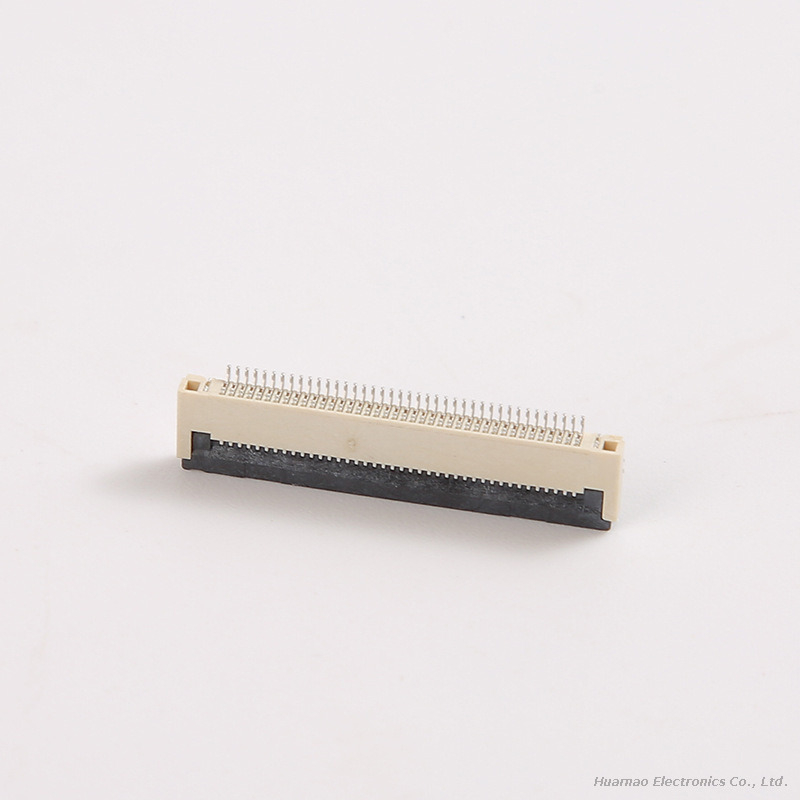

FPC05060-08100 FPC 0.5mm XP SMT H=2.0mm FFC Connector

Key Features & Benefits

• Ultra-Fine 0.5mm Pitch: Enables high-density interconnections, perfect for miniaturized PCBs and slim device designs.

• Top- or Bottom-Contact Configurations: Offers design flexibility for various routing and assembly requirements.

• Robust Actuation Systems:

• ZIF (Zero Insertion Force): Ensures easy cable insertion and maximum reliability, preventing damage to fragile cables.

• LIF (Low Insertion Force): A lower-profile alternative for applications where height is a critical constraint.

• Flip-Lock / Hinge-Lock: Provides a secure, tactile lock with a simple flipping motion.

• Surface-Mount (SMT) Design: Optimized for automated PCB assembly, ensuring high manufacturing throughput and consistent quality.

• High-Temperature Resistance: Compatible with standard IR reflow soldering processes.

• Sturdy Housing: Manufactured from heat-resistant LCP (Liquid Crystal Polymer) material for excellent mechanical strength and solderability.

Applications

Ideal for a wide range of consumer and industrial electronics where space and weight are critical:

• Smartphones and Tablets

• Digital Cameras and Camcorders

• Drones and UAVs

• Portable Medical Devices

• LCD & OLED Displays

• Laptop and Notebook Computers

• Wearable Technology

Why Choose Our 0.5mm FPC/FFC Connectors?

• Proven Reliability: Rigorous testing for durability, mating cycles, and environmental stress ensures long-term performance.

• Global Supply Chain: Consistent quality and reliable delivery to meet your production schedules.

• Expert Support: Our engineering team is ready to assist with design-in support and customization options.
