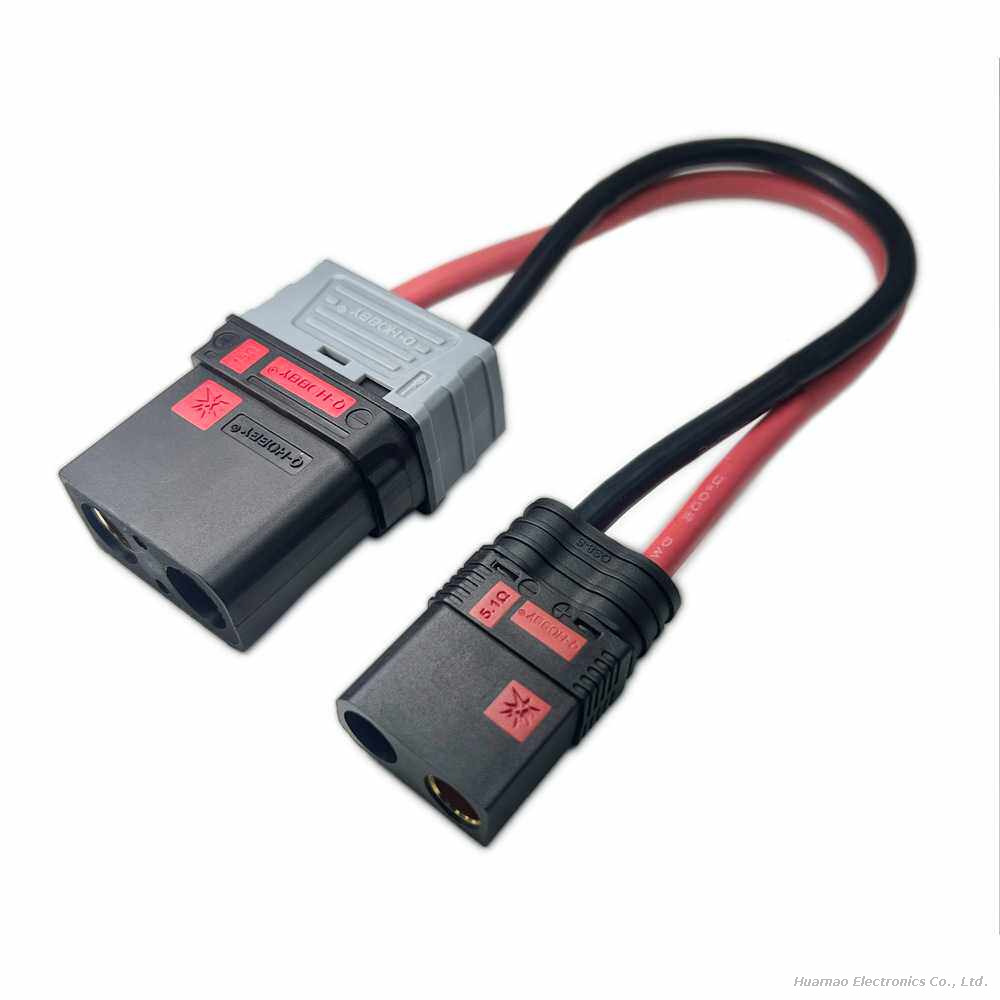

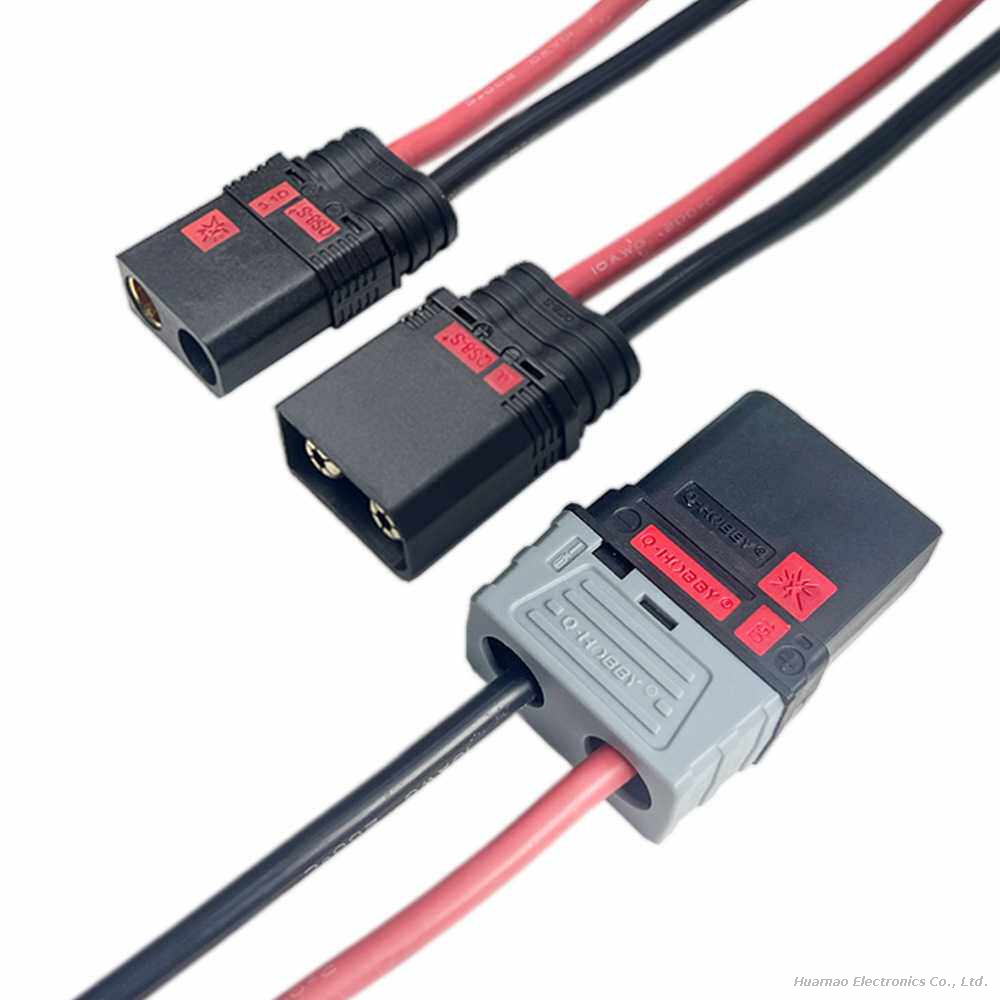

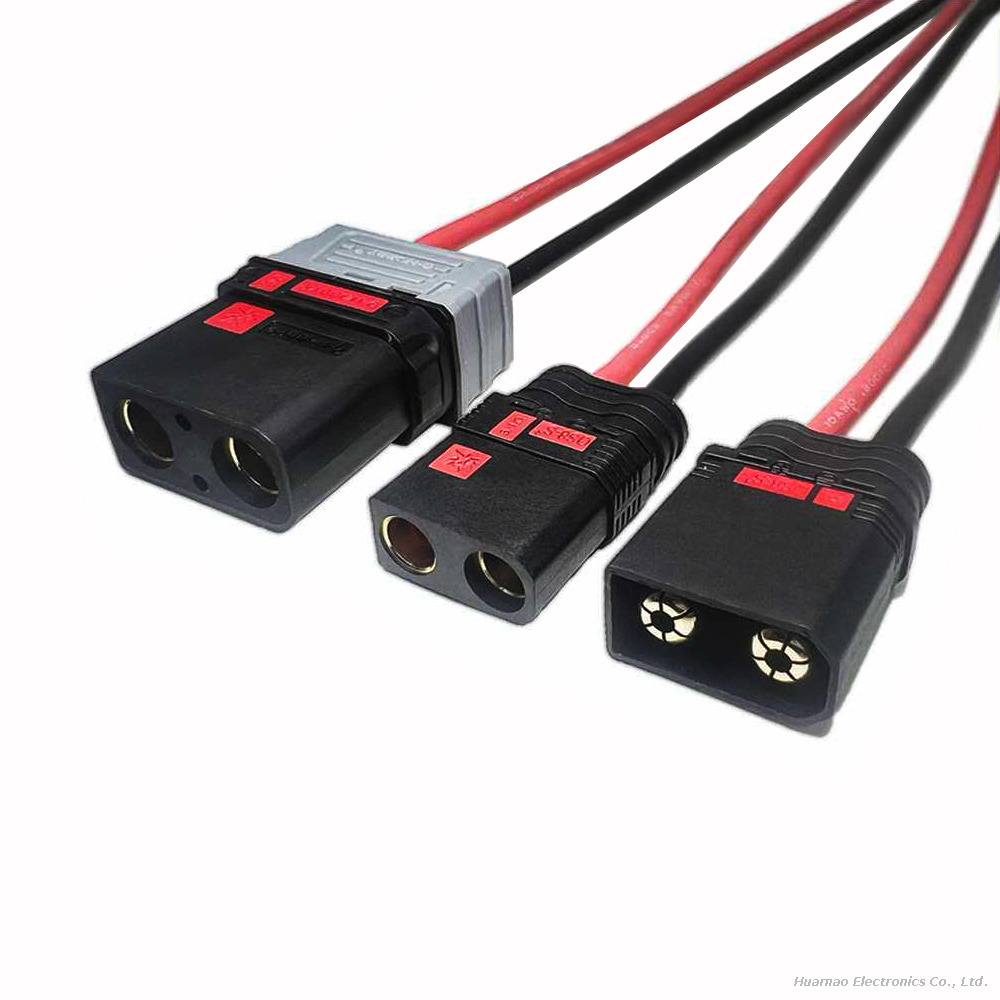

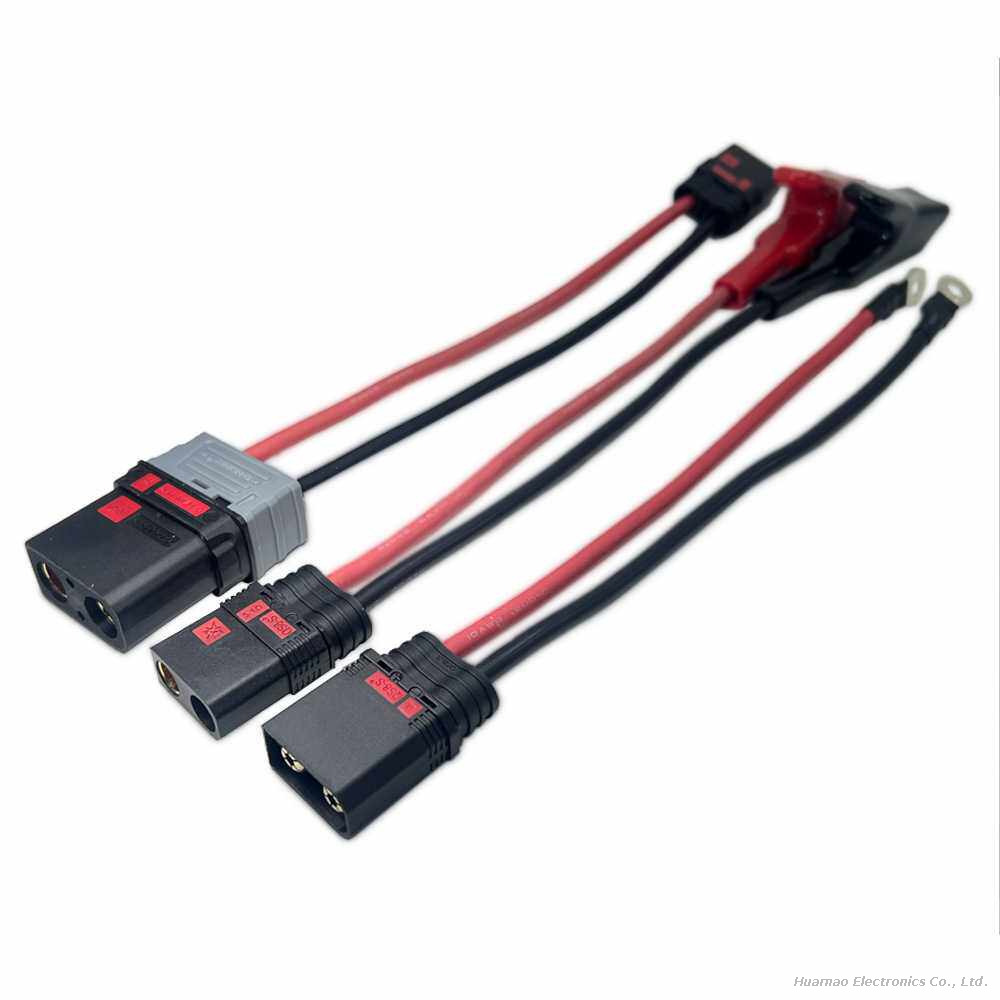

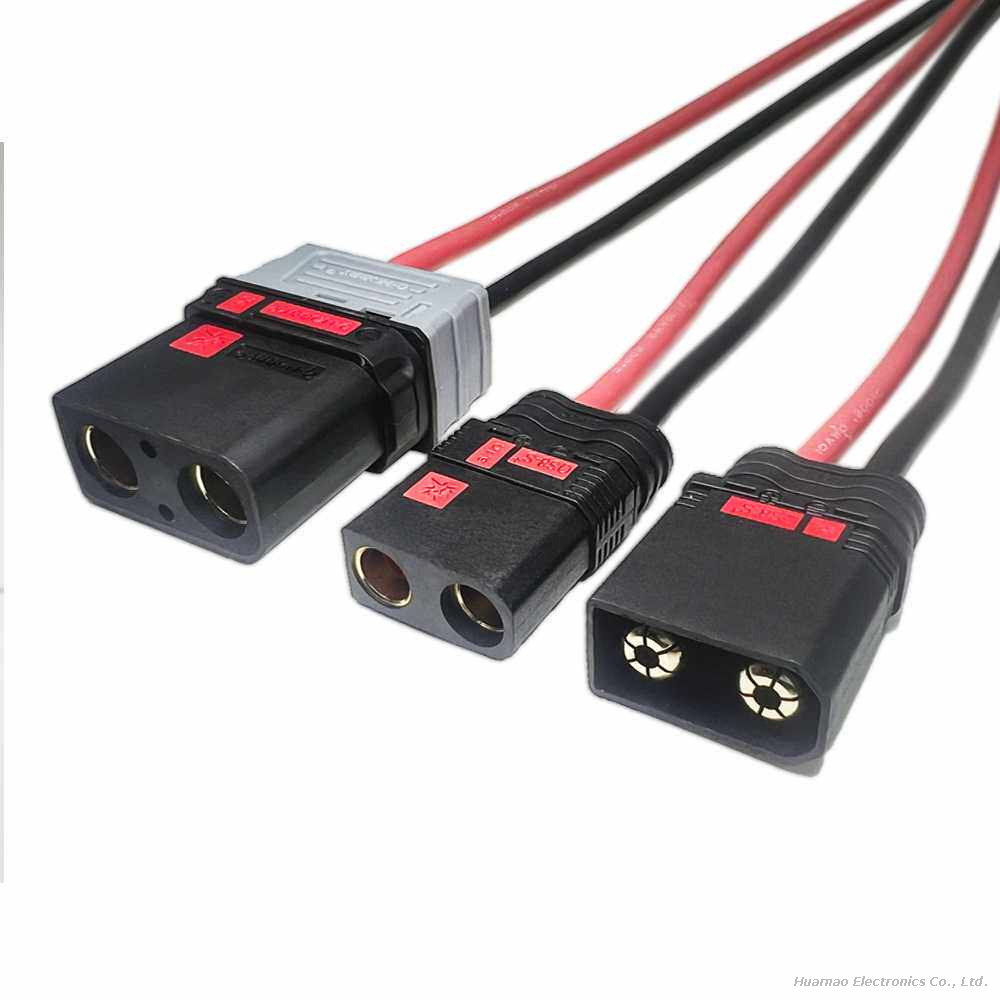

Customization QS7L QS8-S QS9L QS10P QS12 Anti-Ignition Connecting Cable Electric Vehicle High Current Plug

Customization QS7L QS8-S QS9L QS10P QS12 Anti-Ignition Connecting Cable Electric Vehicle High Current Plug

Product Wire:QS Series Anti-lgnition

Available Models:QS7L,QS8-S,QS9L,QS10P,QS12

Cable Gauge:6AWG-16AWG(customizable based on current requirements)

Model:
QS7L QS8-S QS9L QS10P QS12
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

QS7L QS8-S QS9L QS10P QS12 battery connector cable QS series anti-spark power connector QS anti-spark connector QS wiring harness QS12 wiring harness assembly QS9L power connection wire QS7L anti-spark connector QS7L heavy duty power connector cable

Product Description

Our Customizable QS Series Anti-Ignition Connecting Cable is a premium high-current power solution designed specifically for electric vehicles, battery packs, and energy storage systems. Available in QS7L, QS8-S, QS9L, QS10P, and QS12 models, this robust cable assembly features advanced anti-ignition technology and superior current handling capabilities, ensuring safe and reliable power transmission in demanding EV applications. Engineered with UL94 V-0 flame-retardant materials and gold-plated contacts, it meets international safety standards and provides long-lasting performance in harsh operating environments.

Core Features

✅ Advanced Anti-Ignition Technology

Built-in spark-proof design prevents arcing during connection/disconnection, eliminating fire risks

UL94 V-0 flame-retardant housing and insulation resist combustion and self-extinguish quickly

Halogen-free materials for enhanced safety and environmental protection

✅ Superior Current Handling Capability

Rated current: 80A-200A DC (model-dependent)

Rated voltage: 500V DC (QS7/8/9) / 1000V DC (QS10/12)

High-conductivity oxygen-free copper conductors minimize power loss and heat generation

✅ Robust Construction & Durability

Gold-plated phosphor bronze contacts ensure low contact resistance (≤5mΩ) and corrosion resistance

Reinforced strain relief prevents cable damage from bending and pulling

IP66 protection rating (dust-tight and water-resistant) for outdoor and harsh environment use

Operating temperature range: -40°C to +120°C (withstands extreme weather conditions)

≥10,000 insertion cycles for long service life

Application Fields

Electric Vehicles (EVs), Hybrid Electric Vehicles (HEVs)

Battery Energy Storage Systems (BESS)

Electric Forklifts, Golf Carts, and Industrial Vehicles

Solar Power Systems and Inverters

Marine Electric Propulsion Systems

High-Power DC Charging Stations

Customization Options

 Full Customization Service

Cable length: 10cm to 10m (custom cuts available)

Cable gauge: 6AWG to 16AWG (based on current requirements)

Connector orientation: Straight or Right-Angle (for space-constrained installations)

Cable color: Black, Red, Blue, Yellow, or Custom (for easy polarity identification)

Additional features: Strain relief boots, heat shrink tubing, custom labeling
Why Choose Our QS Series EV Cable?
Industry-Leading Safety: Anti-ignition technology eliminates fire hazards common in high-current connections
Perfect Fit: Multiple QS models available to match your exact current and voltage requirements
Reliable Performance: Gold-plated contacts and robust construction ensure consistent power delivery
Custom Solutions: Tailor-made cable assemblies to fit your specific application needs
Competitive Pricing: Factory-direct pricing with no middleman marku
