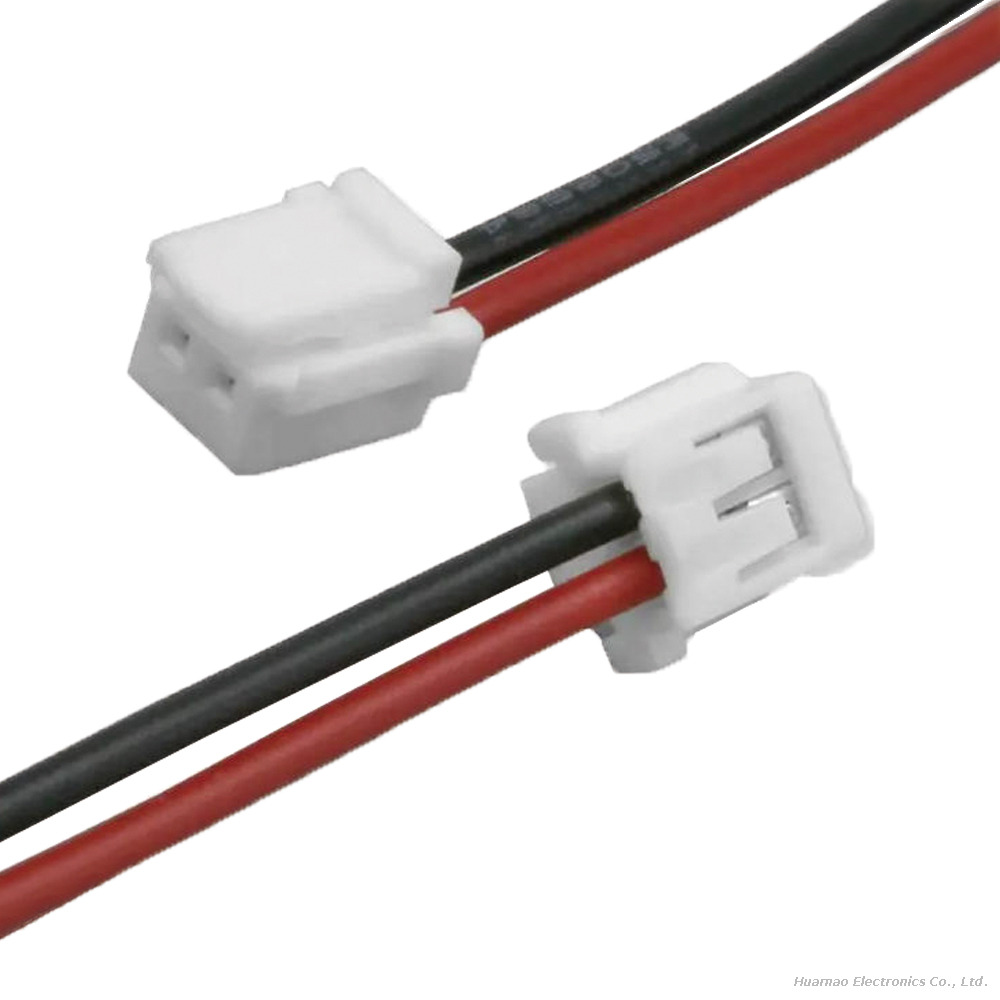

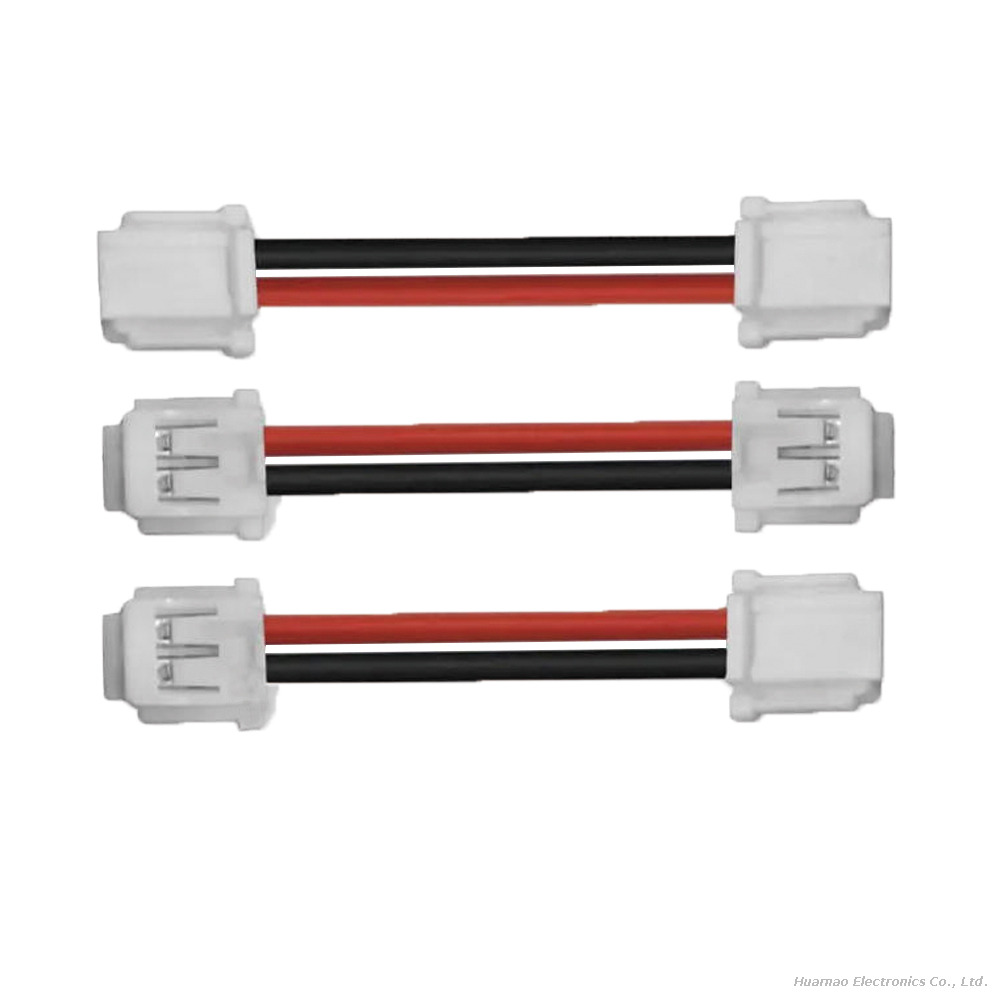

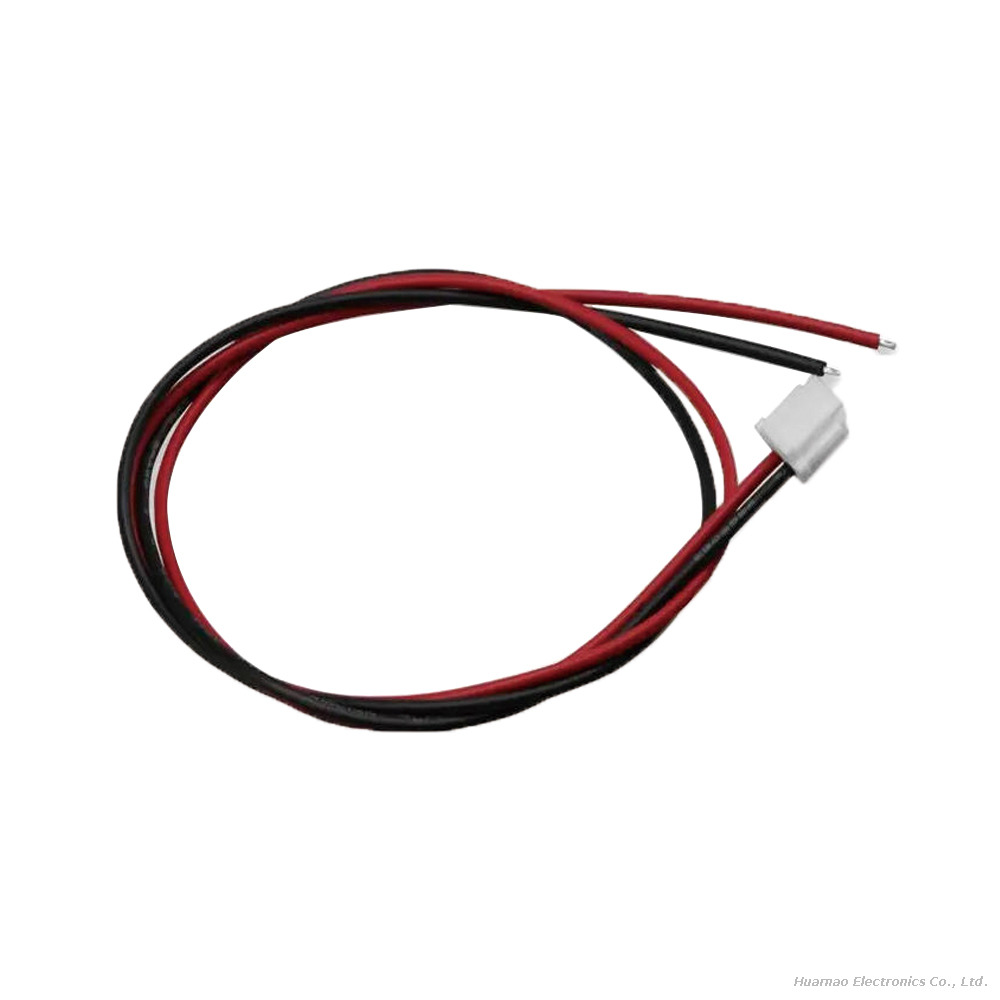

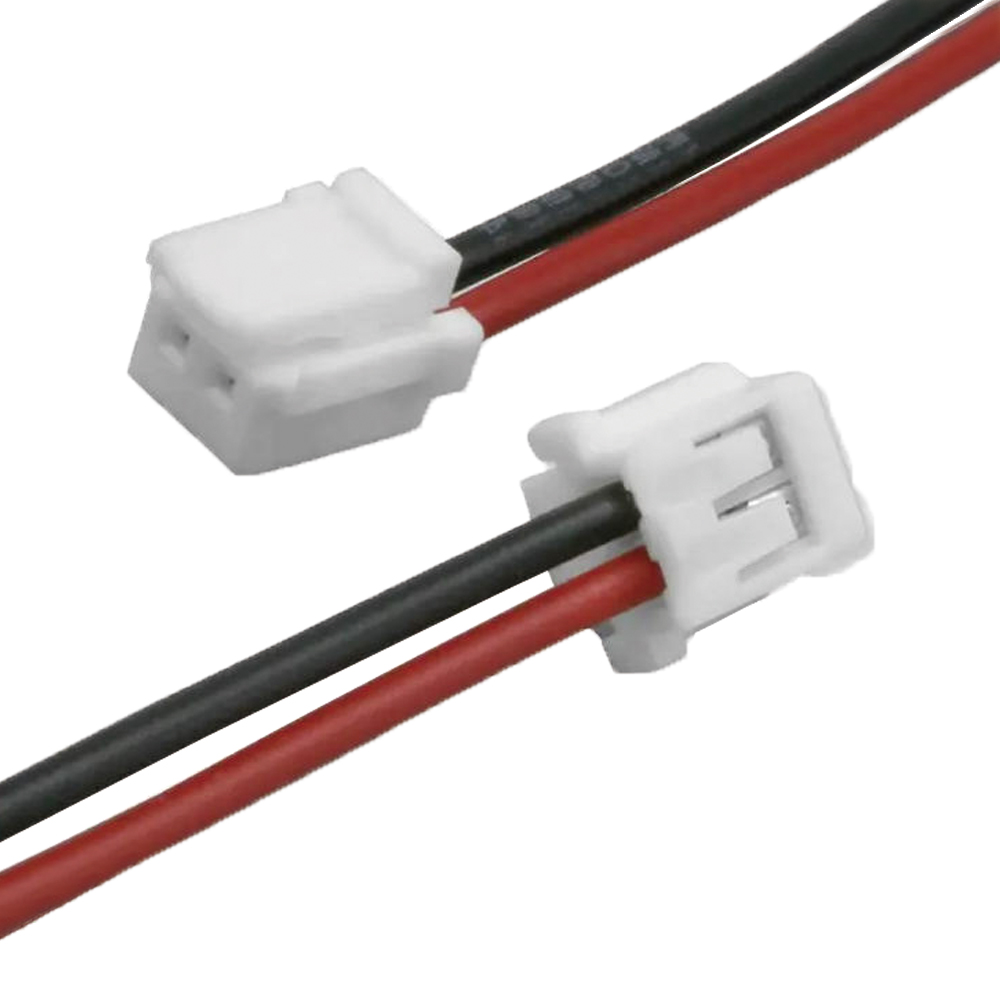

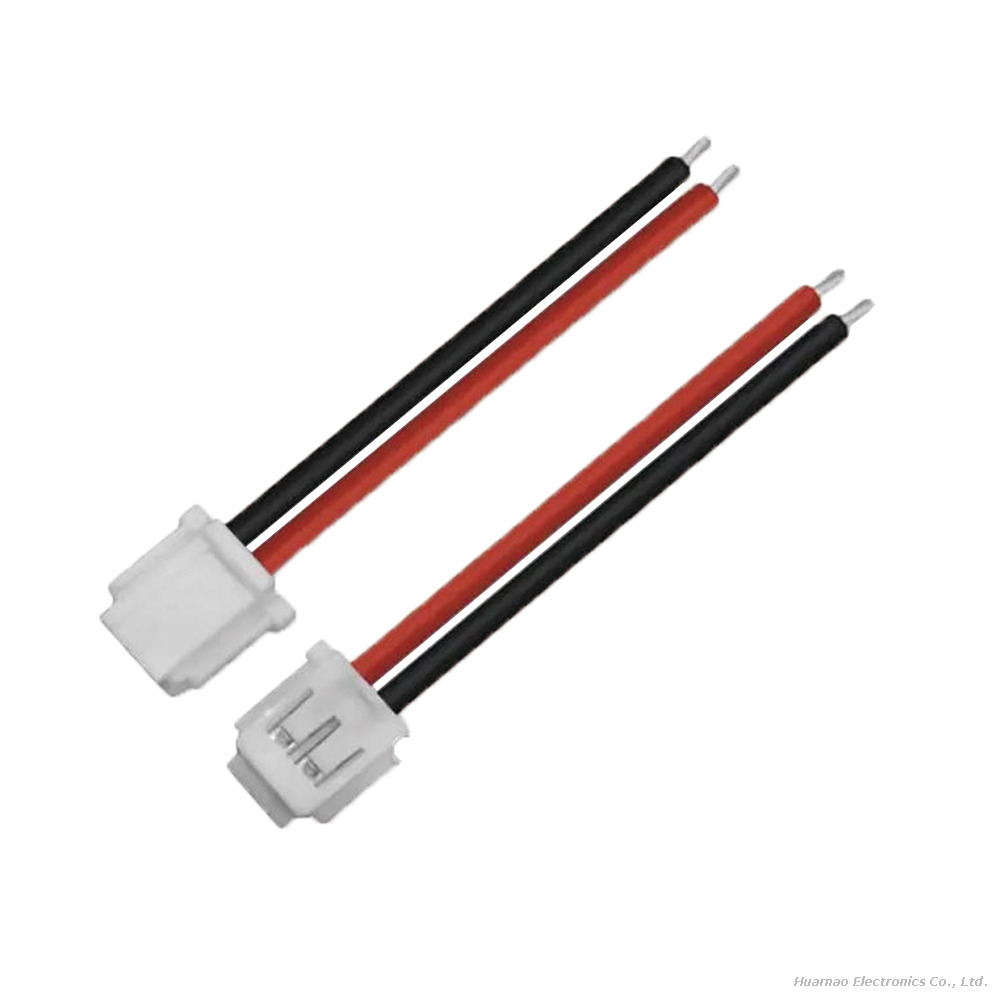

This electrical cable assembly features Molex 35507 Sherlock™ series 2.0mm pitch female crimp terminals paired with UL 1007 red/black 24AWG stranded copper wires, specifically designed for LED screen wire harness applications. It provides reliable power and signal transmission for LED display modules, offering a secure wire-to-board connection with a compact, space-efficient design. The red/black color coding simplifies polarity identification, while the 24AWG wire gauge balances current-carrying capacity and flexibility for easy installation in tight spaces.
Features
Molex 35507 Sherlock™ System: 2.0mm pitch female crimp terminals with secure latch mechanism for vibration-resistant mating and 30+ mating cycles
UL 1007 Wire Construction: Stranded tinned copper conductors for low resistance, corrosion protection, and flexibility; PVC insulation rated for 300V and 80°C operating temperature
24AWG Gauge: Ideal for LED screen applications, supporting up to 2A current per conductor
Red/Black Color Coding: Simplifies polarity identification and circuit tracing in complex LED harnesses
Secure Connection: Polarizing ribs prevent incorrect mating; wide latch area ensures stable retention
RoHS Compliant: Lead-free construction meets global environmental standards
Customizable Lengths: Available in various standard lengths (100mm-1000mm) to fit different LED screen configurations
Easy Termination: Crimp-style connection for fast, reliable assembly without soldering
Applications
LED Display Screens: Indoor/outdoor LED video walls, digital billboards, and signage systems (power distribution and signal transmission between modules)
LED Lighting: Architectural lighting, stage lighting, and decorative lighting systems requiring reliable power connections
Consumer Electronics: LCD/LED TV backlighting, monitor displays, and other visual equipment
Automotive Displays: Dashboard displays, infotainment screens, and interior lighting controls
Industrial Control Panels: HMI displays, status indicator lights, and control system wiring
Commercial Signage: Digital menu boards, retail displays, and information kiosks
