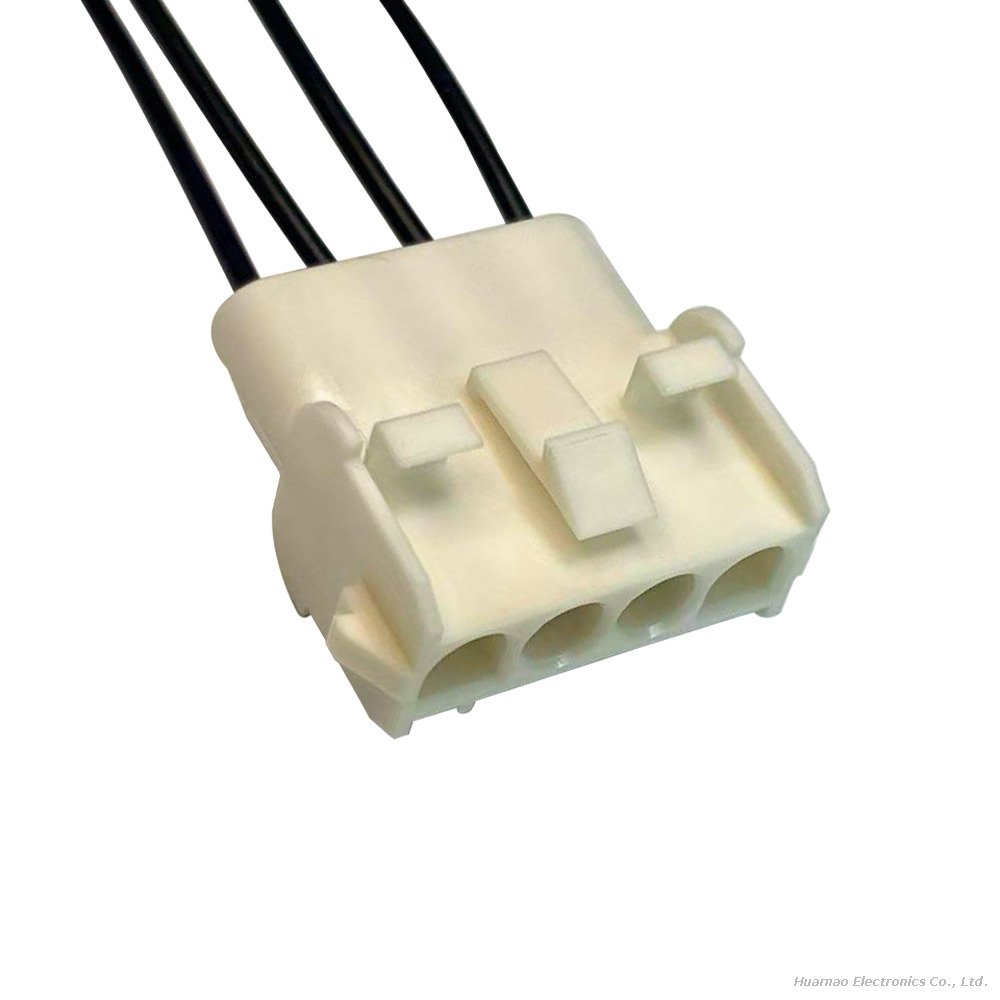

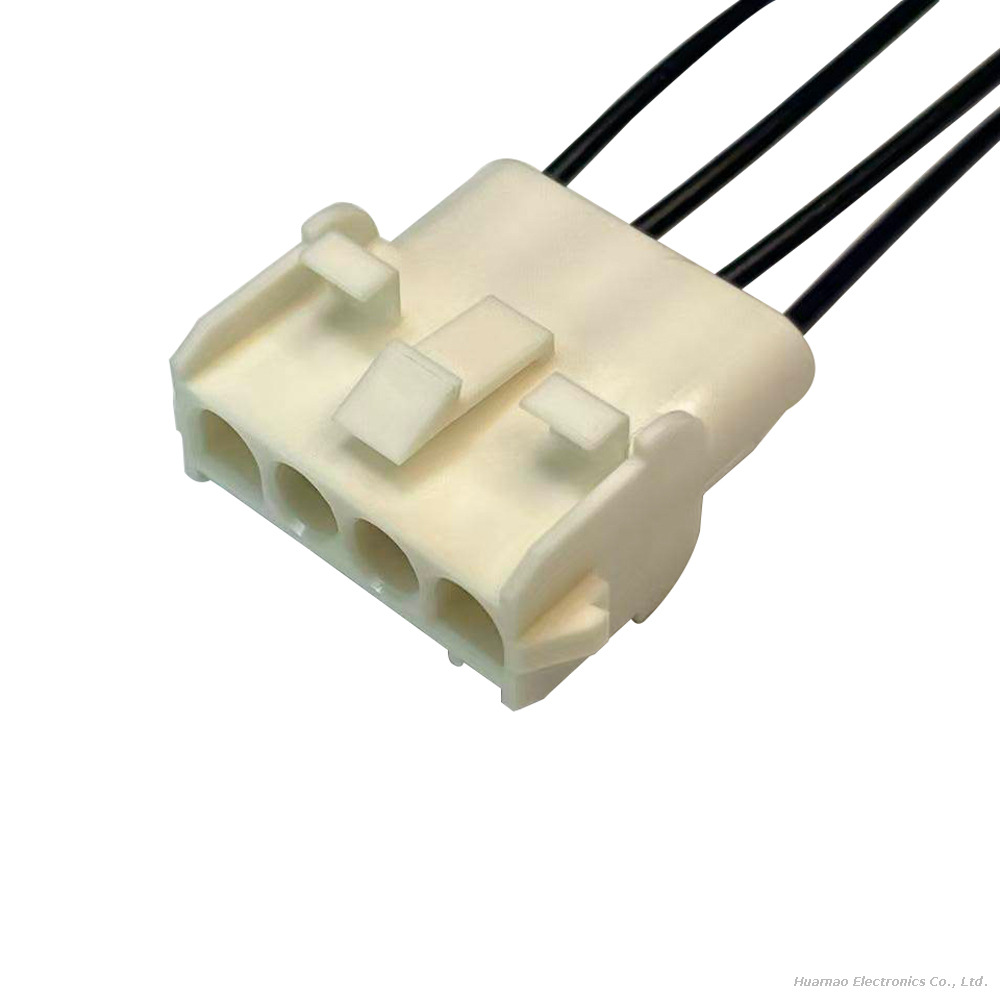

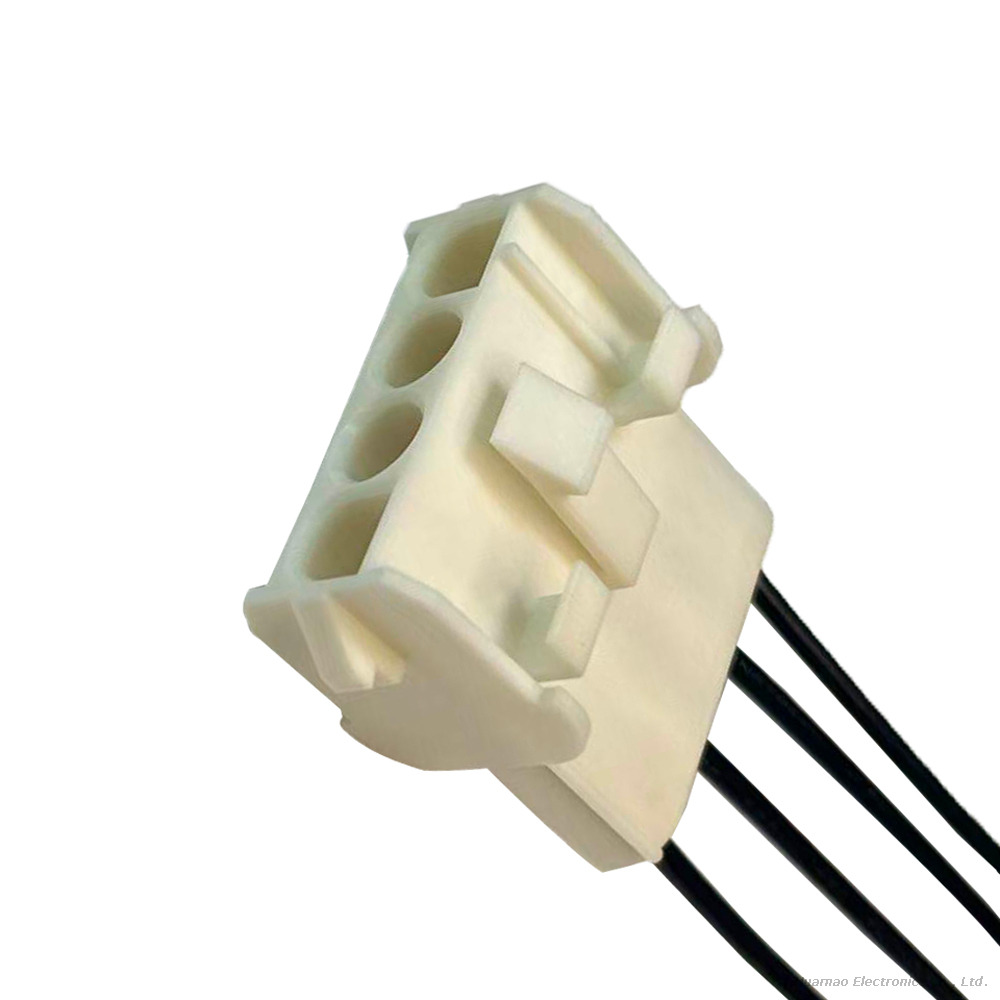

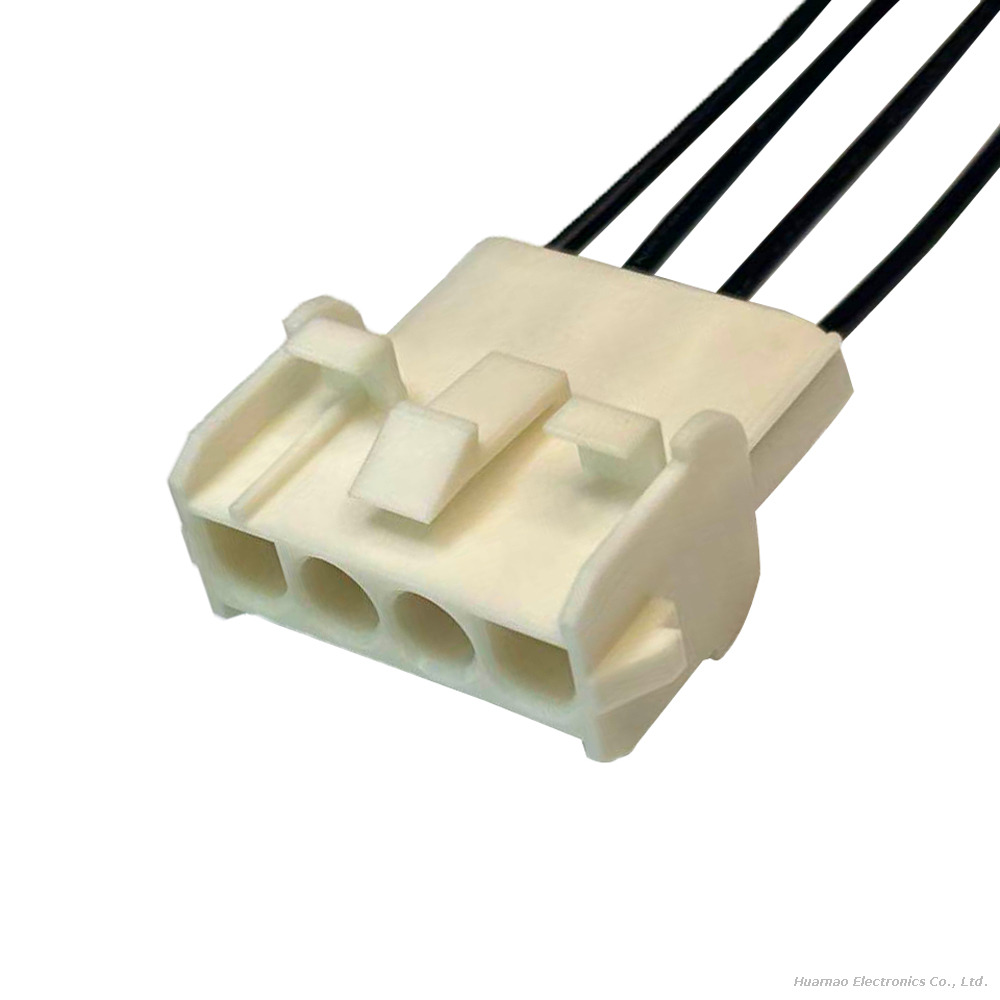

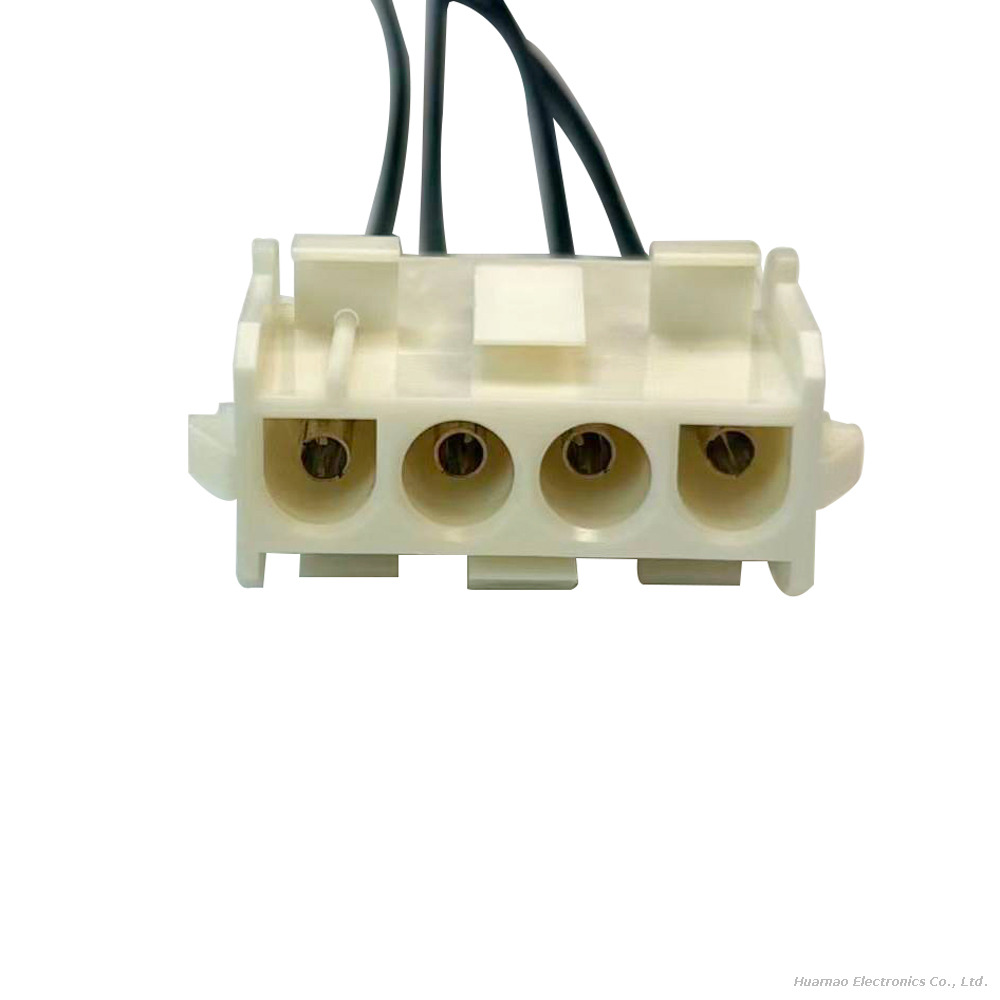

TE Mate-N-Lok 6.35mm Crimp Terminal Wire 350780-1 Connector Cable

TE Mate-N-Lok 6.35mm Crimp Terminal Wire 350780-1 Connector Cable

This heavy-duty wire-to-wire / wire-to-panel crimp wiring harness adopts original TE Connectivity 350780-1 4-position female receptacle housing from Universal MATE-N-LOK series, standard 6.35mm (0.25") large safety single-row pitch, designed for medium-high current power & signal interconnection for household appliances, industrial equipment, power tools and new energy auxiliary control systems. It features integrated positive mating lock, physical anti-mismate polarization ribs, dual-lance crimp terminals, rated up to 19A per circuit / 600V AC/DC, UL94 V-0 flame retardant nylon housing, UL/CSA/VDE triple safety certified, fully RoHS & REACH compliant. We provide full OEM customization of cable length, wire gauge (AWG18~24), wire insulation material (PVC/silicone/TPE), wire color and dual-end connector matching, widely applied for free-hanging and panel-mounted power wiring of white goods, power machinery and automation control equipment.

Model:
350780-1
Brand:
TE

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

TE 350780-1 Connector Cable Mate-N-Lok Connector Cable 6.35mm Crimp Terminal Wire 04P UMNL CAP HSG 403808173 Connector Cable AMP-0-0350780-1 Connector Cable D58278-000 Connector Cable

Product Description

This pre-crimped finished wiring assembly uses complete authentic Universal MATE-N-LOK matched components:

Female Receptacle Housing: 4-circuit single-row crimp cap housing, 6.35mm fixed center pitch, natural white UL94 V-0 nylon, with integrated panel mounting tabs for fixed equipment wall installation
Dedicated Crimp Terminals: MATE-N-LOK tin-plated phosphor bronze dual-lance contacts, two wire size options: AWG18–24 large current terminal & AWG26–30 signal thin wire terminal
Mating Matching Parts: Male plug housing (4P single row plug housing), vertical/right-angle through-hole PCB header series (wire-to-board conversion), optional TPA terminal position assurance lock to prevent terminal back-out
Matching Cable Spec: AWG18~24 multi-strand power wire, customizable PVC, high-temperature silicone or oil-resistant TPE outer insulation, wire OD φ1.6~3.0mm

Universal MATE-N-LOK is a classic industrial medium-current rectangular connector platform. The 6.35mm ultra-wide pitch provides sufficient creepage and clearance distance between circuits, effectively suppressing high-voltage arc discharge, fully complying with global household appliance and industrial power safety standards. The built-in snap-in positive lock generates obvious tactile feedback after full mating, preventing accidental disconnection caused by equipment vibration, pulling and bumping during long-term operation. Molded polarization key ribs physically block reverse plugging and cross-model mis-mating, eliminating PCB short-circuit burnout risks in mass production assembly wires.

Internal dual-lance terminal retention structure locks crimp contacts firmly inside the housing, with high pull-out resistance to avoid terminal shedding after repeated bending and vibration. The housing reserves panel mounting patch tabs, supporting two installation modes: free-hanging wire-to-wire extension and fixed wire-to-panel wall penetration wiring, adapting diverse equipment structural layout demands. All crimp joints are reinforced with heat-shrink tubing strain relief to avoid wire fracture at bending transition points.

Every finished harness passes strict factory full inspection before shipment: continuity test, terminal pull retention force test, 2000V AC high voltage withstand test, vibration aging test and long-time load temperature rise test. We supply single-end finished cables, male-female inline extension harnesses and cross-type conversion wiring (matched with terminal blocks, aviation plugs) OEM mass customization solutions for home appliance, power tool and industrial automation manufacturers.

Specifications

Receptacle Housing	4Pin single row female cap housing
Connector Series	MATE-N-LOK 6.35mm recrangular power connector
Pitch	6.35mm
Mating Male Housing	4P single row plug housing
Applicable Wire Gauge	AWG18-AWG24 stranded copper power wire
Operating Temperature Range	-55℃ to +105℃
Core Structural Feature	Tactile positive snap lock,anti-reverse polarization ribs
Customizable Services	Custom cable length,wire gauge,PVC/silicone/TPE insulation

Advantages

6.35mm ultra-wide safety pitch high-current design: Larger inter-pin isolation gap than small-pitch connectors, suppress high-voltage arcing, fully meet IEC safety standards for household appliances and industrial power equipment, up to 19A single-pin continuous load capacity.
Dual installation mode compatible housing: Built-in panel mounting tabs support wall fixed wire-to-panel wiring; remove mounting tabs for free-hanging wire-to-wire extension, one housing adapts two mainstream assembly layouts to reduce spare part inventory.
Tactile positive snap locking anti-loose mechanism: Clear click feedback confirms complete mating, fundamentally eliminate incomplete insertion hidden danger that causes contact overheating and melting under long-term heavy load vibration.
Dual-lance double retention terminal structure: Two elastic lances clamp terminals from upper and lower sides, strong anti-vibration performance, avoid terminal back-out caused by wire pulling and equipment reciprocating jolting.
Triple global safety certification (UL/CSA/VDE): Unified standard for EU, US and Canadian market exports, no additional recertification cost for cross-border appliance manufacturers.
Flexible all-round OEM customization support: Arbitrary adjustable cable length, wire thickness and insulation material (ordinary PVC / high-temperature silicone / oil-resistant TPE) according to equipment working environment; small prototype sample orders available for product development verification.

Application

Household White Goods & Small Home Appliances:Washing machine main motor power wiring, refrigerator compressor control harness, range hood fan motor connecting cable, air conditioner internal unit power signal integrated wire, water heater heating tube power terminal cable
Handheld Power Tools & Garden Machinery:Electric drill internal motor power harness, electric lawn mower control board connecting wire, hedge trimmer battery power extension cable, portable welding machine auxiliary power wiring
Industrial Automation & Power Equipment:Small frequency converter auxiliary power supply harness, PLC expansion module medium-current signal cable, industrial fan drive power connecting wire, switching power supply input/output terminal wire
New Energy Auxiliary Control Equipment:Small energy storage battery pack monitoring power harness, solar micro-inverter internal connecting cable, low-speed electric vehicle auxiliary control board wiring
Office & Commercial Electrical Equipment:High-power copier internal motor power wire, commercial water dispenser heating control harness, industrial dehumidifier main circuit connecting cable

FAQ

Q1: What series, pitch and pin count does this connector belong to?

A: It belongs to Universal MATE-N-LOK rectangular connector series, 4-position single-row female cap receptacle housing with fixed 6.35mm (0.25") center pitch.

Q2: What maximum continuous current can each pin withstand?

A: When matched with AWG18 thick power wire, each pin supports stable 19A continuous transmission; AWG22 wire matches 13A, AWG24 wire matches 10A, suitable for medium-high power motor and heating circuit wiring.

Q3: What matching male housing mates with this female receptacle?

A: Exclusive matching male plug housing model is 4Pin single row male housing, can be assembled into male-female inline extension harness as customer required.

Q4: What is the function of optional TPA terminal position assurance lock?

A: TPA lock is an auxiliary safety accessory, after terminal crimping and insertion, insert TPA to secondary lock terminals, further improve anti-back-out performance for vibration-intensive equipment such as power tools and electric vehicles.

Q5: Can this harness be used for wall panel fixed installation?

A: Yes, the housing is pre-molded with integrated panel mounting patch tabs, compatible with 0.76~2.29mm thickness equipment panel wall penetration fixed wiring.

Q6: Can I switch wire insulation material to high-temperature silicone wire?

A: Fully supported; we can customize PVC, 200℃ high-temperature silicone or oil-resistant TPE insulated power wires according to equipment high-temperature, oil pollution and harsh environment requirements.
