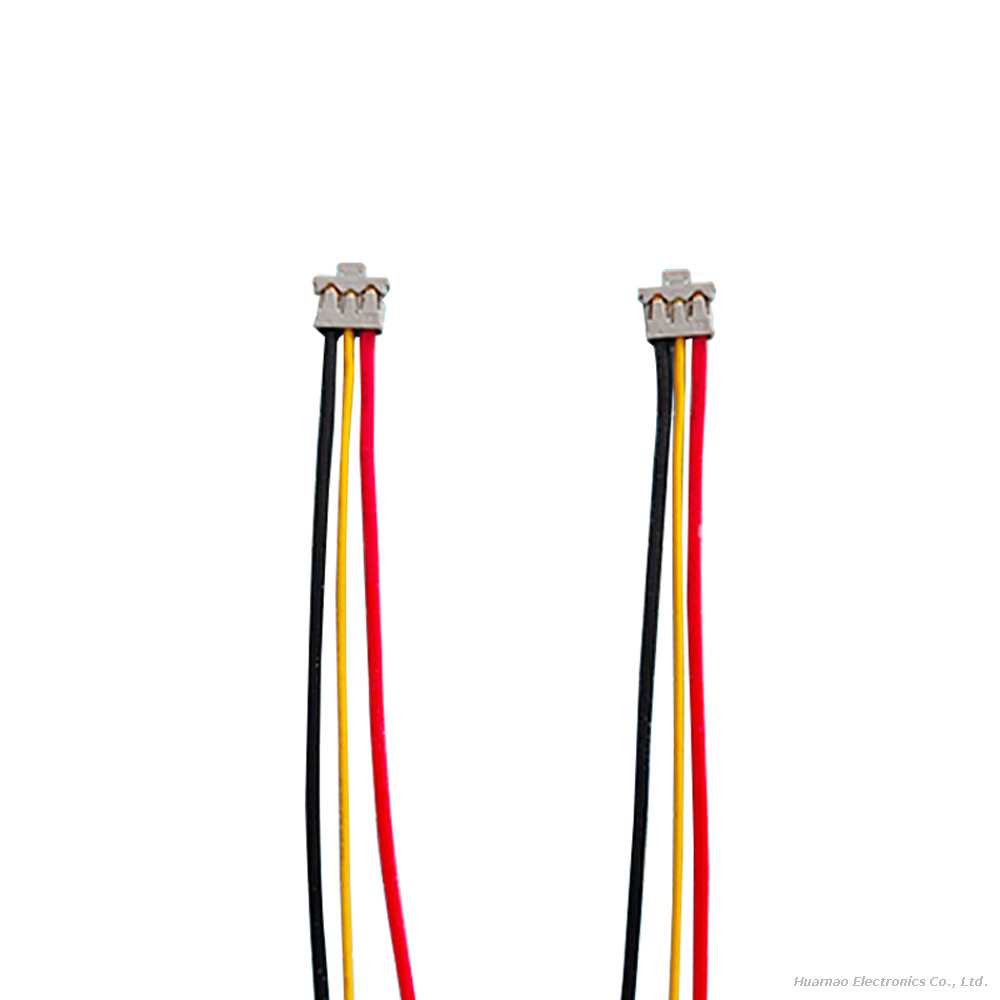

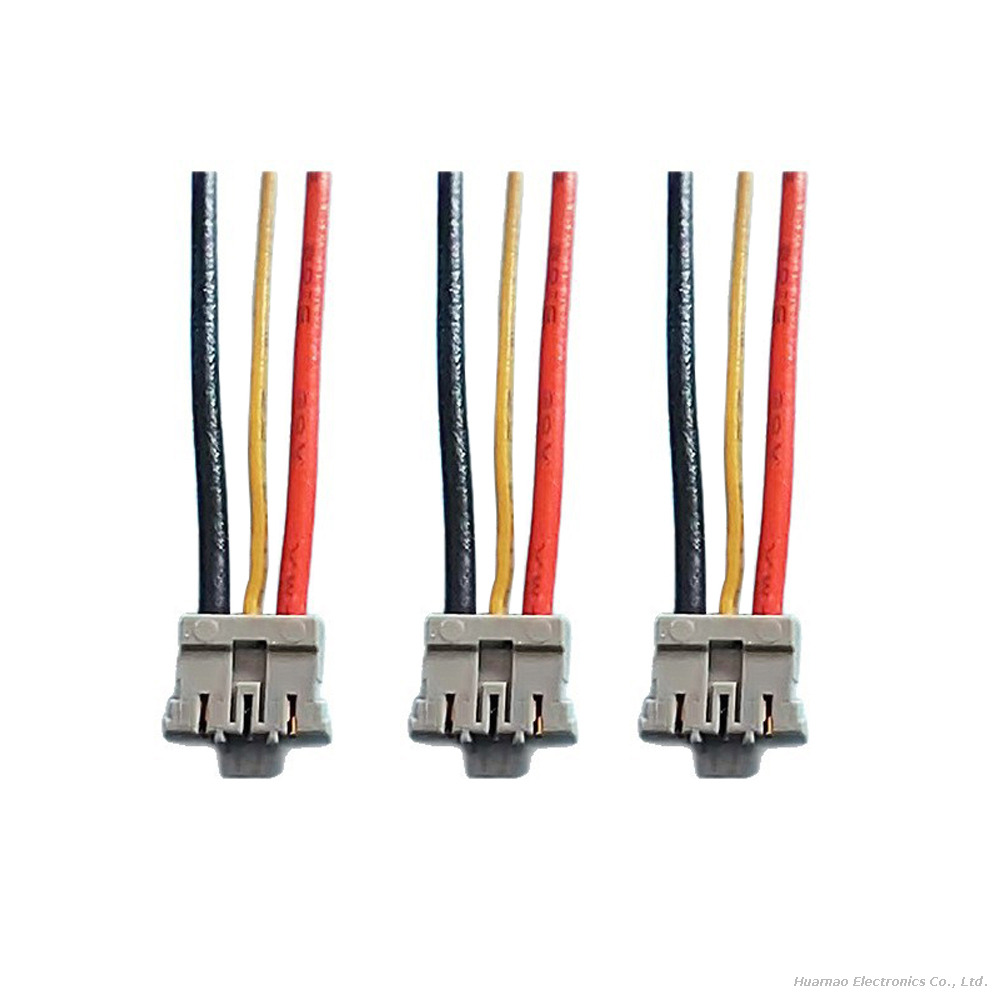

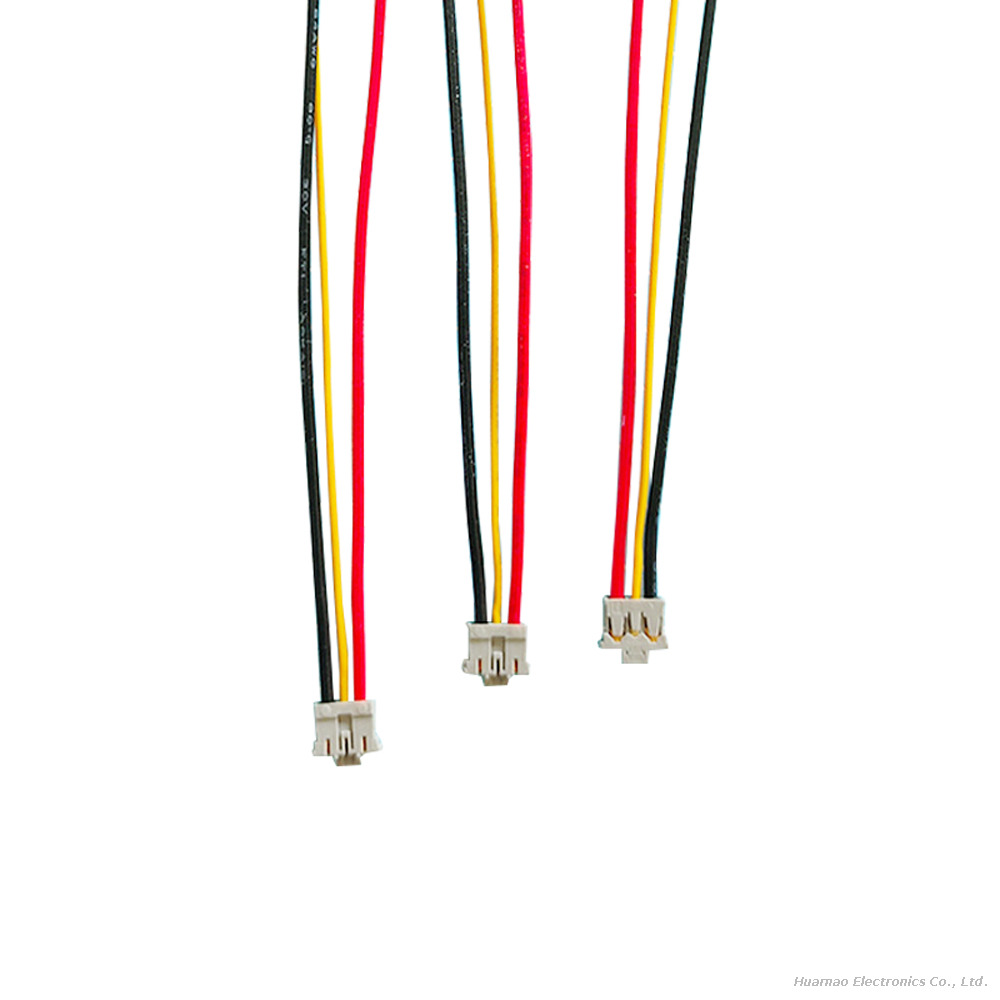

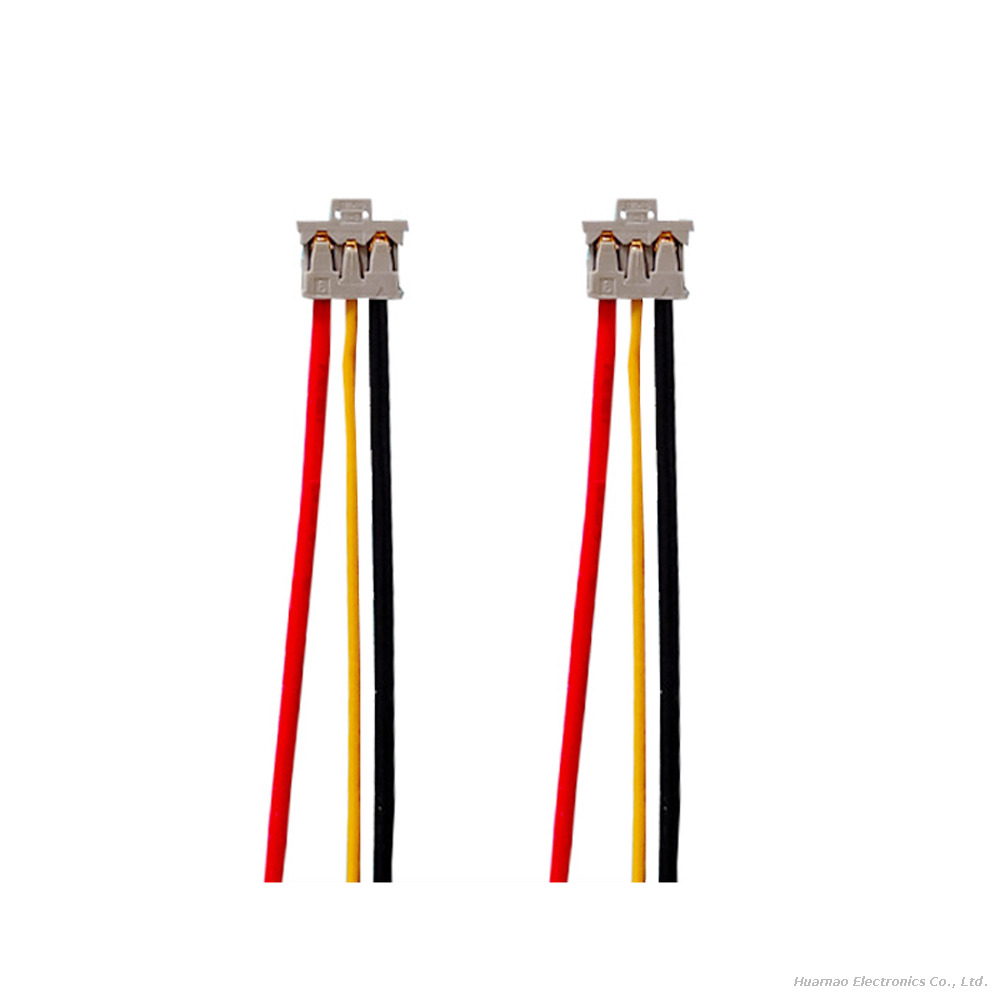

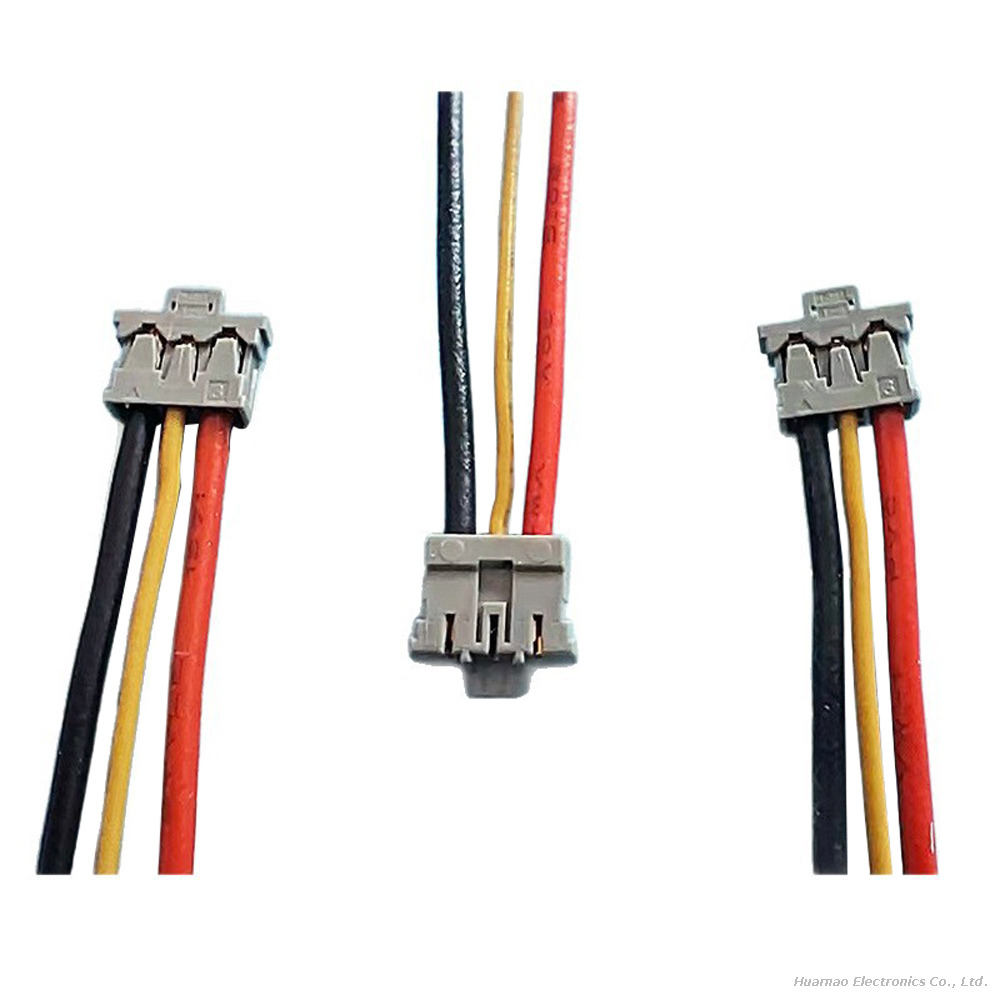

The AUH series is an SMT, wire-to-boardcrimp style connector that combines bothpower supply and signal communication intoone connector system. It featuresan exceptionally low profile with a mountingheight of only 1.85 mm and an overall depthof 5.2 mm in the mated condition. For sucha compact connector, it offers an impressivecurrent rating of 5 A.
・Compact, low-profile and space-saving
・Top-entry header with side feed cable connector
The mating direction runs vertical into the top-entry header while the cable connector runs parallel to the board surface.
・ Power + Signal combination specifications
3-circuit: Power supply 2-circuit + Signal 1-circuit
5-circuit: Power supply 4-circuit + Signal 1-circuit
・Connector for DC power supply
(max. 5 A current-carrying capacity)
