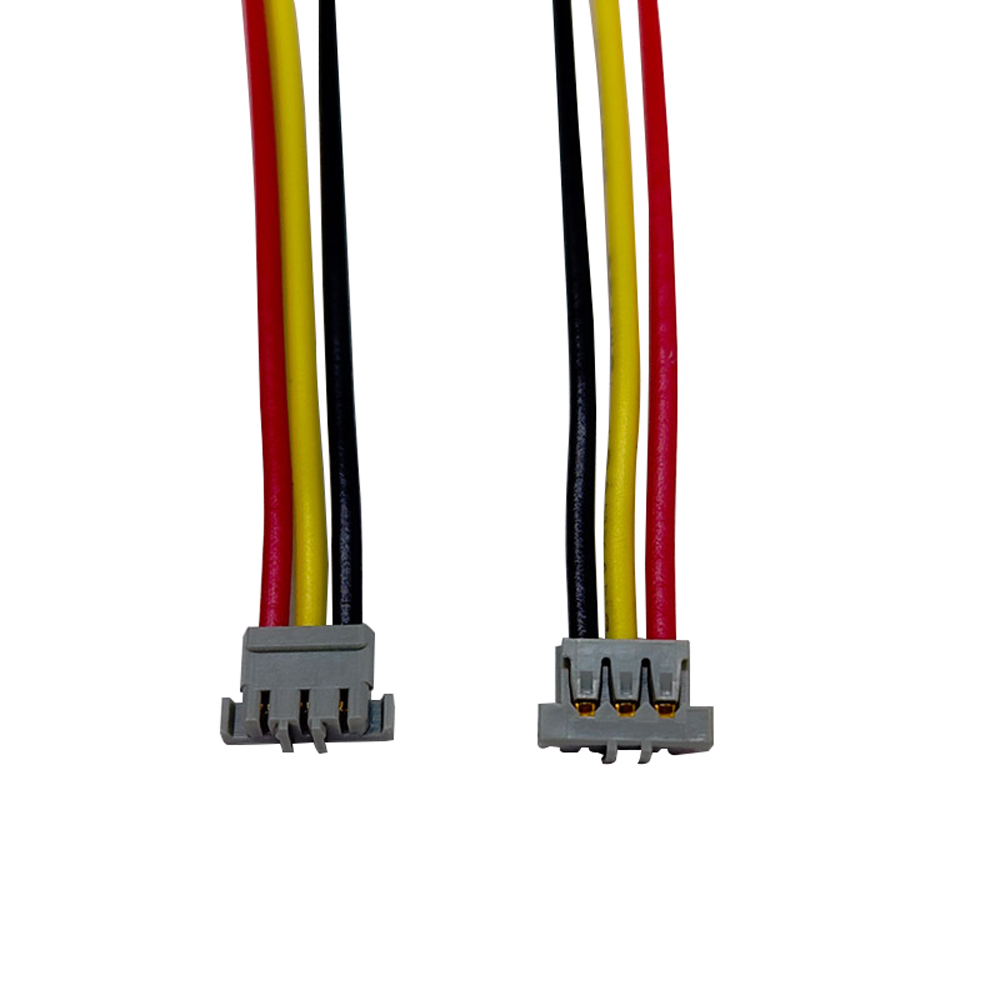

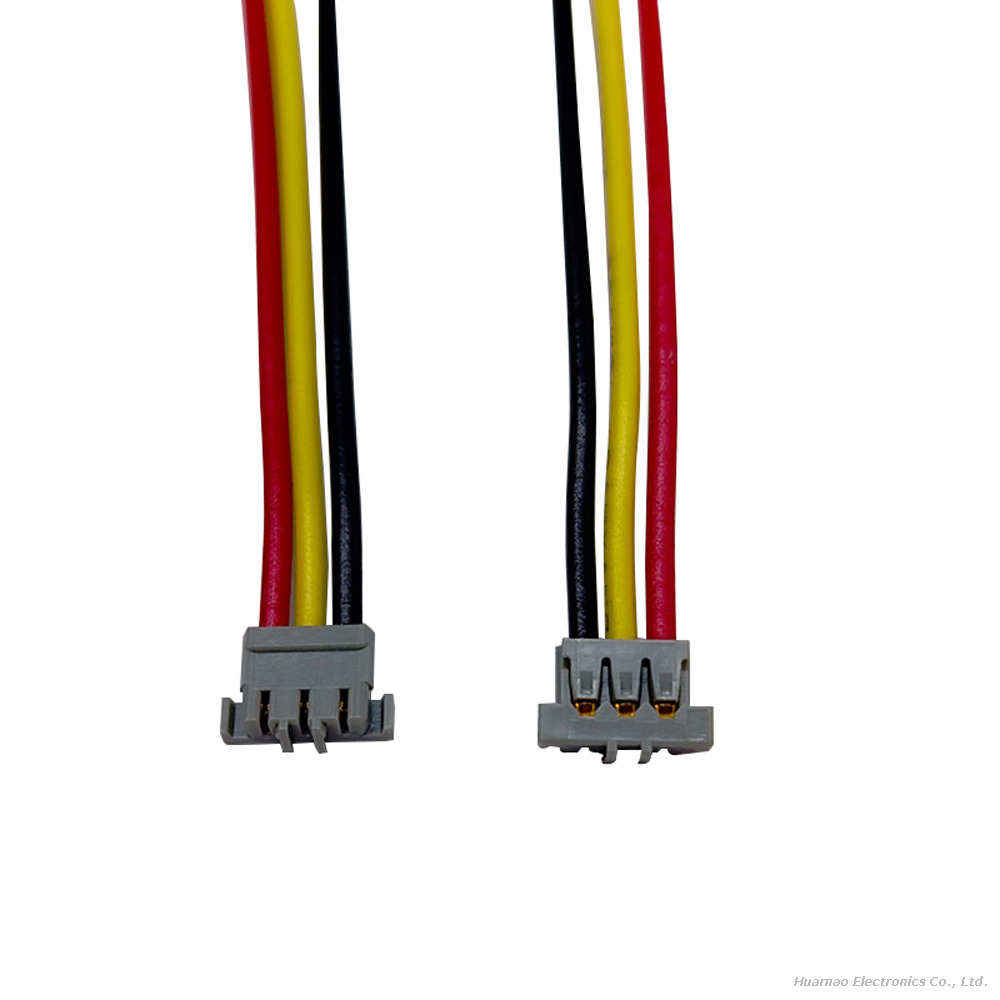

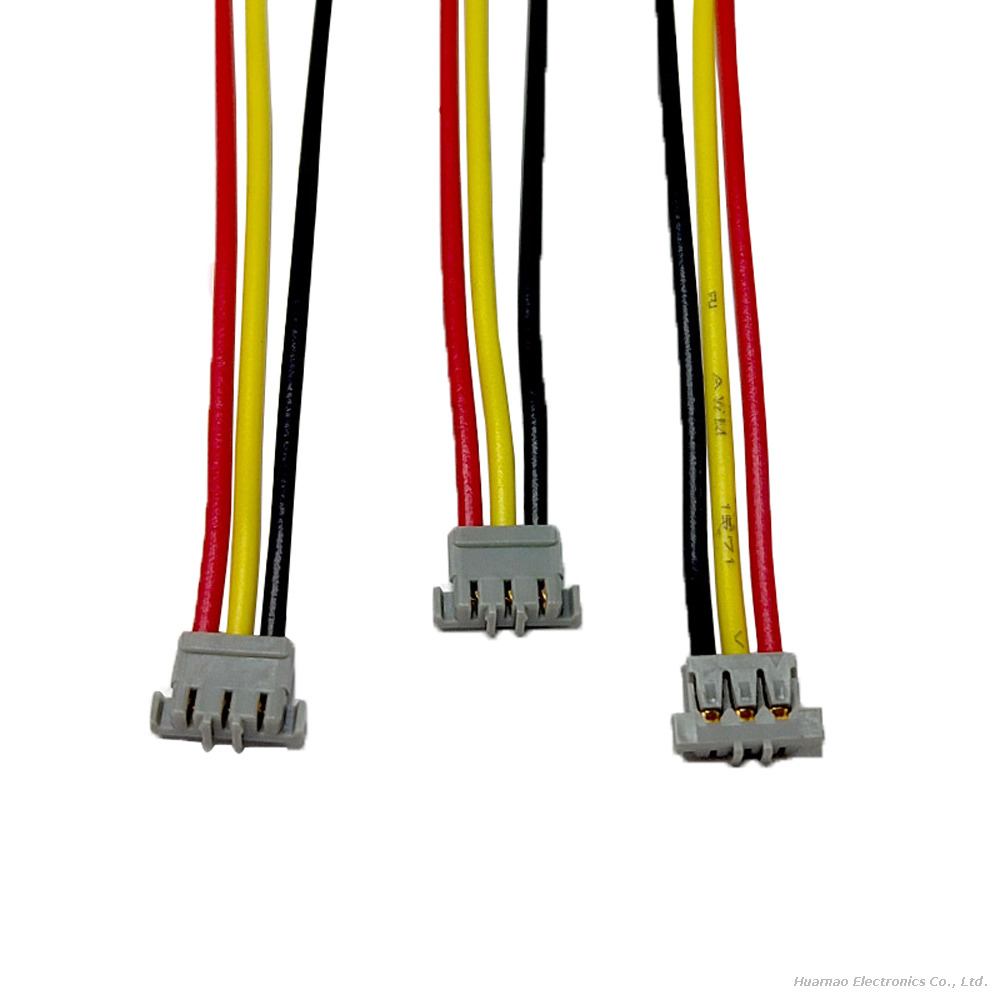

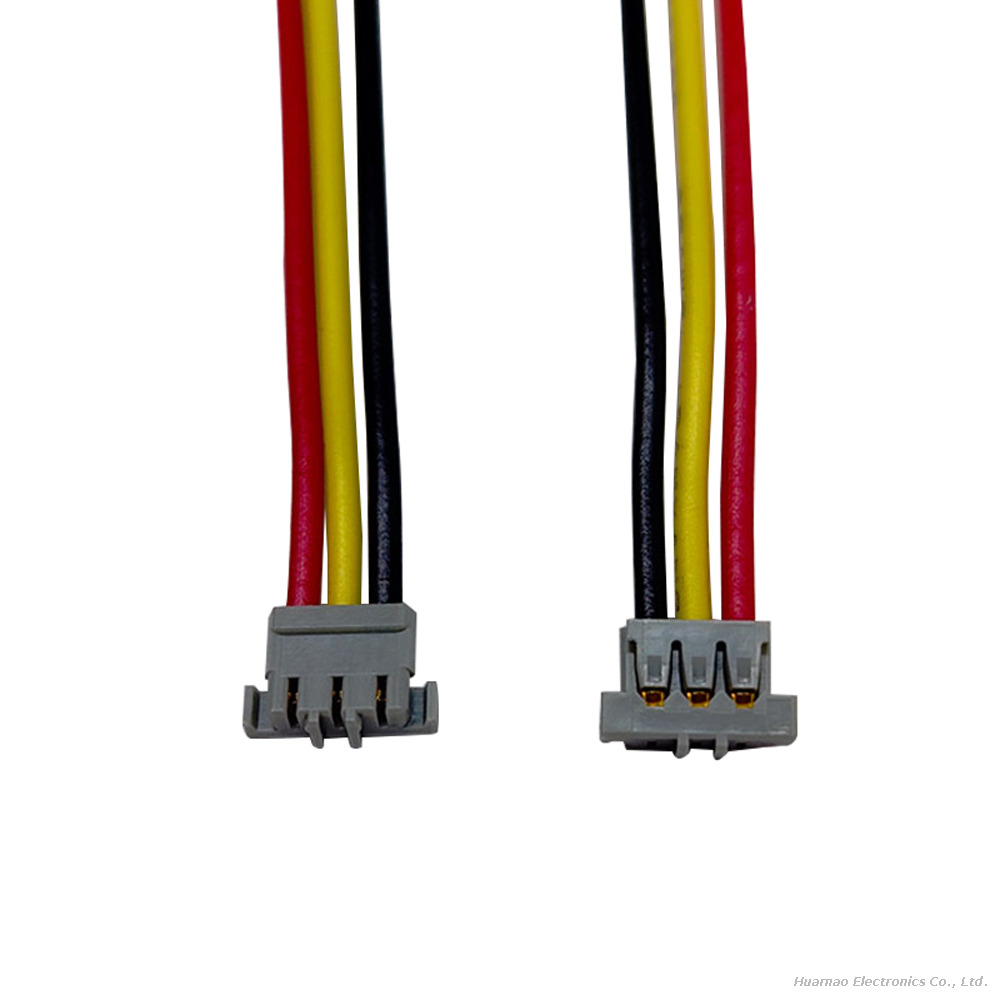

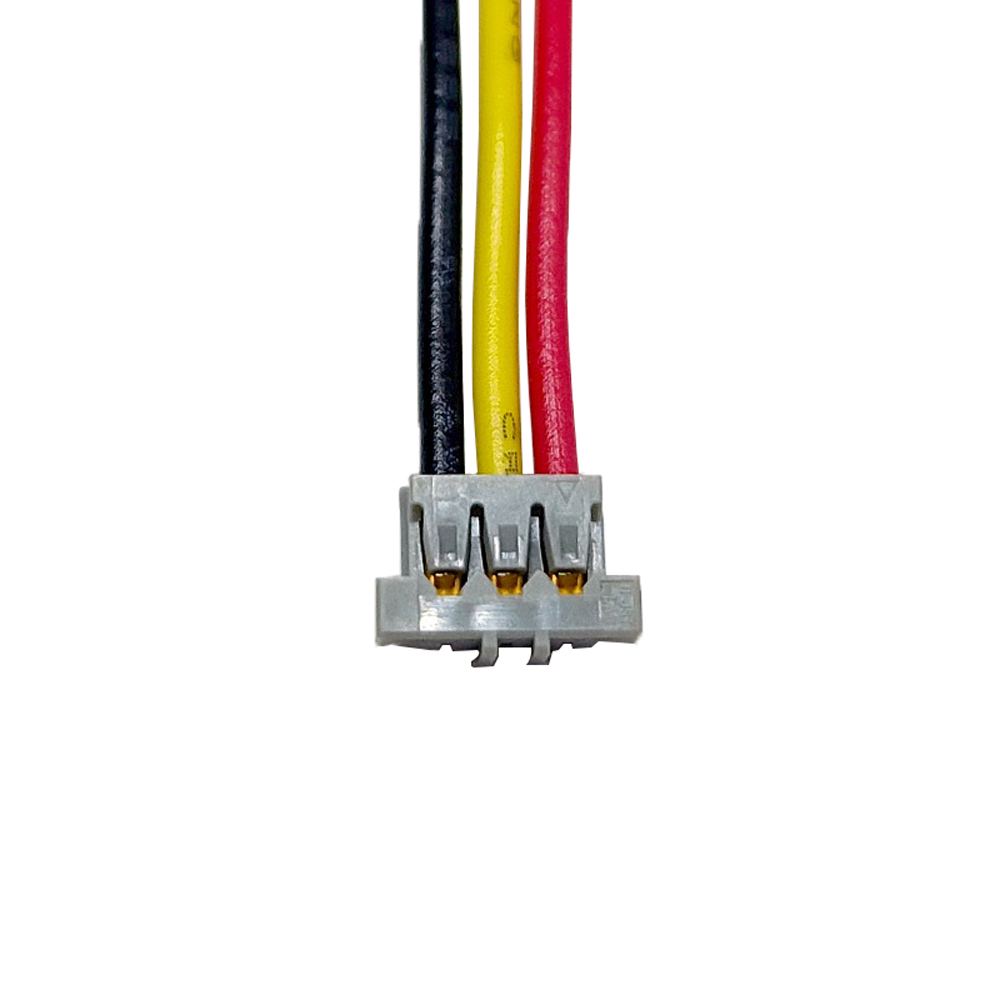

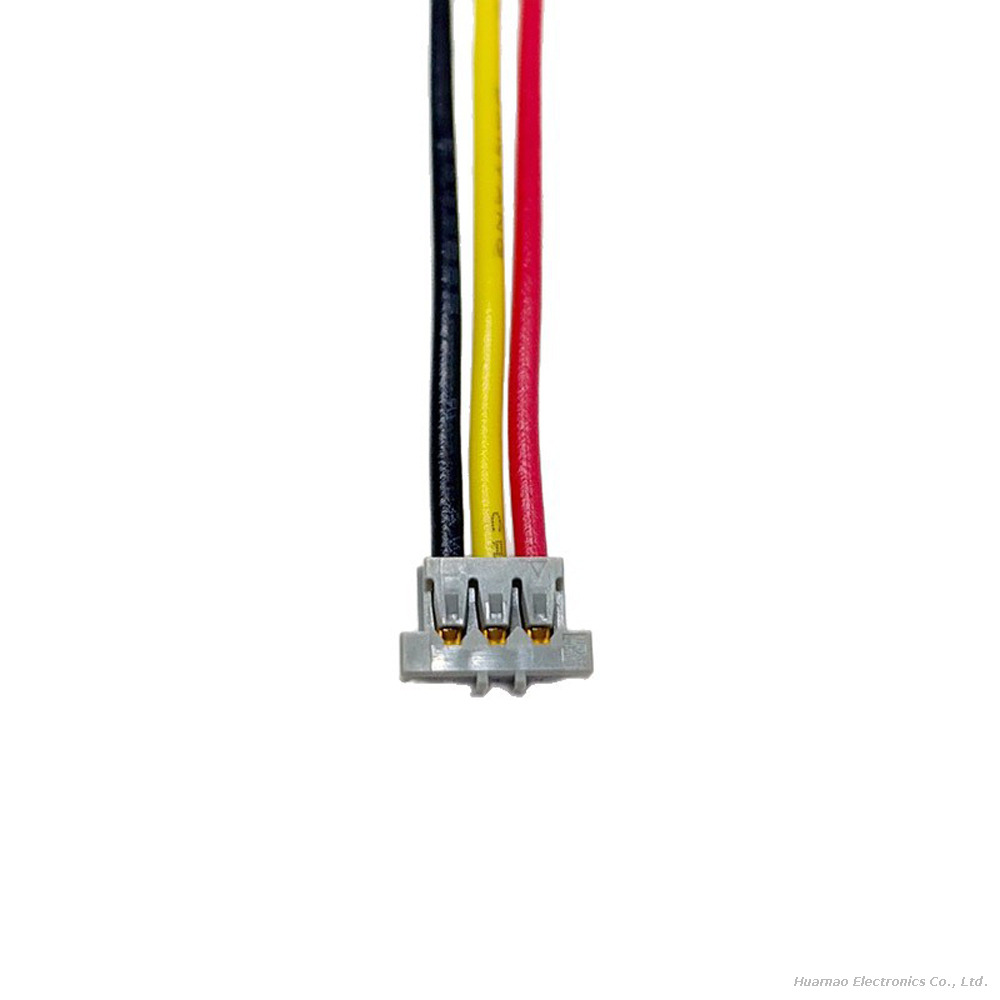

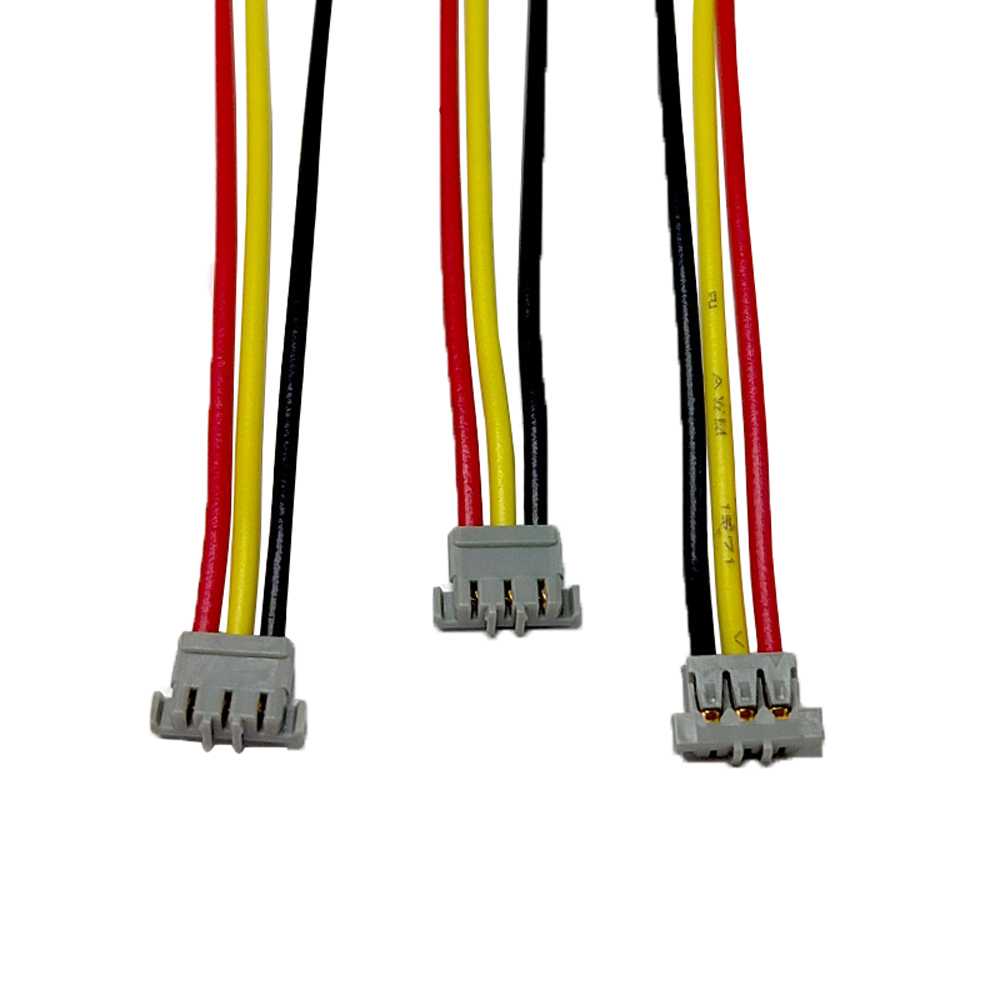

This cable assembly adopts JST ADHR-03V-H connector with a 1.3mm compact pitch, matched with dedicated crimp terminals and ultra-fine electronic wires. It is professionally designed for battery wiring applications, delivering stable power transmission with miniaturized size, anti-loosening performance and anti-misplug protection, widely used for lithium battery packs, small electronic devices and portable power equipment.
Key Features & Advantages
1.3mm Miniaturized Pitch
Ultra-compact spacing effectively saves installation space, perfectly matching slim battery compartments and miniaturized electronic equipment.
Anti-Loosening Locking Latch
Built-in buckle keeps the connector firmly mated, avoiding poor contact caused by vibration of portable devices and moving equipment.
Polarized Anti-Misplug Design
Asymmetric housing structure prevents reverse plugging, protecting battery management systems (BMS) and circuit boards from short-circuit damage.
Ultra-Fine Wire Adaptability
Supports 28–32 AWG thin wires, with strong flexibility for bending and routing in narrow internal spaces.
Stable Battery Power Transmission
Tinned copper terminals reduce oxidation and contact resistance, ensuring long-term stable power supply for battery-powered devices.
Typical Applications
Internal wiring and BMS connection for lithium battery packs
Battery harness for smart wearables, Bluetooth audio and handheld portable electronics
Micro battery connection cables for RC drones and small model equipment
Battery wiring for compact medical electronic devices
IoT terminal equipment and small intelligent hardware power harness
Quality Assurance & Customization
100% electrical continuity and terminal pull-out force testing before shipment
Customizable cable length, wire color and wire arrangement
Precision crimping process ensures reliable connection between terminals and wires
Suitable for mass production of battery products and miniaturized electronic equipment
