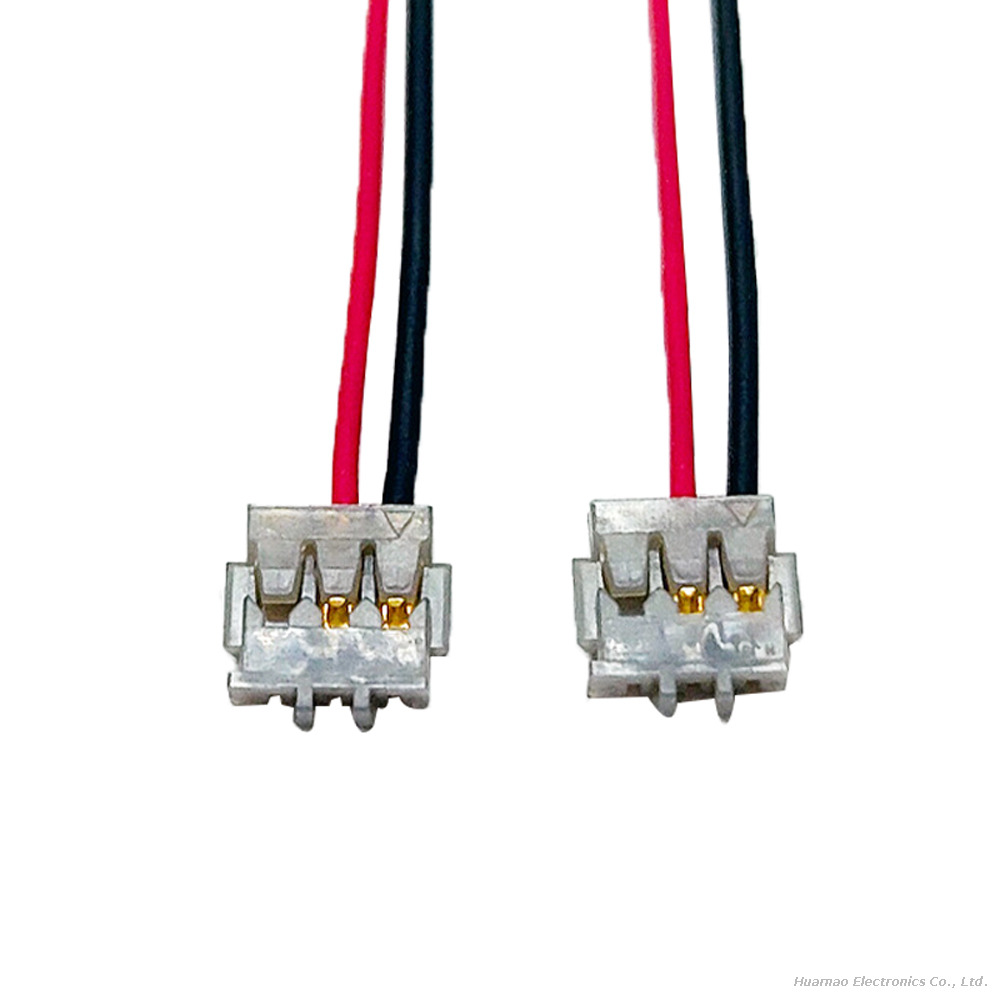

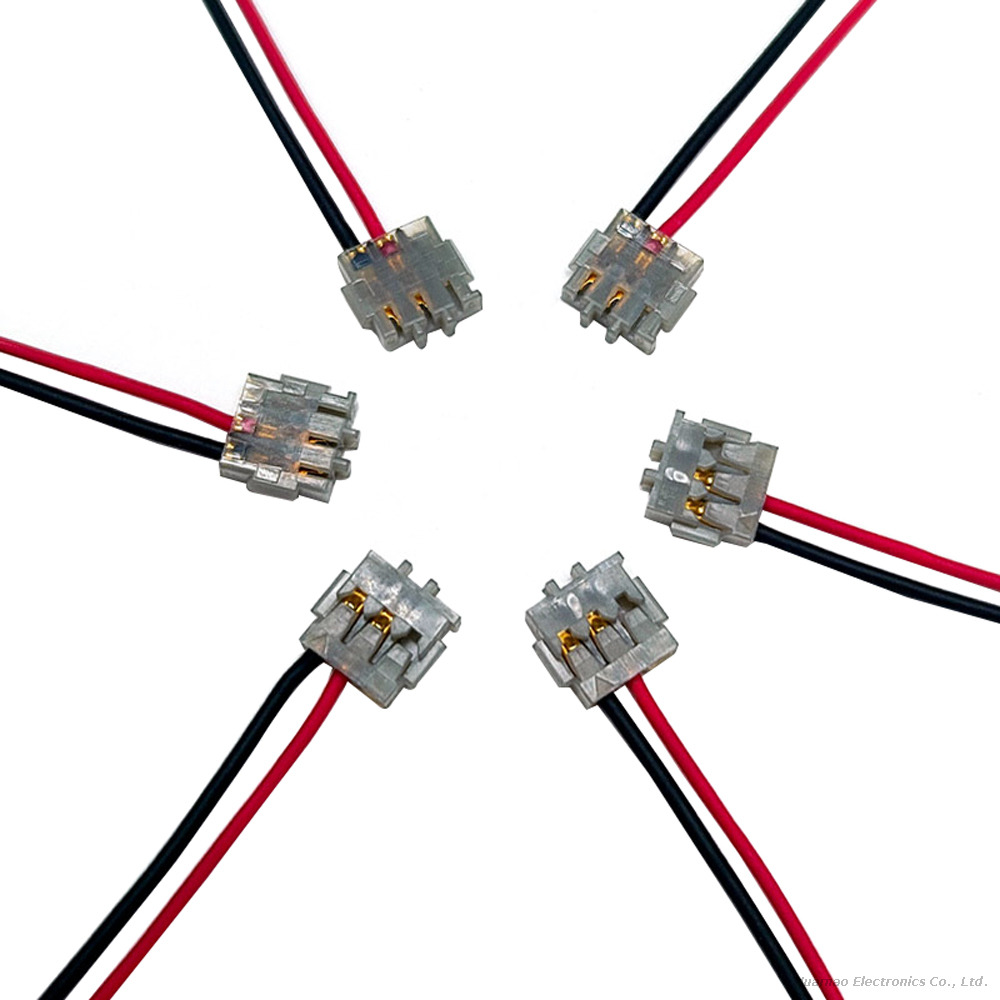

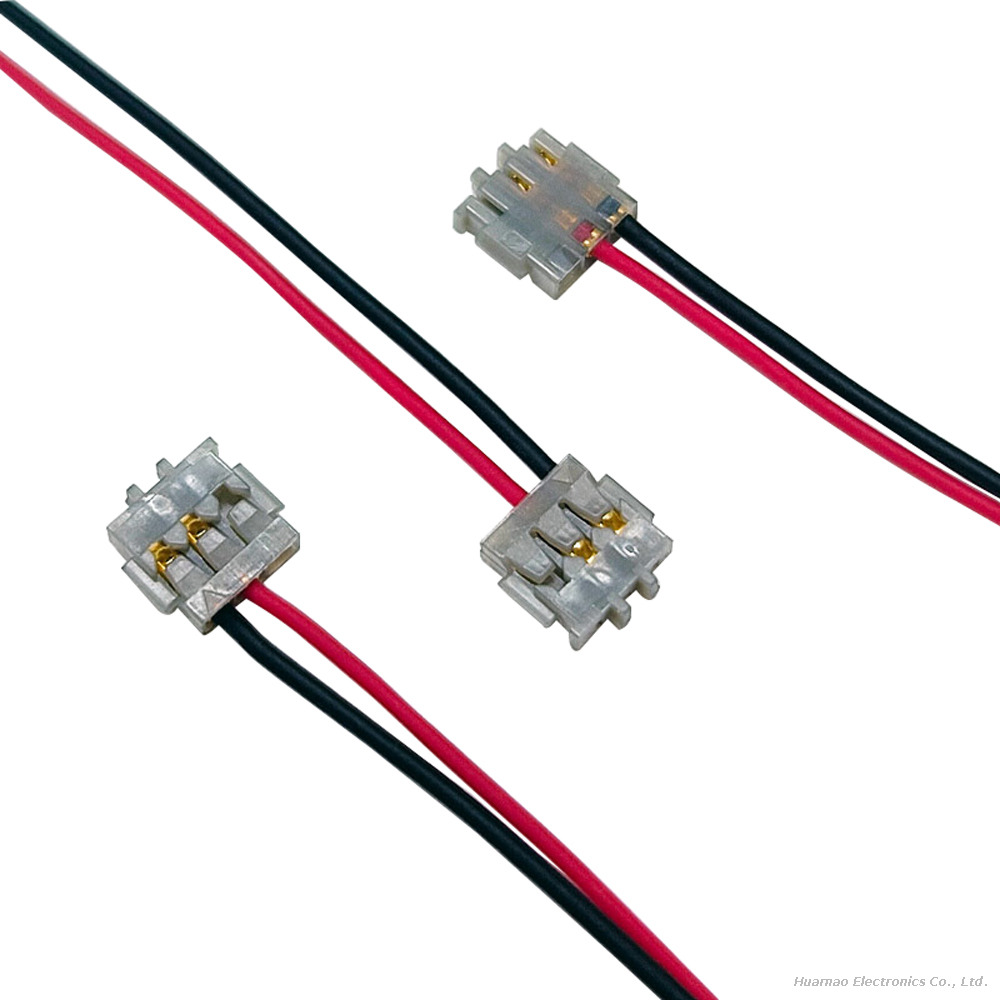

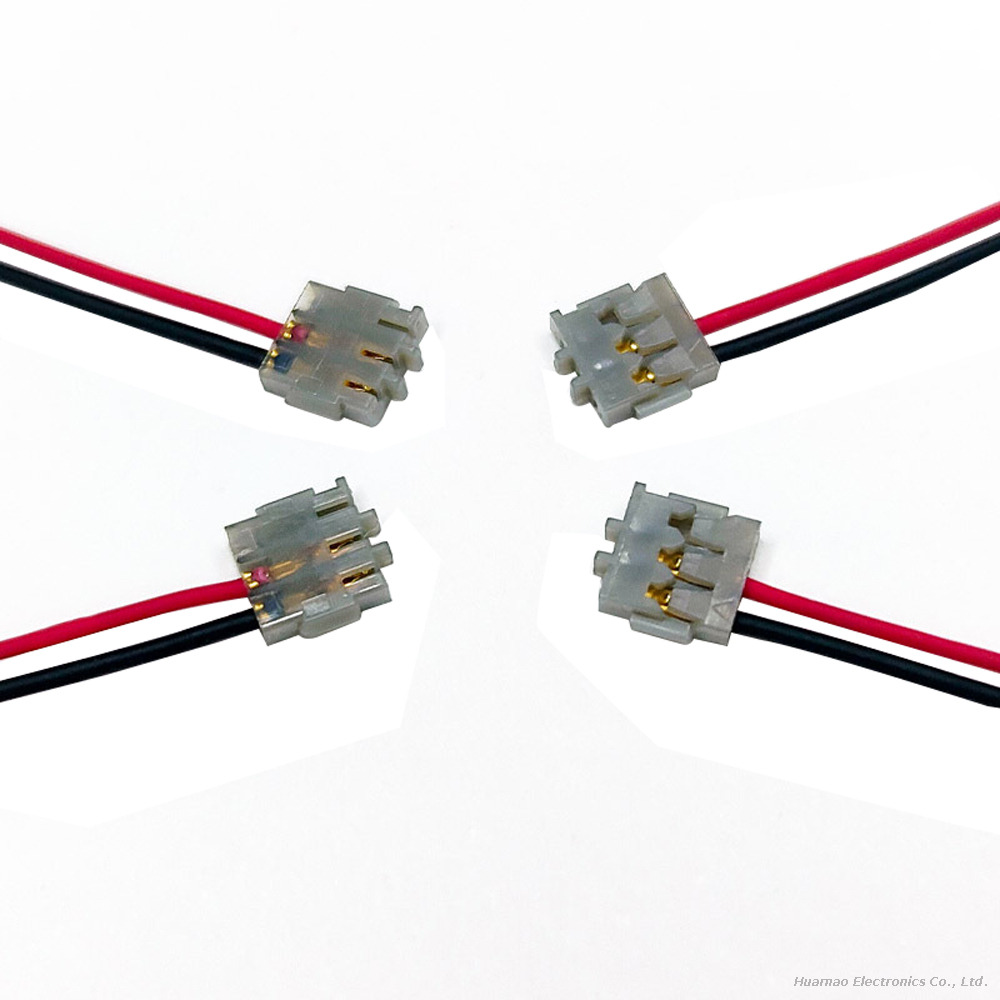

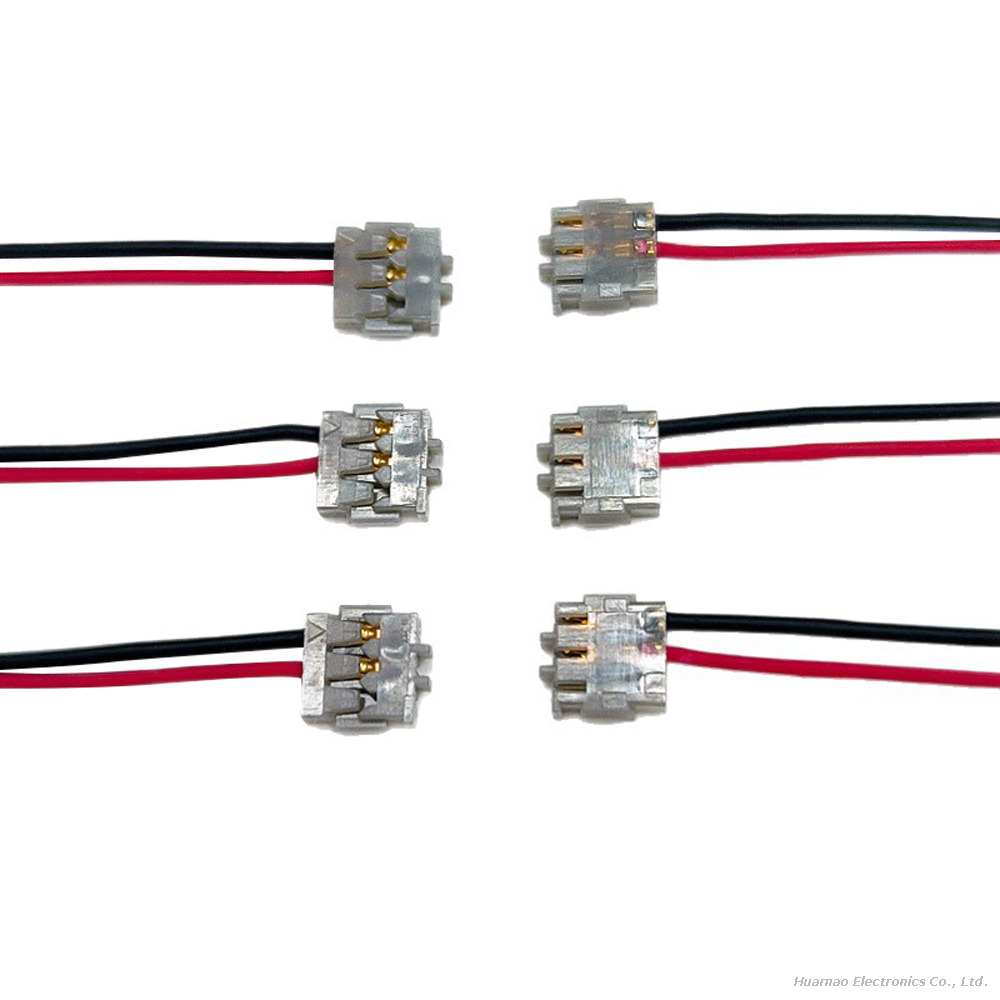

JST ACH Series ACHFR-03V-H 1.2mm Pitch Battery Wiring Harness

JST ACH Series ACHFR-03V-H 1.2mm Pitch Battery Wiring Harness

Connector Model:JST ACHFR-03V-H

Pitch:1.2mm ultra-fine pitch

Rated Current:Up to 1A per contacr

Operating Temperature:-25℃ to +85℃

Features:Low-profile design,gold-plated contacts,compact size,anti-vibration

Model:
JST ACHFR-03V-H
Brand:
huamao

Availability:

Quantity:



Inquire Add to Basket Buy at Amazon

JST ACHFR-03V-H 1.2mm Pitch Wire lithium battery wire JST Battery Terminal Battery Connection Wire Ultra Fine Pitch Wire 1.2mm Battery Cable Internal Battery Wire

Product Description

This JST ACHFR-03V-H 1.2mm pitch terminal wire is a high-precision connection harness designed specifically for lithium battery packs and compact electronic devices. Featuring the original JST ACHFR-03V-H connector with a 1.2mm ultra-fine pitch, it provides a reliable, space-saving solution for internal battery power connections.

JST ACHFR-03V-H Standard Connector
Adopts genuine JST ACHFR-03V-H connector with a precise 1.2mm pitch. The compact, low-profile design is ideal for slim lithium battery modules, with a secure locking mechanism to prevent accidental disconnections caused by vibration or movement.
Ultra-Fine 1.2mm Pitch for Compact Battery Design
The 1.2mm ultra-fine pitch connector and thin-gauge wire allow for high-density wiring, making it perfect for small lithium battery packs, wearable devices, and slim electronics where space is at a premium. It minimizes the footprint of internal battery connections.
Stable & Safe Lithium Battery Power Transmission
Constructed with high-purity copper conductors, this wire ensures low resistance and stable current flow, meeting the charging and discharging requirements of lithium batteries. It prevents voltage drop, overheating, and poor contact, ensuring safe and reliable battery operation.
Durable & Vibration-Resistant Construction
The flexible, flame-retardant insulation jacket offers excellent protection against heat, wear, and aging. Reinforced strain relief at the connector ends prevents wire breakage, improving the harness’s durability and resistance to repeated bending and vibration.
Versatile Compatibility for Lithium Battery Applications
Widely used in lithium-ion battery packs, smart home devices, wearable electronics, portable power banks, and small home appliances. Supports custom wire lengths, gauges, and single/double-ended configurations to meet OEM and aftermarket assembly needs.

Whether you’re assembling new lithium battery packs, repairing portable electronics, or designing compact devices, this JST ACHFR-03V-H 1.2mm pitch terminal wire offers a reliable, space-saving, and high-performance solution for your battery connection needs.
