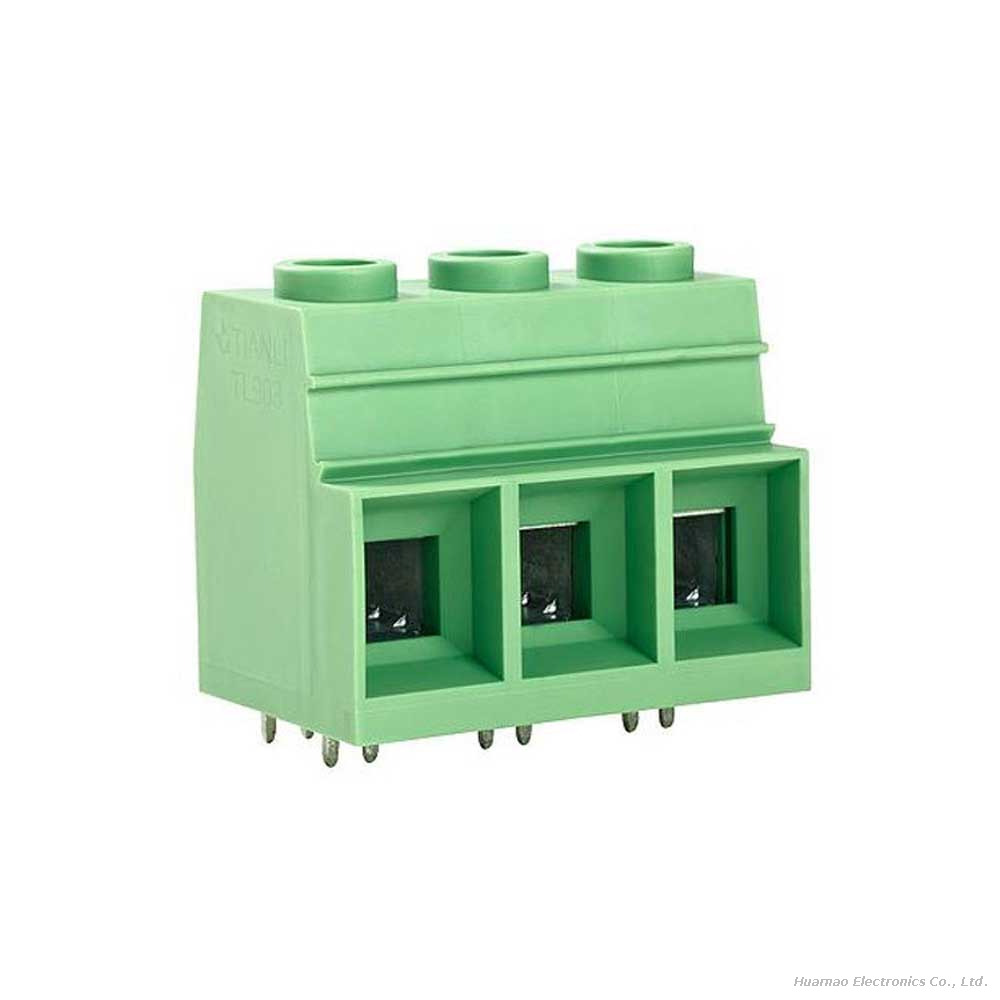

This 15.00mm pitch fixed PCB terminal block is a high-reliability industrial-grade wiring solution designed for permanent PCB mounting. Featuring a robust screw-clamp structure and a 15mm standard pin pitch, this terminal block provides secure, vibration-resistant connections for power, signal, and control lines in industrial control systems, power distribution units, and electronic equipment. The fixed through-hole design ensures long-term stability in high-current and high-vibration environments, making it ideal for permanent wiring installations where plug-in terminals are not required.
Key Features
✅
15.00mm Standard Pitch DesignIndustry-standard 15.00mm (0.59 inch) pin spacing, compatible with universal PCB layout standards, ensuring reliable mating and easy integration into industrial control boards and power modules.
✅

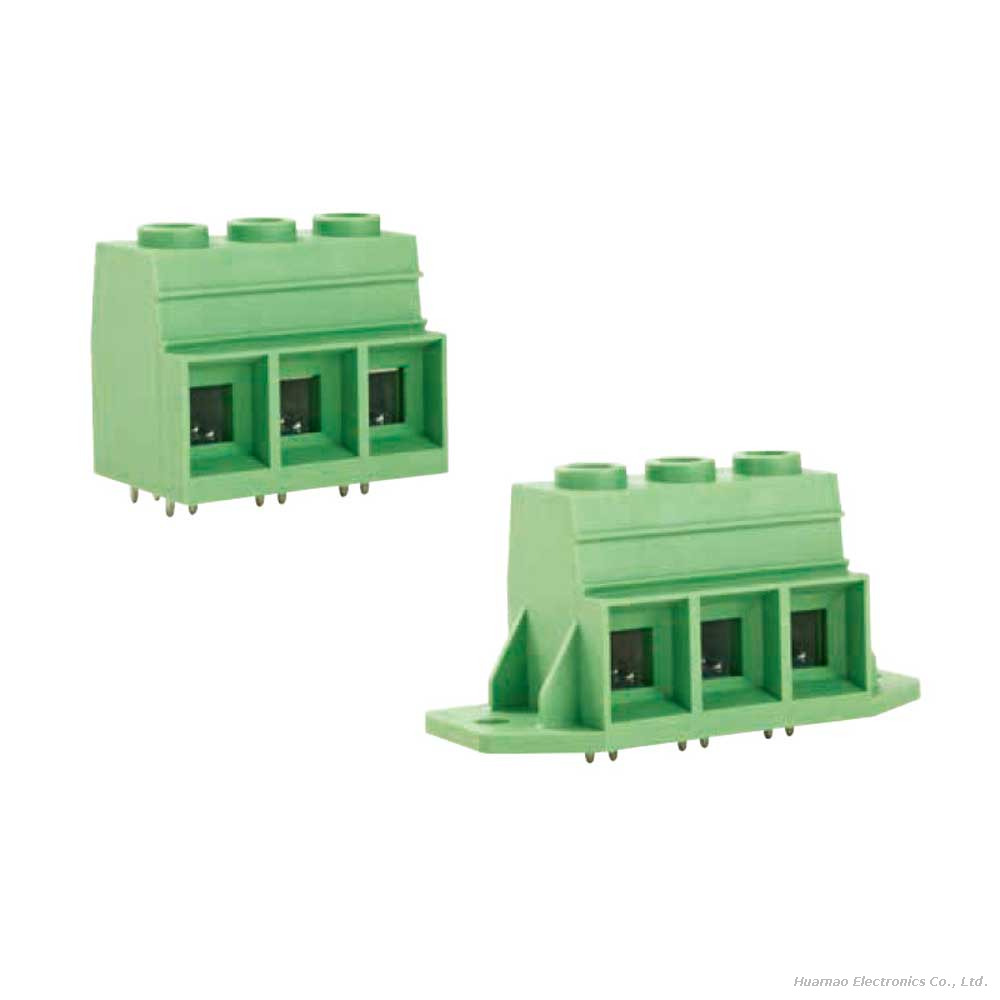

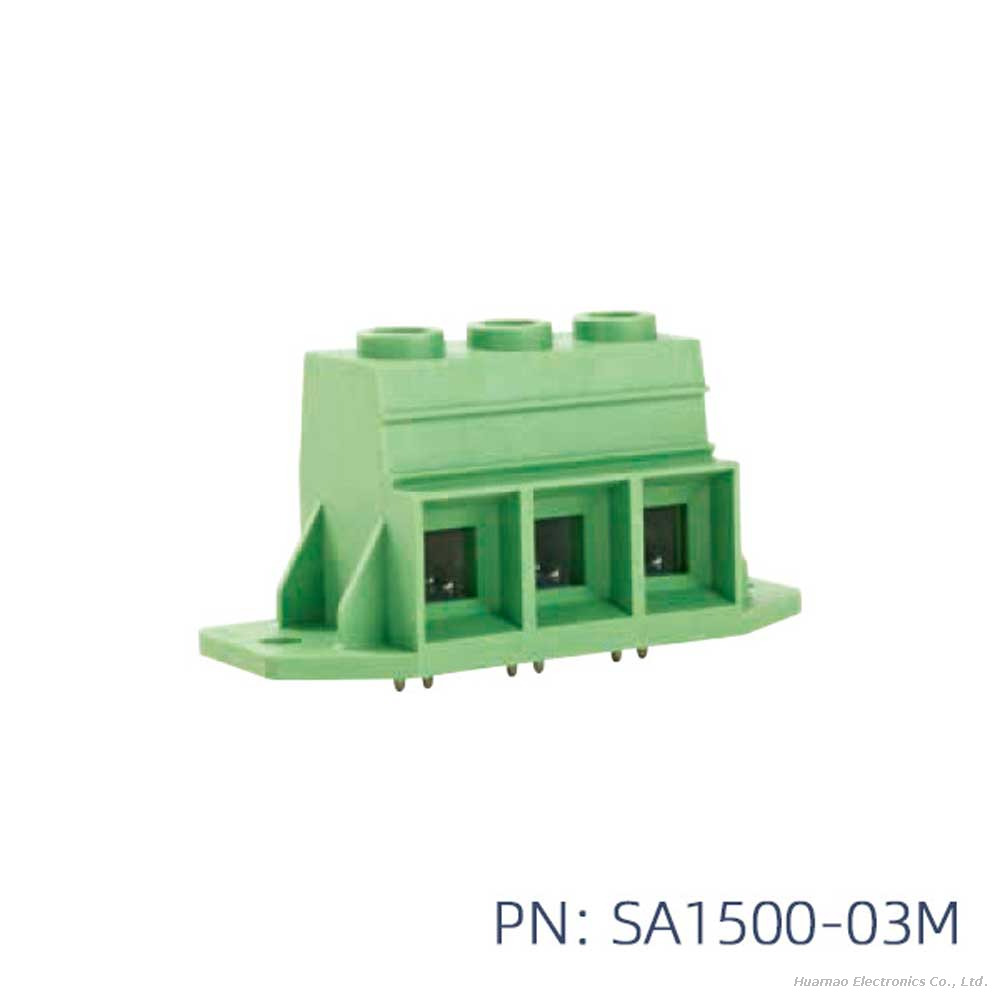

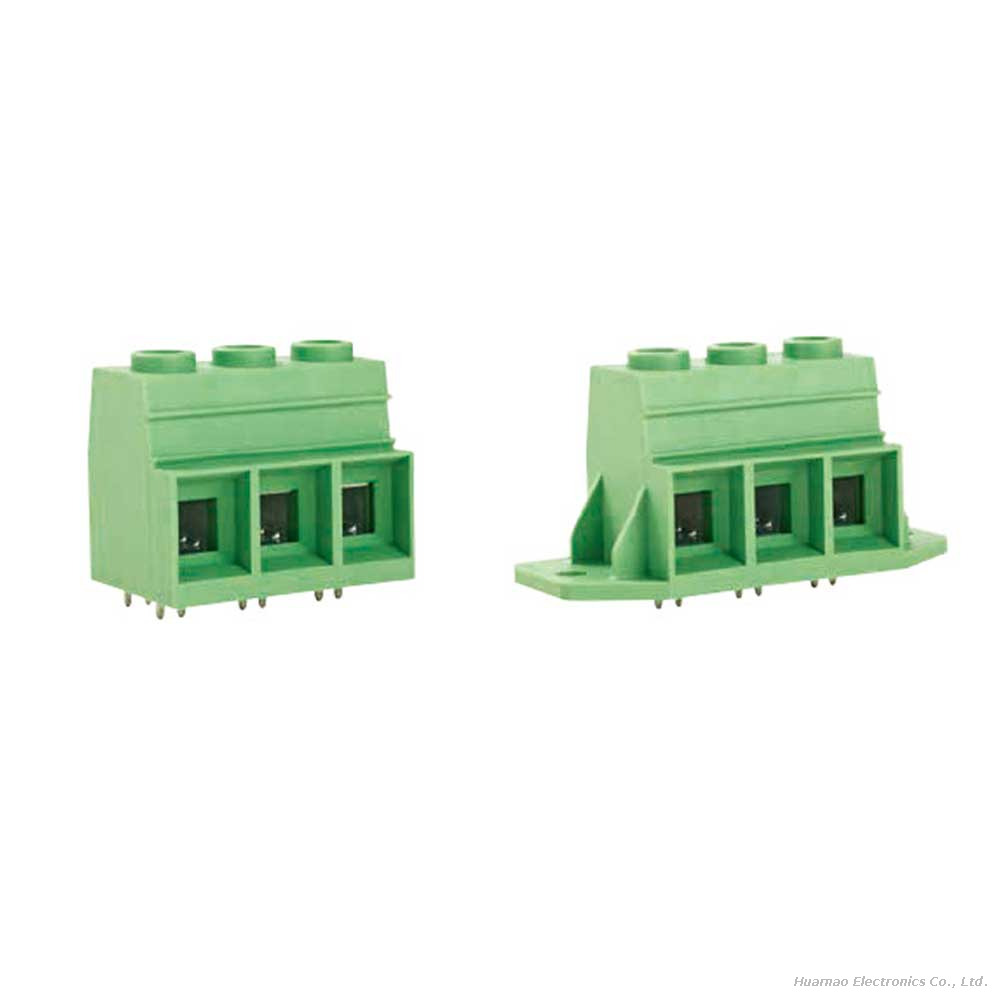

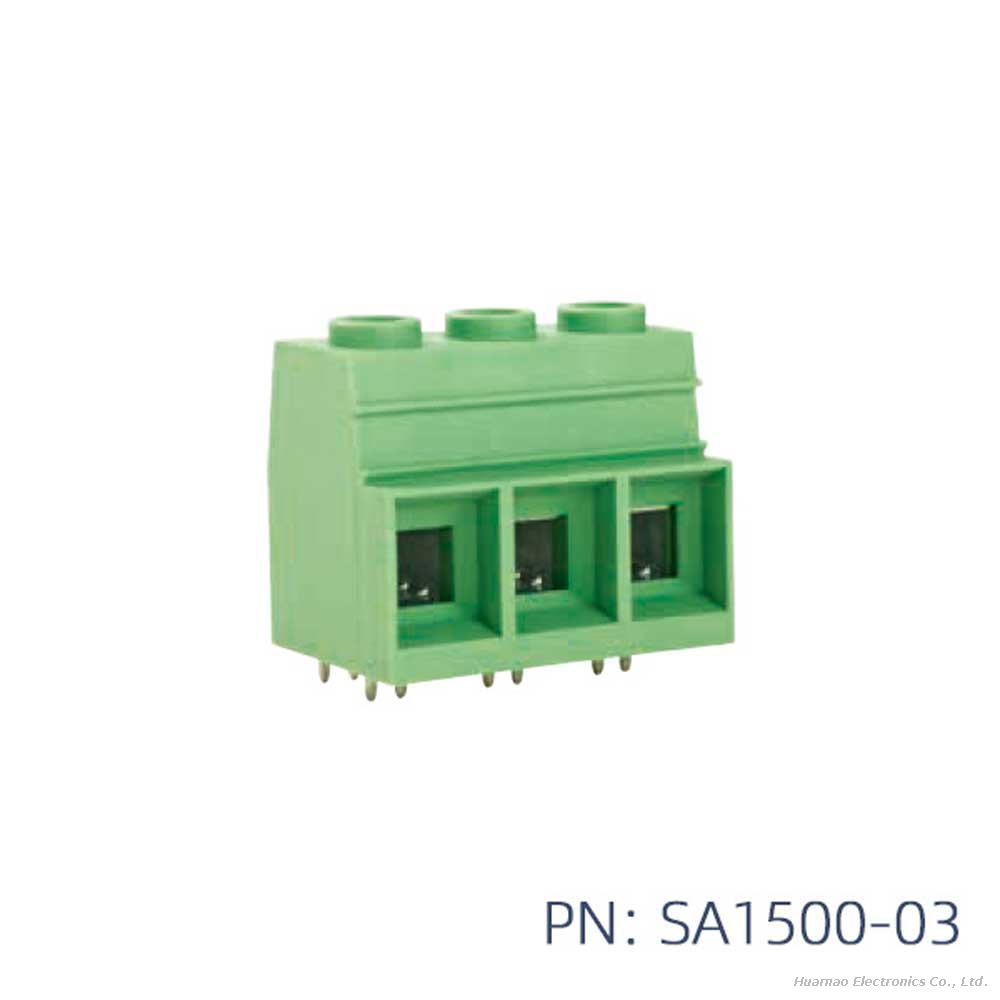

Fixed PCB Mount StructureAvailable in two configurations: vertical through-hole PCB mount and panel-mount flange design, for permanent, secure installation on PCBs or equipment panels. The through-hole pins ensure strong mechanical bonding and excellent electrical conductivity.
✅
Reliable Screw-Clamp ConnectionEquipped with high-torque screw terminals that provide a secure, vibration-resistant grip on solid or stranded wires. The screw-clamp design ensures long-term connection stability, eliminating loosening caused by mechanical shock or thermal cycling.
✅
Industrial-Grade DurabilityHousing made of flame-retardant PA66 (UL94 V-0) material, with excellent high-temperature resistance, insulation performance, and anti-aging properties. The contacts are made of high-purity brass with tin plating, ensuring low contact resistance and strong corrosion resistance.
✅
High Current-Carrying CapacityDesigned for high-power applications, supporting large wire gauges and high current loads, making it suitable for power distribution, motor control, and industrial power supply systems.
✅
Wide CompatibilityCompatible with a wide range of industrial control equipment, power supplies, and electronic devices, suitable for both vertical PCB mounting and panel mounting applications.
Common Applications
Industrial control systems and PLC power wiring
Power distribution units and power supply modules
Motor control and drive systems
Industrial automation equipment
PCB and electronic equipment permanent wiring
Control cabinet power and signal distribution
Renewable energy and solar power systems
Why Choose This 15.00mm Fixed Terminal Block?
15mm Industry Standard Pitch: Ensures universal compatibility with industrial PCB layouts and wiring standards.
Fixed Permanent Mount: Provides long-term, vibration-resistant connections for critical power and control lines.
High Current Capacity: Designed for high-power applications, supporting large wire gauges and heavy loads.
Industrial-Grade Materials: Flame-retardant housing and corrosion-resistant contacts ensure long service life in harsh environments.
Dual Mount Options: Available in vertical PCB mount and panel-mount flange designs to meet different installation needs.
Full Compliance: Meets IEC, UL, and RoHS standards, ensuring safety and reliability for industrial applications.
Customization Options
We offer flexible customization solutions to meet your specific project requirements:
Pole Configurations: 2P to 24P (custom pole counts available upon request)
Mount Types: Vertical PCB mount, panel-mount flange, and custom mounting structures
Current Ratings: Customized current ratings for high-power or low-power applications
Housing Colors: Custom colors (green, black, blue, etc.) for different circuit identification
Bulk OEM/ODM: Support for large-scale manufacturing orders with private labeling and custom packaging
