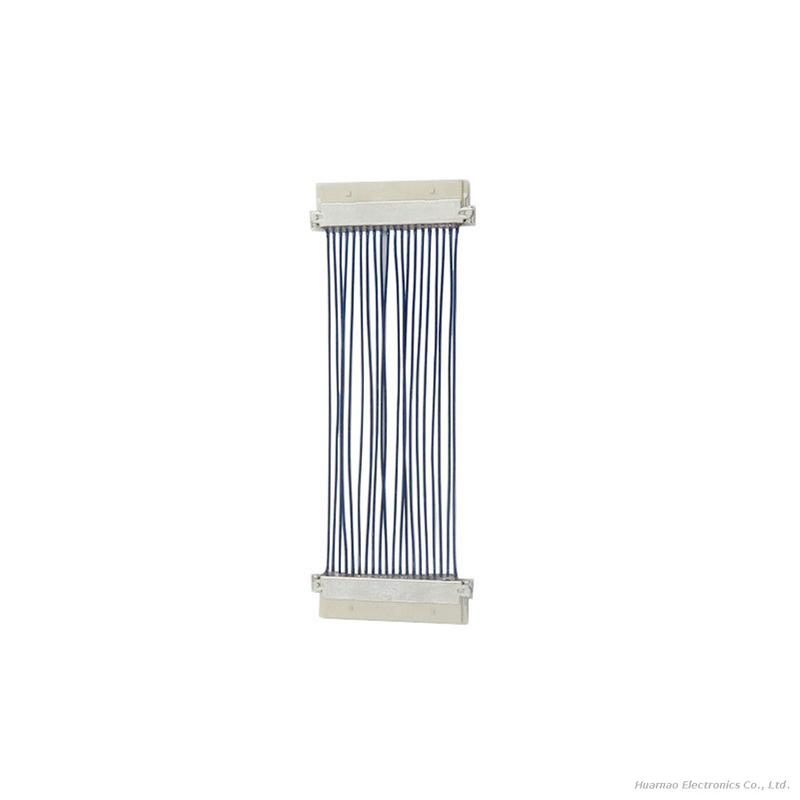

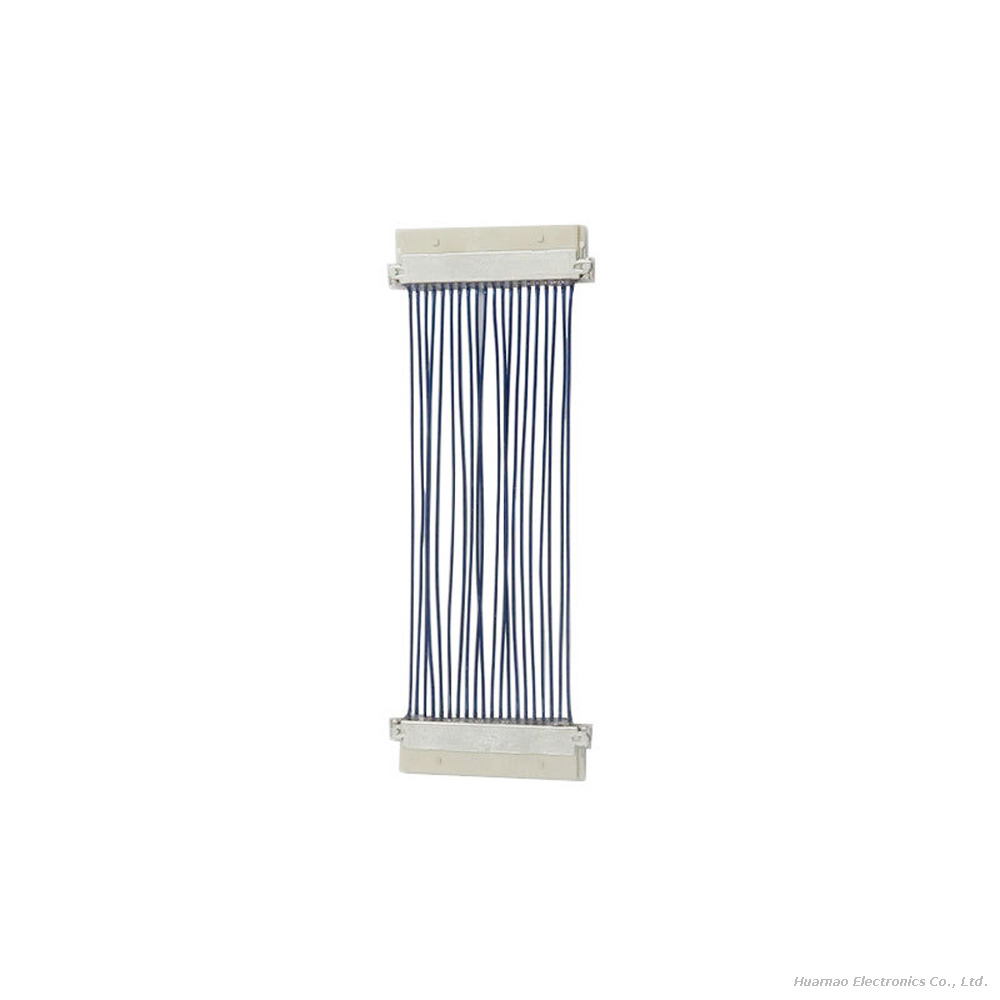

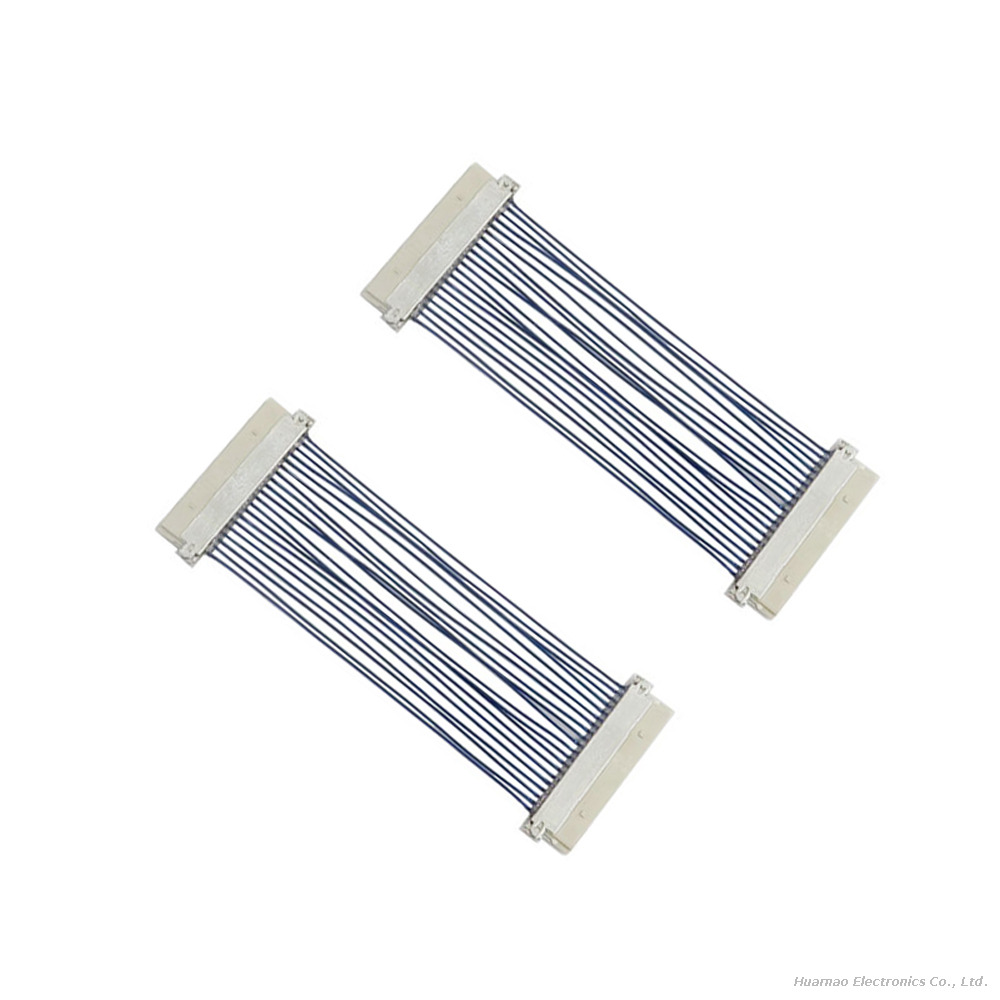

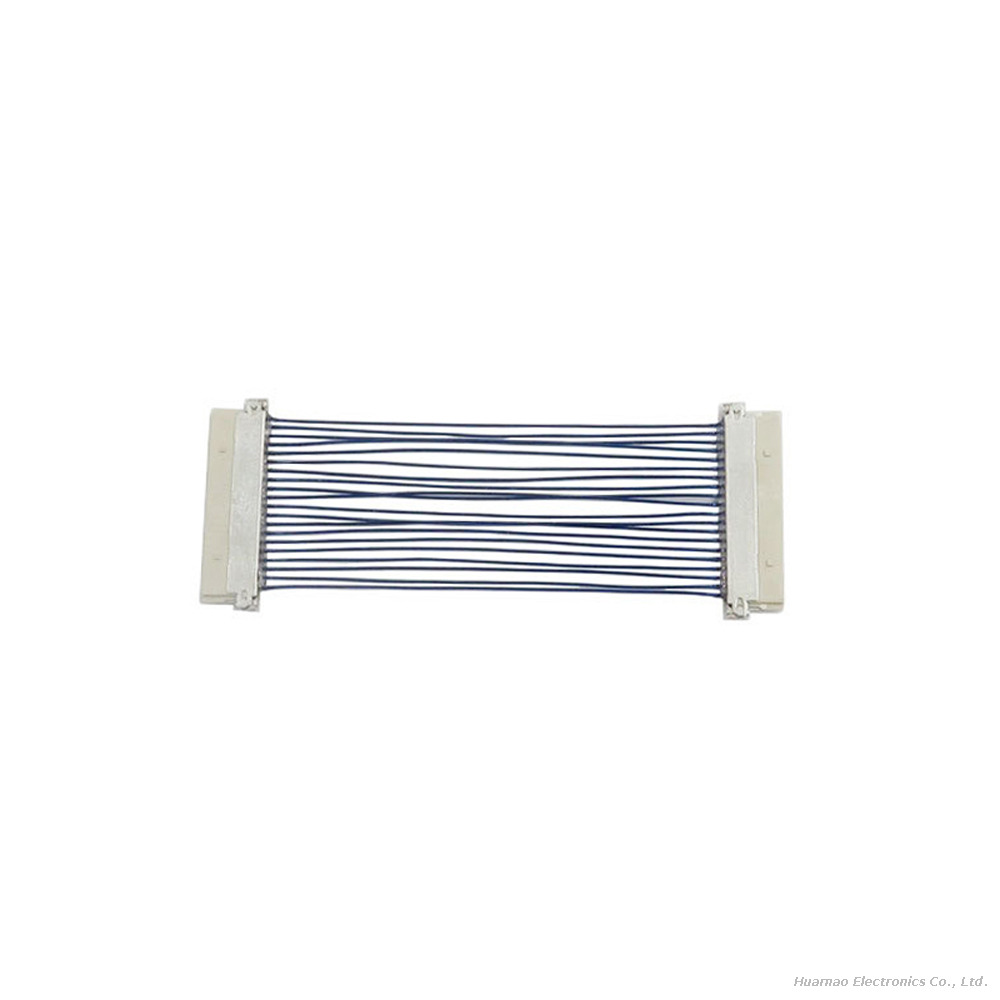

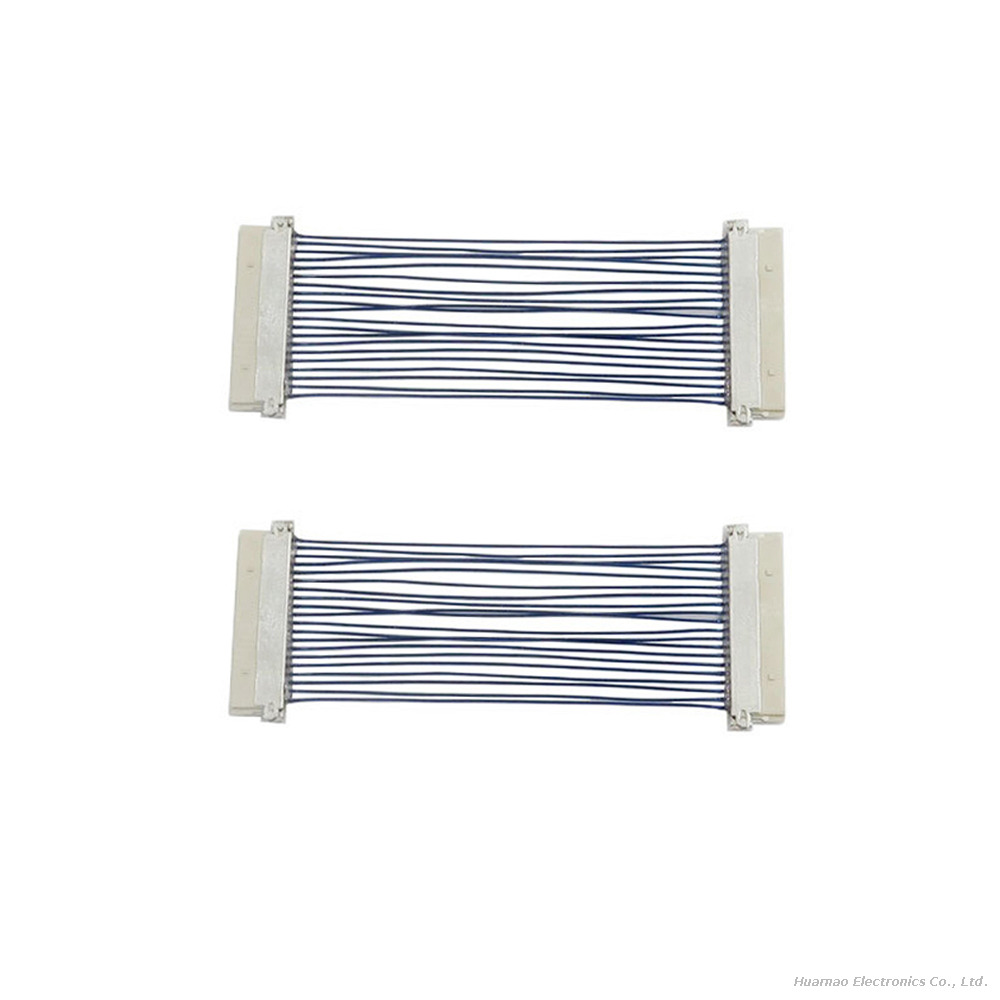

This HRS DF19G-20S-1SD(06) 1.0mm pitch 20Pin dual-end coaxial cable is a high-performance signal transmission harness designed for compact high-resolution displays and electronic modules. Featuring the original HRS DF19G-20S-1SD(06) connector with a 1.0mm fine pitch and 20-pin dual-end configuration, it provides reliable, low-noise high-speed signal transmission for display and imaging applications.
HRS DF19G-20S-1SD(06) Standard ConnectorAdopts original HRS DF19G-20S-1SD(06) connector with a precise 1.0mm pitch and 20-pin layout. The low-profile design is ideal for high-density display interfaces, with a secure locking mechanism to ensure stable connections even in vibration-prone environments.
1.0mm Fine Pitch for Compact & Slim DesignsThe 1.0mm fine pitch connector and ultra-thin coaxial wires enable compact footprint connections, making it perfect for LCD/OLED displays, camera modules, and portable devices where space is limited. It allows for neat, high-density routing without compromising signal quality.
Low-Loss Coaxial Wires for High-Speed LVDS SignalsConstructed with high-quality ultra-fine coaxial cables, this harness ensures excellent impedance matching and low signal attenuation. It supports high-resolution LVDS signal transmission, minimizing electromagnetic interference and ensuring clear, stable display output.
Dual-End Configuration for Direct Board-to-Board ConnectionsWith the same HRS DF19G-20S-1SD(06) connector on both ends, this cable enables direct board-to-board or module-to-module connections. It eliminates the need for adapters, simplifying integration and reducing signal loss in display and imaging systems.

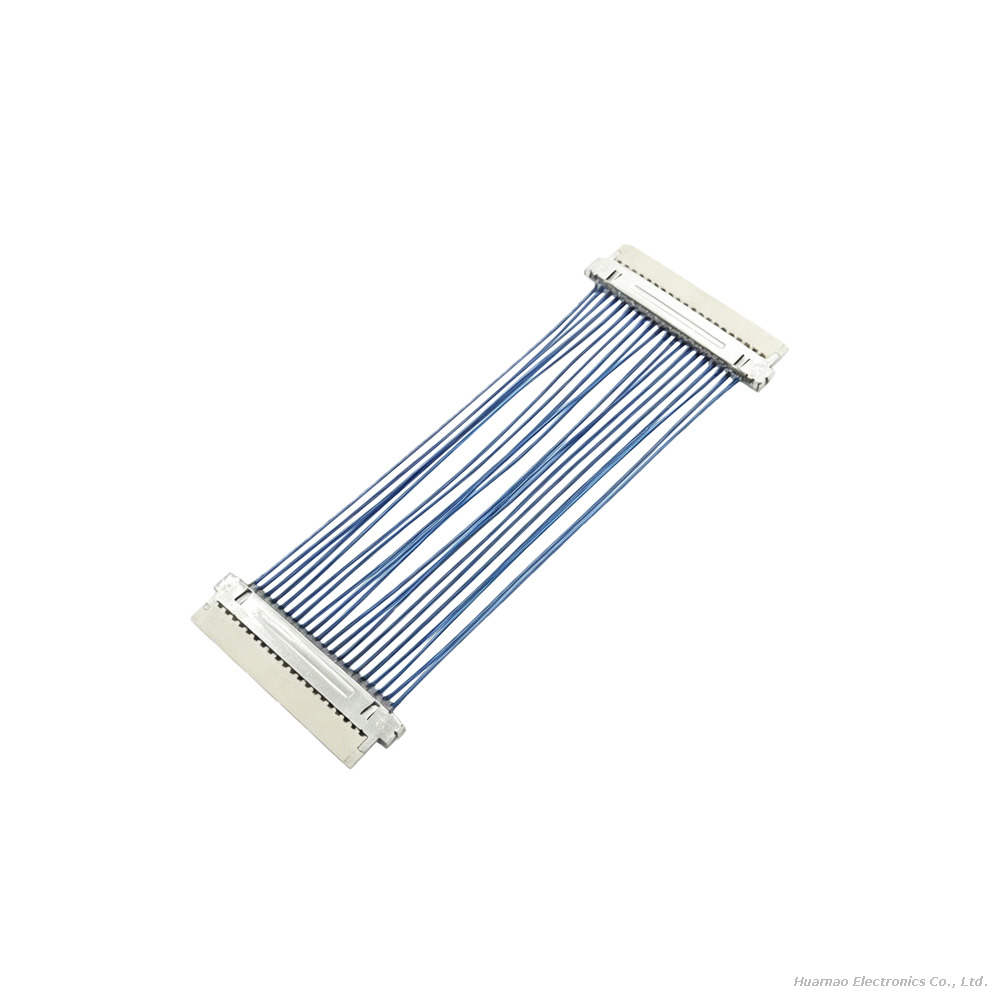

Durable & Reliable ConstructionThe cable features a blue insulated coaxial design for enhanced durability and signal integrity. Reinforced strain relief at the connector ends prevents wire breakage, improving the harness’s reliability in repeated use and vibration-prone applications.
Whether you’re assembling display modules, repairing industrial equipment, or designing compact slim products, this HRS DF19G-20S-1SD(06) 1.0mm pitch 20Pin dual-end coaxial cable offers a reliable, high-speed, and space-saving solution for your signal transmission needs.
