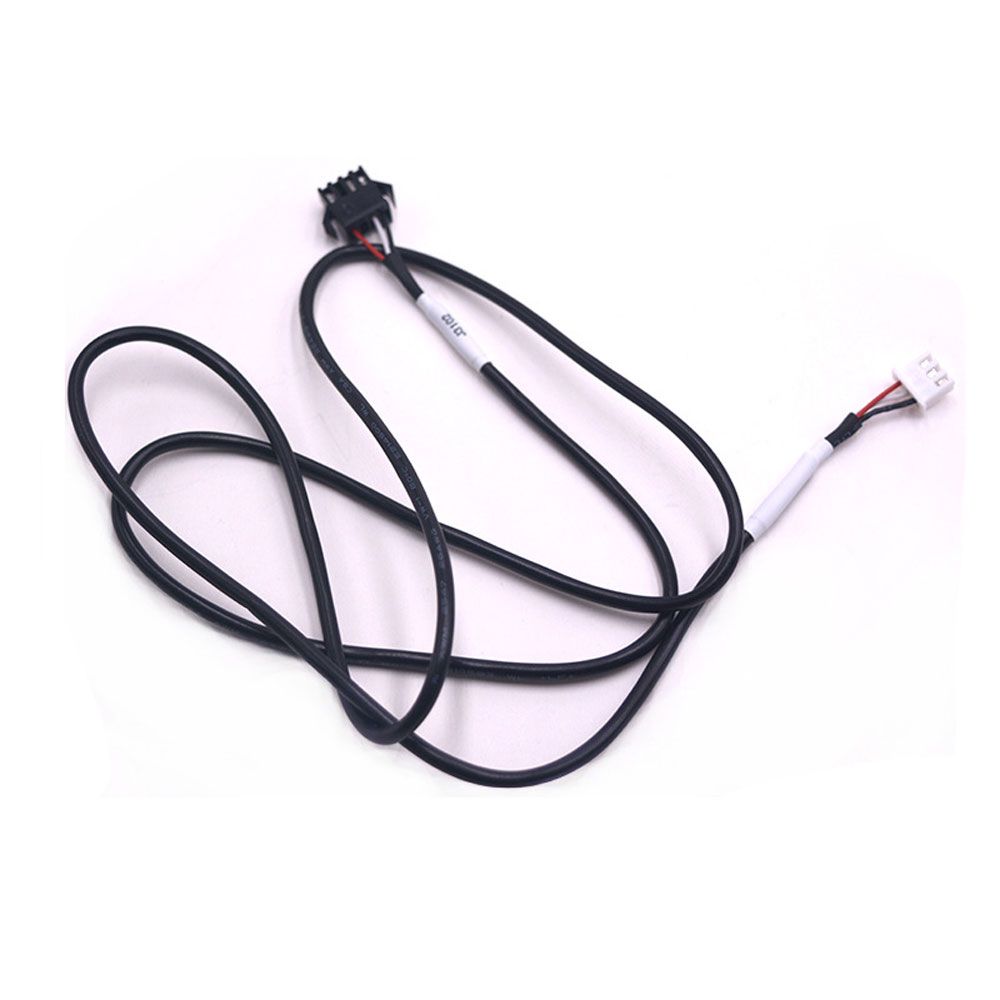

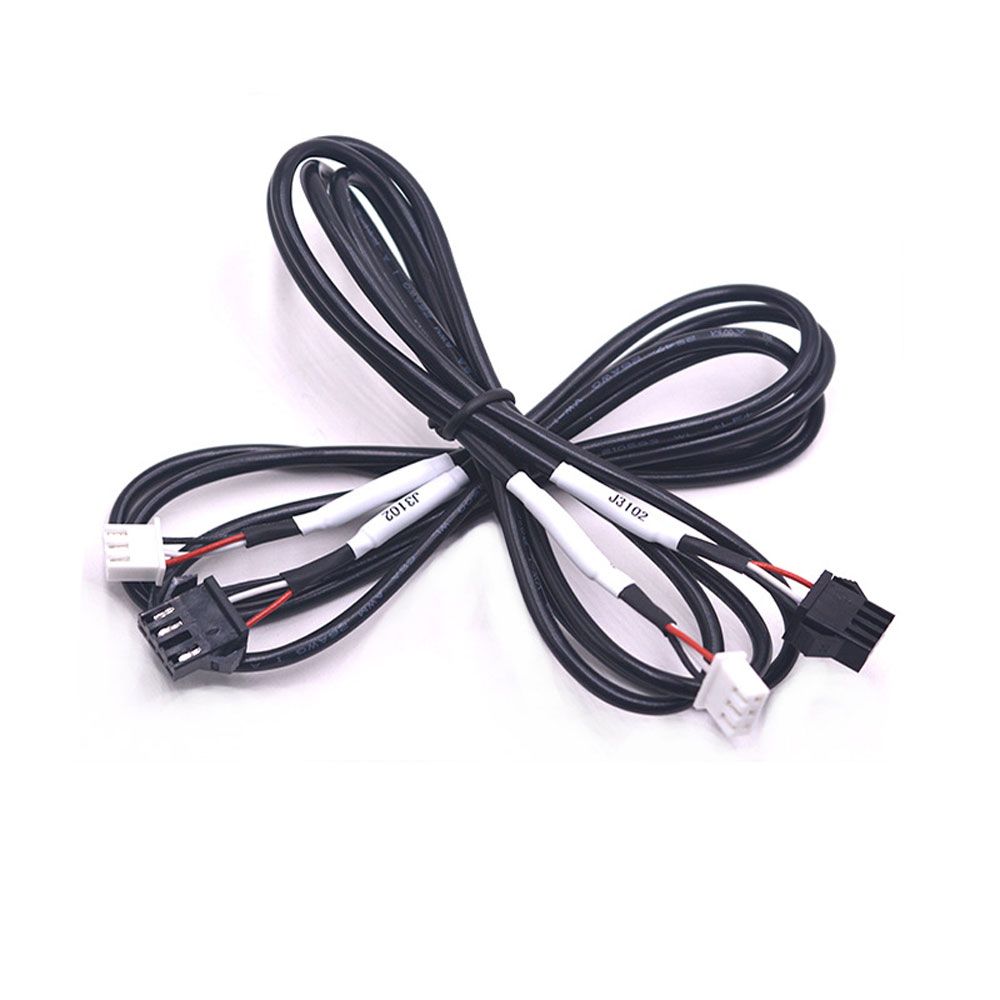

This 3-core shielded connecting wire is built for reliable signal and power transmission. It combines an Xh2.5-13p terminal with an Sm2.54-14p connector. The structure supports low-voltage device communication in compact systems requiring stable performance.
The shielded design reduces electromagnetic interference. It ensures clean signals in medical and control panel wiring. This is critical in sensitive applications like diagnostic tools or physiotherapy accessories.
This wire harness assembly suits medical cable integration in compact devices. It works well in home-use medical equipment and portable healthcare systems. The plug-and-play connectors allow quick installation and replacement.
This product meets RoHS2 compliance, making it a safe choice for global medical device manufacturing. It supports both AC and DC circuits, with a rated voltage of 250V and current of 3A.
If you're sourcing a medical wire harness for physiotherapy accessory assembly, this model delivers consistent performance. It also fits low-voltage wiring harness assembly in consumer electronics and compact industrial devices.
As a trusted wire harness manufacturer, we offer OEM customization, including wire length, insulation material, and packaging. The cable suits AWG #22 to #30 wire sizes and supports PCB applications with 1.6 mm thickness.
Whether you need a medical equipment wire harness or a shielded cable for industrial control, this connector wire ensures secure fit and stable contact. The pressure-contact design ensures long-term durability, even in devices with frequent movement.
This model is often chosen for medical wire harness assembly projects requiring compact connectors and signal reliability. It is also popular among manufacturers of diagnostic systems and wearable medical monitors.
| Parameter | Value |
|---|---|
| Product Name | 3-Core Shielded Xh2.5-13p Terminal Wire Sm2.54-14p Connecting Wire |
| Product Model | HM10859A |
| Brand | Huamao Electronics |
| Rated Current | 3A AC/DC (AWG #22) |
| Rated Voltage | 250V AC/DC |
| Temperature Range | -25°C to +85°C |
| Contact Resistance (Initial) | Max 10 mΩ |
| Contact Resistance (After Test) | Max 20 mΩ |
| Insulation Resistance | Min 1,000 MΩ |
| Dielectric Withstanding Voltage | 1000VAC for 1 minute |
| Supported Wire Size | AWG #30 to #22 |
| Connector Pitch | 2.5 mm |
| Connector Type | XH2.5 13P and SM2.54 14P |
| Connector Category | Crimp style, wire-to-board |
| PCB Thickness Compatibility | 1.6 mm |
| RoHS Compliance | RoHS2 |
| MOQ | 50 pcs |
| Sample Lead Time | 3–7 working days |
| Production Lead Time | 15 working days |
| Payment Options | T/T, PayPal, Credit Card |
| Packaging | Standard or custom export box |
| Shipping Method | DHL, UPS, FedEx, air, or sea |
| Origin | Dongguan, Guangdong, China |
Product Profile
| Series | XH connector (High box type) |
| Category | Crimp Style Connectors (Wire-to-Board type) |
| Type | Crimp style, High-box type Disconnectable type |
If you're looking for a medical cable supplier or a custom wire harness manufacturer for healthcare or low-voltage systems, this cable is a reliable option. Contact us now for tailored wire harness assembly solutions.
The 3-core shielded Xh2.5-13p to Sm2.54-14p connecting wire is designed for compact electronic assemblies requiring stable signal transmission and reliable power delivery. It is widely used in medical devices, consumer electronics, and physiotherapy systems. Below are key features and application scenarios that highlight its versatility and performance.
This connecting wire includes a full shielding layer around the core wires. It minimizes electromagnetic interference (EMI) in environments with high signal activity. This makes it ideal for medical applications, where signal clarity is crucial. For instance, in diagnostic monitors or physiotherapy control units, a shielded cable ensures accurate readings and reliable data transmission.
If you're looking for a shielded wire harness for medical equipment, this model offers strong protection against signal disruption. It helps maintain consistent performance in both clinical and home-use environments.
This product combines an Xh2.5-13p terminal with an Sm2.54-14p plug. The connector pairing supports stable wire-to-board connections for compact devices. It is widely used in medical wire harness assembly for portable diagnostic systems and wearable therapy devices.
These standard connectors are compatible with many control boards. If you need a plug-and-play medical cable for small electronics, this wire simplifies installation and reduces assembly time.
The three-core cable uses stranded copper conductors, which offer high flexibility and low resistance. This structure supports repeated bending and movement, making it suitable for mobile medical equipment and physiotherapy accessories. The insulation is available in PVC or halogen-free materials, depending on safety requirements.
This is especially useful in physiotherapy accessory assemblies that require frequent contact and replacement. It supports long-term use without insulation cracking or signal loss.
This connecting wire supports full customization, including length, conductor size, insulation color, and packaging. It fits OEM medical cable assembly requirements where space, routing, and voltage must meet strict design constraints.
If you're sourcing a wire harness manufacturer for healthcare devices, this cable offers the flexibility needed for various medical equipment wire harness builds. It integrates easily into existing device platforms.
Thanks to its slim profile and 2.5 mm pitch, this cable fits into small enclosures without crowding other components. It is frequently used in embedded systems, handheld monitors, and smart home control panels.
If you're developing a low-voltage wire harness for compact electronics, this cable supports both data and power lines in limited space. The shielded design ensures clean signal delivery even in multi-function control boards.
This cable is a preferred choice for medical equipment wire harness and physiotherapy accessory cable projects. It is also used in consumer electronics like smart beds, home therapy tools, and compact health monitoring equipment.
Whether you need a medical wire harness for a diagnostic monitor or a connecting wire for a therapy device, this product delivers consistent electrical and mechanical performance. It supports low-voltage operation up to 250V and ensures safe, efficient connectivity in demanding environments.
Q1: What devices are compatible with Xh2.5 and Sm2.54 connector cables?
A1: These connector cables are widely used in compact devices like medical monitors, physiotherapy machines, smart home systems, and diagnostic control panels. You can install them in any device that supports 2.5 mm and 2.54 mm pitch connectors for low-voltage signal or power transmission.
Q2: Can I use this 3-core shielded wire in a medical application?
A2: Yes, the cable is suitable for many medical applications. It is often used in medical wire harnesses for devices such as patient monitors, therapy systems, and portable diagnostic tools. The shielded design helps maintain stable signal quality in sensitive environments.
Q3: Is this connecting wire suitable for custom wire harness assembly?
A3: Absolutely. You can integrate this wire into custom wire harness assemblies. It supports modifications in length, insulation material, and connector configuration to match specific OEM requirements, especially in medical or consumer electronics projects.
Q4: What are the benefits of using shielded terminal wires in control systems?
A4: Shielded terminal wires help reduce electromagnetic interference, which improves signal stability in control systems. They are ideal for use in environments with motors, wireless devices, or other electronics that may cause signal noise.
Q5: Can I replace existing wire harnesses with this Xh2.5 to Sm2.54 cable?
A5: Yes, this cable is often used as a replacement in existing systems. It is compatible with many standard connector types and can be used to upgrade or maintain older medical and electronic devices without major design changes.
Q6: How can I ensure proper installation of this connector wire?
A6: Make sure the connectors match your board’s pin headers. Align the Xh2.5 and Sm2.54 connectors correctly before insertion. No soldering is needed, and the plug-and-play format simplifies installation in OEM production or field servicing.
Q7: Is this cable appropriate for wearable or portable medical devices?
A7: Yes, the flexible structure and compact connector sizes make it well-suited for wearable medical devices. It offers stable signal transmission in devices that require movement, such as portable therapy tools or mobile health monitors.
