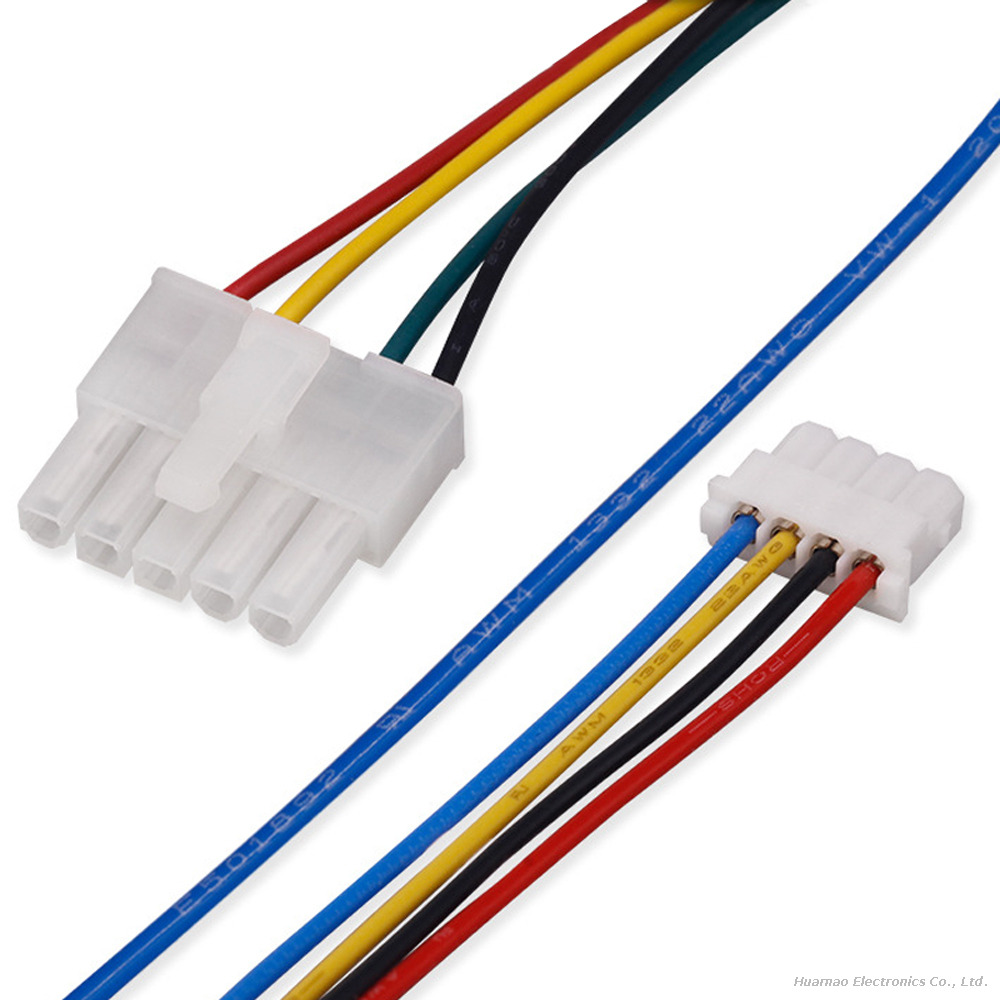

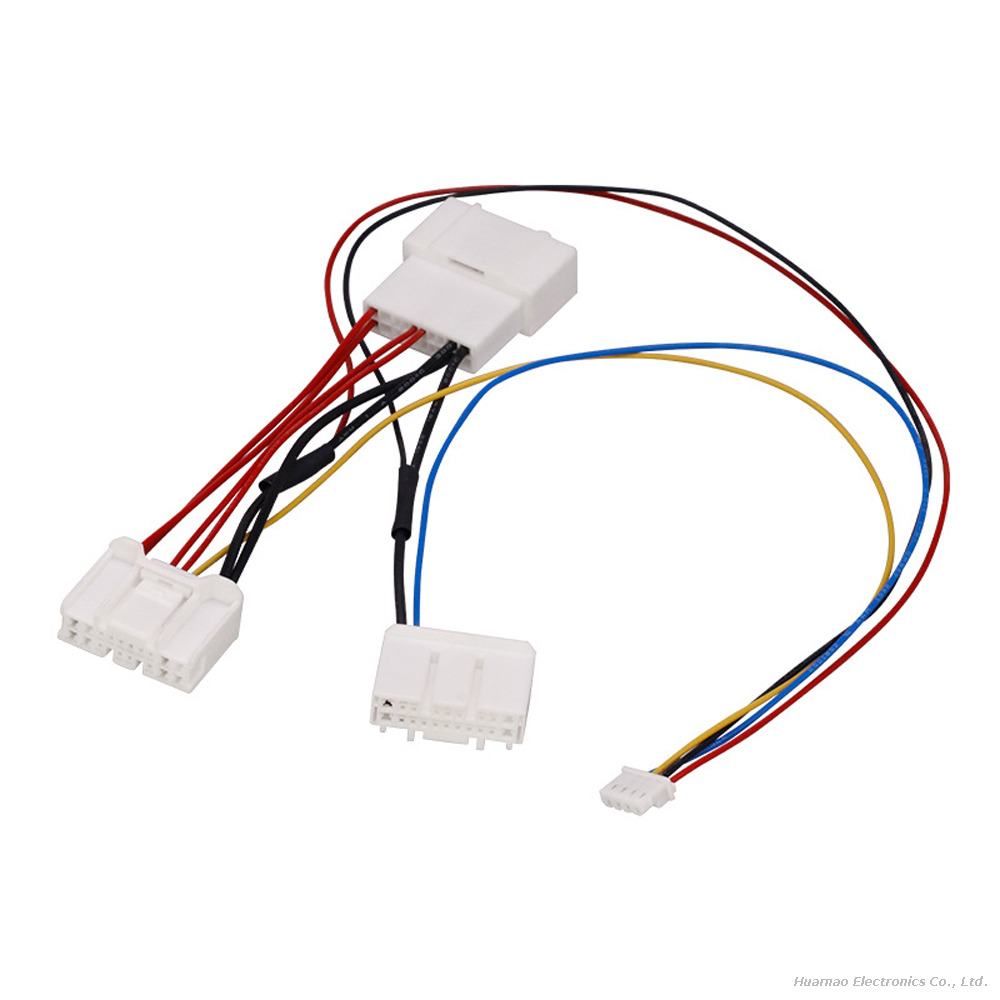

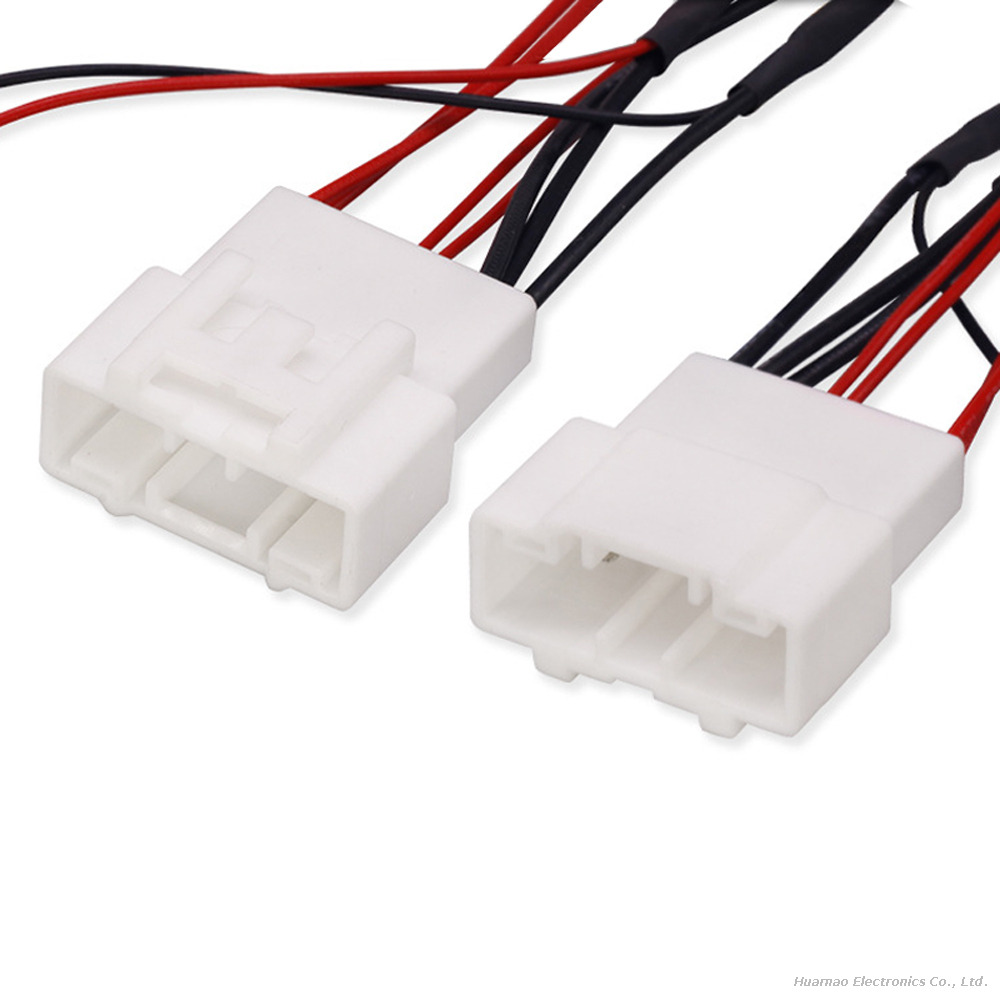

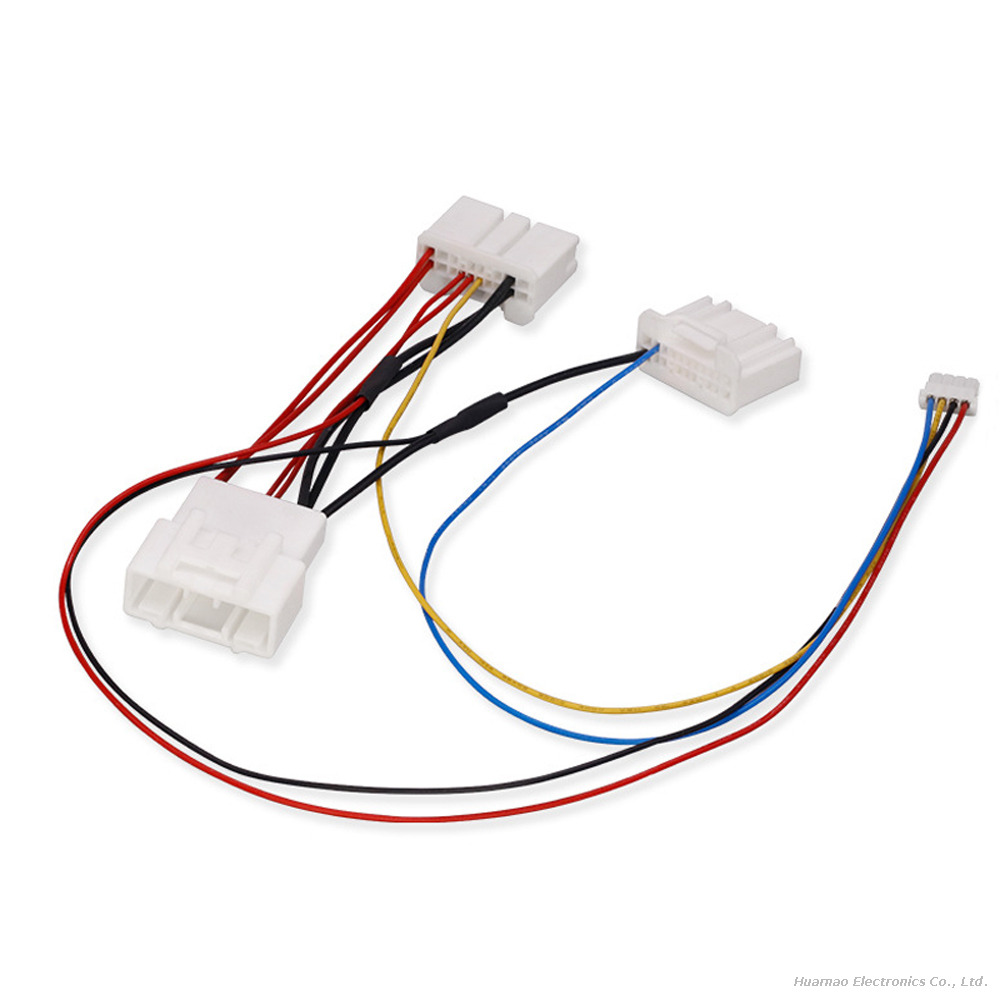

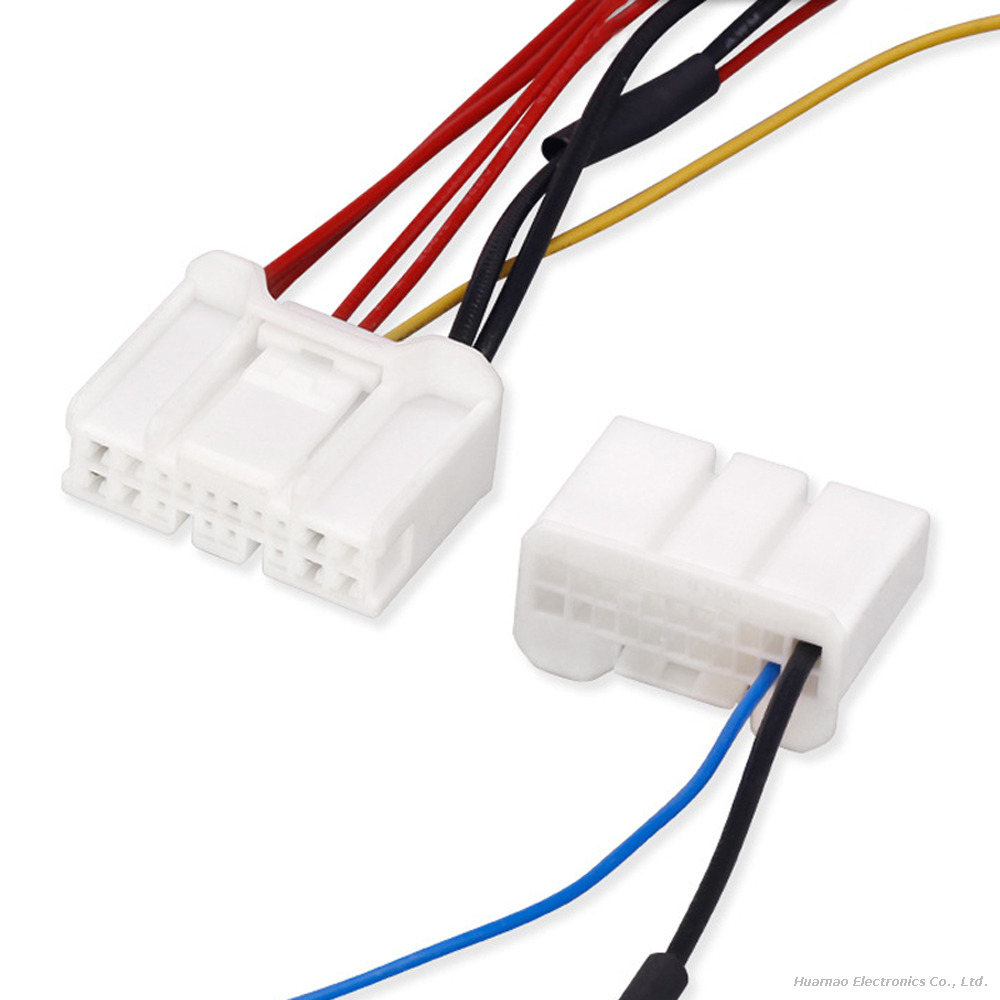

This high-reliability automotive wire harness features the industry-standard 5557 series 4.2mm pitch plug connector and 182-0.7-1.5-11/182-0.7-1.5-21 high-flexibility wires, specifically engineered for new energy vehicle (NEV) applications. It delivers stable power distribution and signal transmission between critical components like battery management systems (BMS), inverters, on-board chargers (OBC), and control modules, ensuring safe and efficient operation in high-vibration, temperature-fluctuating environments.
Key Advantages
NEV-Specific DesignOptimized for high-voltage/low-current and low-voltage/high-current applications in electric vehicles, hybrid electric vehicles, and fuel cell vehicles, with insulation designed to withstand voltage spikes and electromagnetic interference (EMI).
Superior Vibration ResistanceAdvanced crimping technology and secure 5557 connector locking mechanism ensure reliable connections even under extreme road conditions and motor vibrations common in NEVs.
High Flexibility & Durability182-strand ultra-fine copper wire construction provides exceptional flexibility for tight routing spaces in battery packs and powertrain compartments, with bend cycles exceeding 10,000 times.
Enhanced Safety FeaturesHalogen-free flame-retardant insulation meets strict NEV safety standards, reducing fire risk in case of electrical faults, while polarization design prevents reverse connection damage.
Efficient Power TransmissionOxygen-free copper conductors minimize power loss (≤5% at rated current), improving overall energy efficiency for extended driving range in electric vehicles.
Applications
Battery Management System (BMS) communication and power connections
On-Board Charger (OBC) to battery pack wiring
Inverter and motor controller signal transmission
DC-DC converter power distribution
Vehicle control unit (VCU) to sensor wiring
High-voltage interlock loop (HVIL) systems
Thermal management system control circuits
Quality Assurance & Customization
100% electrical continuity, insulation resistance, and high-potential testing before shipment
Customizable wire lengths (15cm–300cm), pin configurations, and wire colors for color-coded identification
Waterproof and dustproof options available for harsh environment applications
High-precision crimping process ensures pull-out force ≥100N per terminal
Compatibility with Molex 5557/5569 series connectors for seamless system integration
Traceability system for full product lifecycle management (raw material to final assembly)
Why Choose This Wire Harness for NEVs?
The 182-0.7-1.5-11/182-0.7-1.5-21 wire harness with 5557 connector combines robust construction with NEV-specific design features, addressing the unique challenges of electric vehicle electrical systems. Its high flexibility, vibration resistance, and safety compliance make it an ideal choice for automotive engineers seeking reliable interconnect solutions that meet the stringent performance and safety requirements of modern new energy vehicles.
